Height Adjustable Work Tables Dyna-Lift® Hydraulic Lifting Systems for Work Surfaces and Equipment



Ergonomic, height-adjustable workbenches and adjustable height work table are quickly becoming the standard in industry. And as more people demand height-adjustability, Ergonomic Partners has the ability to deliver it. But it doesn't stop there. Ergonomic Partners provides Dyna-Lift® lifting systems. Systems are available with capabilities ranging anywhere from a few hundred pounds to 1,500 pounds.

In addition to work tables, the Dyna-Lift® adjustable lifting cylinders can be integrated with other common applications including hospital beds, therapy tables, laboratory workstations, office furniture, adjustable kitchen counters, adjustable podiums, computer workstations, food processing stations, clean room workstations, aluminum extrusion workstations, assembly line fixtures, rehabilitation tables, and many other industrial applications. Ergonomic Partners has worked on adjustable height systems for many light and heavy industrial and medical applications, including a successful project to help Boeing make the production of airplane wings height-adjustable for workers.

Ergonomic Partners can help you improve worker safety, reduce worker compensation issues and vastly enhance your material handling capabilities. Good ergonomics improves productivity by providing workers with greater safety, comfort and access to their tasks.

Dyna-Lift® Benefits

• OEM and Retrofit Kits Install Quickly
• Improve Productivity
• Increase Comfort
• Reduce Worker Compensation Claims
• Comply with ADA & OSHA guidelines
• Smooth and Quiet Operation
• Units Shipped Fully Charged and Ready To Install
• Quick Ship Program Available



Dyna-Lift® System Kits from 250 to 1,500 pounds

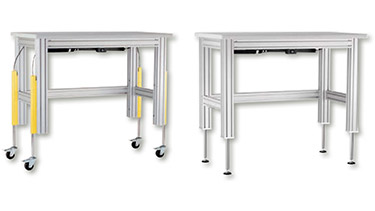

Quickly convert a fixed height table or workbench to a lift table with a 0-16 inch range of height adjustment. How many times have you wanted to quickly adjust a work surface on an industrial workbench for better access and comfort? Your wishes can now come true after installing a Dyna-Lift® system. Adjustable lift tables/systems for industrial workbenches provide ergonomic workstations for worker safety and comfort.

• Complete and Ready-To-Install Height Adjustable Ergonomic Workstations
• Choose from 1-6 Cylinders
• 750 pound max capacity on a 3-post system
• 250 or 375 pound capacity per leg on a 4-post system
• 1,000 pound max capacity on 4, 5 or 6-post systems (2,500 psi burst/max - 625 psi nominal)
• Manual or Electric Operation
• Manual operation is 5 cranks per inch of lift
• Flexible tubing with a 1 inch minimum bend radius
• Standard Hose lengths: (2) 60", (2) 96"-custom lengths available (3/16" OD)
• No reservoir. Fluid is maintained in the pump piston area.
• Retractable Handle (manual systems only)
• Exposed acuator rods are steel with zinc plating
• Custom options available such as stainless steel rod ends and footings
• 1,000 pound kit offers 0-16 inch height adjustment range
• Uses Colorless, Odorless, Non-Staining, Non-Toxic hydraulic Fluid
• Smooth quiet operation

Ergonomic engineers recommend varying angles of height adjustability to improve productivity, minimize fatigue and reduce the chance of injury.

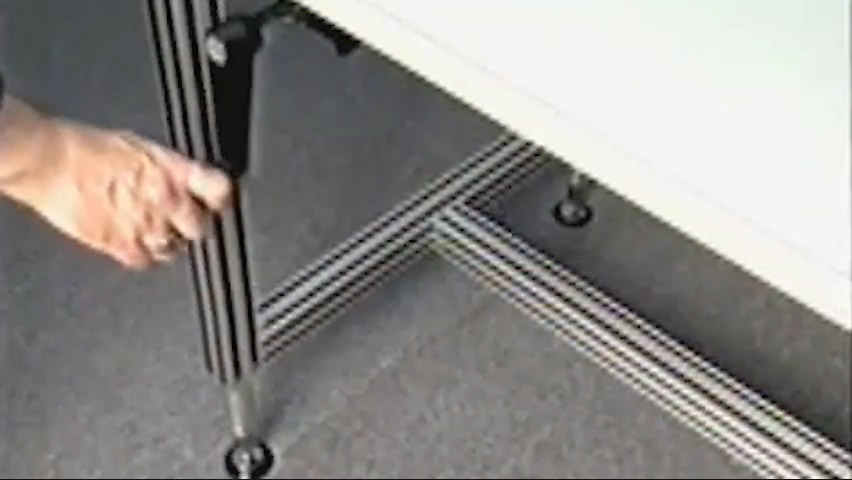

The adjustment of Dyna-Lift® to various heights is as simple as turning a crank handle for manual installations and pressing a button for electric ones.

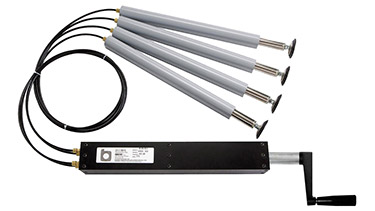

4 Post Dyna-Lift Systems: Manual (1,000 lbs. capacity)

Part number	Description	Capacity	Pricing
4M-D1A-06-S	4 Post Manual System (6" Stroke)	1,000 lbs.	Click for Pricing
4M-D1A-08-S	4 Post Manual System (8" Stroke)	1,000 lbs.	Click for Pricing
4M-D1A-10-S	4 Post Manual System (10" Stroke)	1,000 lbs.	Click for Pricing
4M-D1A-12-S	4 Post Manual System (12" Stroke)	1,000 lbs.	Click for Pricing
4M-D1A-14-S	4 Post Manual System (14" Stroke)	1,000 lbs.	Click for Pricing
4M-D1A-16-S	4 Post Manual System (16" Stroke)	1,000 lbs.	Click for Pricing



4 Post Dyna-Lift Systems: Electric (1,000 lbs. capacity)

Part number	Description	Capacity	Pricing
4E-D1A-06-S	4 Post Electric System (6" Stroke)	1,000 lbs.	Click for Pricing
4E-D1A-08-S	4 Post Electric System (8" Stroke)	1,000 lbs.	Click for Pricing
4E-D1A-10-S	4 Post Electric System (10" Stroke)	1,000 lbs.	Click for Pricing
4E-D1A-12-S	4 Post Electric System (12" Stroke)	1,000 lbs.	Click for Pricing
4E-D1A-14-S	4 Post Electric System (14" Stroke)	1,000 lbs.	Click for Pricing
4E-D1A-16-S	4 Post Electric System (16" Stroke)	1,000 lbs.	Click for Pricing



4 Post Dyna-Lift Systems: Manual (1,000 lbs. capacity) with Stainless Steel Rod/Adapter/Glide

Part number	Description	Capacity	Pricing
4M-D1F-06-S	4 Post Manual System (6" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4M-D1F-08-S	4 Post Manual System (8" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4M-D1F-10-S	4 Post Manual System (10" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4M-D1F-12-S	4 Post Manual System (12" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4M-D1F-14-S	4 Post Manual System (14" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4M-D1F-16-S	4 Post Manual System (16" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing



4 Post Dyna-Lift Systems: Electric (1,000 lbs. capacity) with Stainless Steel Rod/Adapter/Glide

Part number	Description	Capacity	Pricing
4E-D1F-06-S	4 Post Electric System (6" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4E-D1F-08-S	4 Post Electric System (8" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4E-D1F-10-S	4 Post Electric System (10" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4E-D1F-12-S	4 Post Electric System (12" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4E-D1F-14-S	4 Post Electric System (14" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing
4E-D1F-16-S	4 Post Electric System (16" Stroke) with Stainless Steel Rod/Adapter/Glide	1,000 lbs.	Click for Pricing



4 Post Dyna-Lift Heavy Duty Systems: Manual (1,500 lbs. capacity)

Part number	Description	Capacity	Pricing
4M-D1D-06-H	4 Post Manual System (6" Stroke)	1,500 lbs.	Click for Pricing
4M-D1D-08-H	4 Post Manual System (8" Stroke)	1,500 lbs.	Click for Pricing
4M-D1D-10-H	4 Post Manual System (10" Stroke)	1,500 lbs.	Click for Pricing
4M-D1D-12-H	4 Post Manual System (12" Stroke)	1,500 lbs.	Click for Pricing
4M-D1D-20-H	4 Post Manual System (20" Stroke)	1,500 lbs.	Click for Pricing



4 Post Dyna-Lift Heavy Duty Systems: Electric (1,500 lbs. capacity)

Part number	Description	Capacity	Pricing
4E-D1D-06-H	4 Post Electric System (6" Stroke)	1,500 lbs.	Click for Pricing
4E-D1D-08-H	4 Post Electric System (8" Stroke)	1,500 lbs.	Click for Pricing
4E-D1D-10-H	4 Post Electric System (10" Stroke)	1,500 lbs.	Click for Pricing
4E-D1D-12-H	4 Post Electric System (12" Stroke)	1,500 lbs.	Click for Pricing
4M-D1D-20-H	4 Post Manual System (20" Stroke)	1,500 lbs.	Click for Pricing



4 Post Dyna-Lift Heavy Duty Systems: Manual (1,500 lbs. capacity) with Stainless Steel Rod/Adapter/Glide

Part number	Description	Capacity	Pricing
4M-D1G-06-H	4 Post Manual System (6" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing
4M-D1G-08-H	4 Post Manual System (8" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing
4M-D1G-10-H	4 Post Manual System (10" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing
4M-D1G-12-H	4 Post Manual System (12" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing
4M-D1G-20-H	4 Post Manual System (20" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing



4 Post Dyna-Lift Heavy Duty Systems: Electric (1,500 lbs. capacity) with Stainless Steel Rod/Adapter/Glide

Part number	Description	Capacity	Pricing
4E-D1G-06-H	4 Post Electric System (6" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing
4E-D1G-08-H	4 Post Electric System (8" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing
4E-D1G-10-H	4 Post Electric System (10" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing
4E-D1G-12-H	4 Post Electric System (12" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing
4M-D1G-20-H	4 Post Manual System (20" Stroke) with Stainless Steel Rod/Adapter/Glide	1,500 lbs.	Click for Pricing



Telescoping Leg Assembly (TLA) 500 lbs capacity

The Telescopic Leg Assembly (TLA) is specifically designed to provide optimum form and function for industry specific ergonomic height adjustable needs.

The two piece anodized aluminum extrusions were engineered to work in tandem with each other to provide smooth, quiet, rigid height adjustability for tables regardless of off-center or cantilever loads.

The TLA allows Original Equipment Manufacturers to easily integrate the columns into custom applications. Simply bolt on your top and bottom frame with cross member, then add your table top.

The TLA offers the perfect height adjustable solution for your ergonomic OEM design!

Technical Data

• Materials: extruded aluminum with clear matte anodized finish
• Adjustment range:
  • 12" (305 mm)
  • 24" (610 mm) full retracted
  • 36" (914 mm) fully extended
• Capacity: 250 lbs per column and 500 lbs per set of 2 columns
• Multiple columns available
• Designed to be used with B1C cylinders
• Manual (hand crank) or electric actuation

The adjustment of the new Telescoping Leg Assembly (TLA) is as easy as turning a crank handle for manual installations to pressing a button for electric actuations.

We welcome the opportunity to solve your height adjustable ergonomic system/hydraulic requirements with the performance and quality that made Dyna-Lift® a world leader in delivering hydraulic system solutions.

Please contact Ergonomic Partners today for assistance with your Dyna-Lift® applications.



Ergonomic Partners services, Missouri, Illinois, Indiana, Kansas, Tennessee, Kentucky, Iowa, and Oklahoma.
