Conductix Insul-8 Push Button Pendants for Overhead Cranes

Insul-8 Series 80 Pendant Station	Conductix Series 60 Push Button Station
Conductix Pistol Grip Hoist Pendant	Conductix Crane Pendant

Conductix Insul-8 has ergonomically designed push button pendants since the early 1990's. They offer dozens of standard configurations to meet the needs of industrial users. These modular push button units are assembled from stocked components, keeping the product competitively priced and ensuring quick deliveries. The experienced sales people at Ergonomic Partners are experts in the application of push button pendants to all kinds of industrial applications. The 80 and 60 Series each offers a ergonomic pistol grip style perfect for simple hoist applications.

Insul-8 Series 80 Pendant Station

The ergonomically designed 80 series pendant station can accommodate from 2 to 12 buttons; or up to 24 buttons in a duplex configuration. The pendant can be used indoors or outdoors.

Pendant Features:

Compact, high impact enclosure
Rated NEMA 4X.
Split case for easy field wiring
Neoprene booted buttons; rated at 5 amps (120 volts) configured for 1,2, or 3 speed
UL and CSA Listing
Temperature Range: 5 to 160 degrees F (-15 to 70 degrees C)
Shock Resistance: 100 g

The Conductix 80 Series is available in 50 different pre-configured set-ups. With several dozen switch options, such as pilot lights, selector switches, key switches, emergency mushroom stop buttons, potentiometers, alternating/toggle switches, you could engineer your own custom system.

Available Accessories: pre-wired pendants, deep-back covers, hangers; collars, jumpers, button legend sheets and quick disconnects.

Standard Pendant Stations	Part Number	Description	Price
2-Button	XA-34213	80 Series Pendant, with Maintained On/Off Switches	Click for Pricing
	XA-34214	80 Series Pendant, with (2) Single-Speed Switches	Click for Pricing
	XA-34215	80 Series Pendant, with (2) Two-Speed Switches	Click for Pricing
	XA-34216	80 Series Pendant, with (2) Three-Speed Switches	Click for Pricing
4-Button	XA-34217	80 Series Pendant, with (2) Single-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34218	80 Series Pendant, with (2) Single-Speed and Maintained On/Off Switches	Click for Pricing
	XA-34219	80 Series Pendant, with (2) Two-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34220	80 Series Pendant, with (2) Two-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34221	80 Series Pendant, with (2) Three-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34222	80 Series Pendant, with (2) Three-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34223	80 Series Pendant, with (4) Single-Speed Switches	Click for Pricing
	XA-34224	80 Series Pendant, with (4) Two-Speed Switches	Click for Pricing
	XA-34225	80 Series Pendant, with (4) Three-Speed Switches	Click for Pricing
6-Button	XA-34226	80 Series Pendant, with (4) Single-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34227	80 Series Pendant, with (4) Single-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34228	80 Series Pendant, with (4) Two-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34229	80 Series Pendant, with (4) Two-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34230	80 Series Pendant, with (4) Three-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34231	80 Series Pendant, with (4) Three-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34232	80 Series Pendant, with (6) Single-Speed Switches	Click for Pricing
	XA-34233	80 Series Pendant, with (6) Two-Speed Switches	Click for Pricing
	XA-34234	80 Series Pendant, with (6) Three-Speed Switches	Click for Pricing
8-Button	XA-34235	80 Series Pendant, with (6) Single-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34236	80 Series Pendant, with (6) Single-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34237	80 Series Pendant, with (6) Two-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34238	80 Series Pendant, with (6) Two-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34239	80 Series Pendant, with (6) Three-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34240	80 Series Pendant, with (3) Three-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34241	80 Series Pendant, with (8) Single-Speed Switches	Click for Pricing
	XA-34242	80 Series Pendant, with (8) Two-Speed Switches	Click for Pricing
	XA-34243	80 Series Pendant, with (8) Three-Speed Switches	Click for Pricing
10-Button	XA-34244	80 Series Pendant, with (8) Single-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34245	80 Series Pendant, with (8) Single-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34246	80 Series Pendant, with (8) Two-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34247	80 Series Pendant, with (8) Two-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34248	80 Series Pendant, with (8) Three-Speed Switches and Momentary On-Off Switches	Click for Pricing
	XA-34249	80 Series Pendant, with (8) Three-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34250	80 Series Pendant, with (10) Single-Speed Switches	Click for Pricing
	XA-34251	80 Series Pendant, with (10) Two-Speed Switches	Click for Pricing
	XA-34252	80 Series Pendant, with (10) Three-Speed Switches	Click for Pricing
12-Button	XA-34253	80 Series Pendant, with (10) Single-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34254	80 Series Pendant, with (10) Single-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34255	80 Series Pendant, with (10) Two-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34256	80 Series Pendant, with (10) Two-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34257	80 Series Pendant, with (10) Three-Speed Switches and Momentary On/Off Switches	Click for Pricing
	XA-34258	80 Series Pendant, with (10) Three-Speed Switches and Maintained On/Off Switches	Click for Pricing
	XA-34259	80 Series Pendant, with (12) Single-Speed Switches	Click for Pricing
	XA-34260	80 Series Pendant, with (12) Two-Speed Switches	Click for Pricing
	XA-34261	80 Series Pendant, with (12) Three-Speed Switches	Click for Pricing

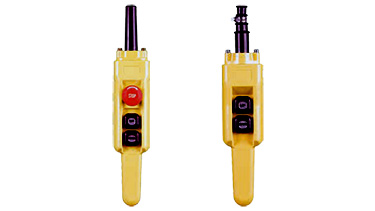

80 Series Pistol Grip Pendants

The Conductix-Wampfler 80 Series Pistol Grip Pendants feature a compact, ergonomic design with the operator’s comfort in mind. They are available with 1, 2, or 3 speed buttons. It is equipped to accommodate either internal or extermal strain relief cable.

Features:

High impact, yellow ABS enclosure
Multi-diameter cable bushing inlet
Rated NEMA 4 (IP65); indoor or outdoor use

Standard Pendant Stations	Part Number	Description	Price
2-Button	XA-COB81PB	80 Series Pistol Grip Pendant, with (2) Single-Speed Switches	Click for Pricing
	XA-COB81P	80 Series Pistol Grip Pendant, with (2) Two-Speed Switches	Click for Pricing
	XA-COB81PC	80 Series Pistol Grip Pendant, with (2) Three-Speed Switches	Click for Pricing
3-Button	XA-COB81.5PB	80 Series Pistol Grip Pendant, with (2) Single-Speed Switches and Emergency Stop Button	Click for Pricing
	XA-COB81.5P	80 Series Pistol Grip Pendant, with (2) Two-Speed Switches and Emergency Stop Button	Click for Pricing
	XA-COB81.5PC	80 Series Pistol Grip Pendant, with (2) Three-Speed Switches and Emergency Stop Button	Click for Pricing

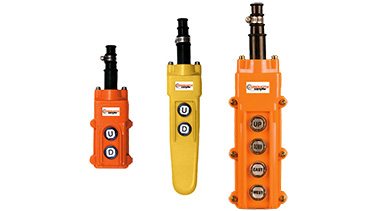

Conductix Series 60 Push Button Pendants

The economical 60 Series Crane Pendants will accommodate either two or four buttons and can be operated with one hand. The pistol grip hoist pendant is designed less than 2" wide, 10 oz. And has a yellow ABS enclosure.

Pendant Features:

Compact, impact-resistant orange plastic enclosure
Rated NEMA 4X
Internal rubber seals around switches
Single-speed buttons rated at 5 amps (120 volts)
C-UL Listing
Temperature Range: 5 to 160 degrees F (-15 to 70 degrees C)
Shock Resistance: 100 g

Standard Pendant Stations	Part Number	Description	Price
Pistol Grip 2-Button	XA-34211	60 Series Pendant, with (2) Single-Speed Switches	Click for Pricing
2-Button	XA-COB61	60 Series Pendant, with (2) Single-Speed Switches	Click for Pricing
4-Button	XA-COB62	60 Series Pendant, with (4) Single-Speed Switches	Click for Pricing

Pre-Wired Units Available:
Ergonomic Partners can arrange for your pendant to be pre-wired. Let our experienced staff help you with your pendant needs. You can e-mail us or call us at 314-884-8884.

Ergonomic Partners provides Conductix Insul 8 Crane Pendants to Missouri, Illinois, Indiana, Kansas, Tennessee, Nebraska, Kentucky, Iowa, and Oklahoma.
