Crane Anti-Collision System ReFlex, Laser Guard and Duct-O-Wire Optic Sensor



Crane Anti-Collision devices can be set up to slow down and stop overhead cranes when traveling towards another crane or structure. These devices not only used to protect the expensive material handling equipment in your plant, but it also protects your operators. If operators are traveling in cab operated cranes, tying this device to audible alarm then and slowing down their crane can prevent devastating accidents.

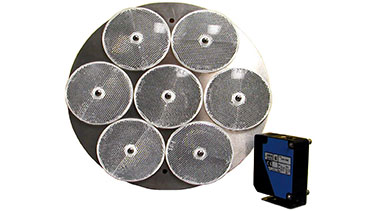

Duct-O-Wire CAS-1RA and CAS-1RA-O Single Event Option Laser

This system allows LED reflective sensing up to 33 feet for crane to crane separation and end stop anti-collision. These are some of our most popular kits, and come with the sensor unit, reflector array, mounting bracket, and 24 to 240 VAC. If you have energy efficient fluorescent lighting or metal halide you will need the CAS-1RA-O option for the LED to function correctly.

Part Number	Description	Price
Complete Duct-O-Wire Crane Anti-Collision Kits
CAS-1RA	Single Event LED Optic Sensor Crane Anti-Collision Kit	Click for Pricing
CAS-1RA-O	Single Event LED Optic Sensor Crane Anti-Collision Kit for Metal Halide Installs	Click for Pricing
CAS-2L100	Two Event Optical Laser Crane Anti-Collision Kit	Click for Pricing
CAS-2LA10	Two Event Optical Laser Crane Anti-Collision Kit With Programmable Analog Distance Sensing Output	Click for Pricing



Magnetek ReFlx® Crane Anti-Collision Systems

The ReFlx® 120 and ReFlx® 120 Plus utilizes a solid state control board in a small easy to mount enclosure. These systems can be used on single speed, stepped controlled, and VFD style cranes. The ReFlx 120 system has a two channel infrared sensor adjustable from 2 to 120 feet. The two channel sensor can be set up multiple ways, but typically the first channel is used as the primary stop, while the second channel is used as the redundant stop. The Reflx 120 Plus comes with a second single channel to be used as the redundant stop, while the first two channels are then used to sound an audible alarm and as a primary stop. The Plus also gives you a more finite stopping distance of 1.5 feet to 120 feet

Typical Kits include the following:

• Two-Channel Sensor
• Controller
• Diamond Reflective Target (2 foot x 2 foot)
• Optional additional single channel sensor for the Plus



Part Number	Description	Price
REFLX120	Magnetek ReFlx 120 Crane Anti-Collision System	Click for Pricing
REFLX120PLUS	Magnetek ReFlx 120 "Plus" Crane Anti-Collision System	Click for Pricing



Electromotive LaserGuard Collision Avoidance System

Consisting of self-monitoring optical lasers to keep track of your crane, this is the most technologically advanced system in the industry. It has the ability to consistently manage crane to crane and wall to crane applications.

Features Include:

• Optical Laser continually monitors crane position so primary signaling is not affected by electrical noise.
• Can be installed with 3 programmable control zones: Alarm, Slow Down and Stop
• Range from 10 feet to 150 feet
• Laser can acquire a target under any lighting conditions
• Dynamically protected as laser faults if target is lost.
• Military spec, shock mounted circuit board
• Class 1 laser meets OSHA 6 environmental regulations. Essentially, if you look at the laser, it won't hurt your eyes.



Part Number	Description	Price
14KWR31SRNSVS	Magnetek LaserGuard Crane Anti-Collision System for Indoor 110 or 220 VAC Cranes	Click for Pricing
14KWR32SRNSVS	Magnetek LaserGuard Crane Anti-Collision System for Indoor 250 VDC Cranes	Click for Pricing
14KWR33SRNSVS	Magnetek LaserGuard Crane Anti-Collision System for Indoor 10-40 VDC Cranes	Click for Pricing



Contact Ergonomic Partners and let them help engineer a system that is right for you.



Ergonomic Partners is a distributor for Magnetek and Duct-O-Wire Crane Anti-Collision devices in Missouri, Illinois, Indiana, Kansas, Tennessee, Kentucky, Iowa, and Oklahoma.
