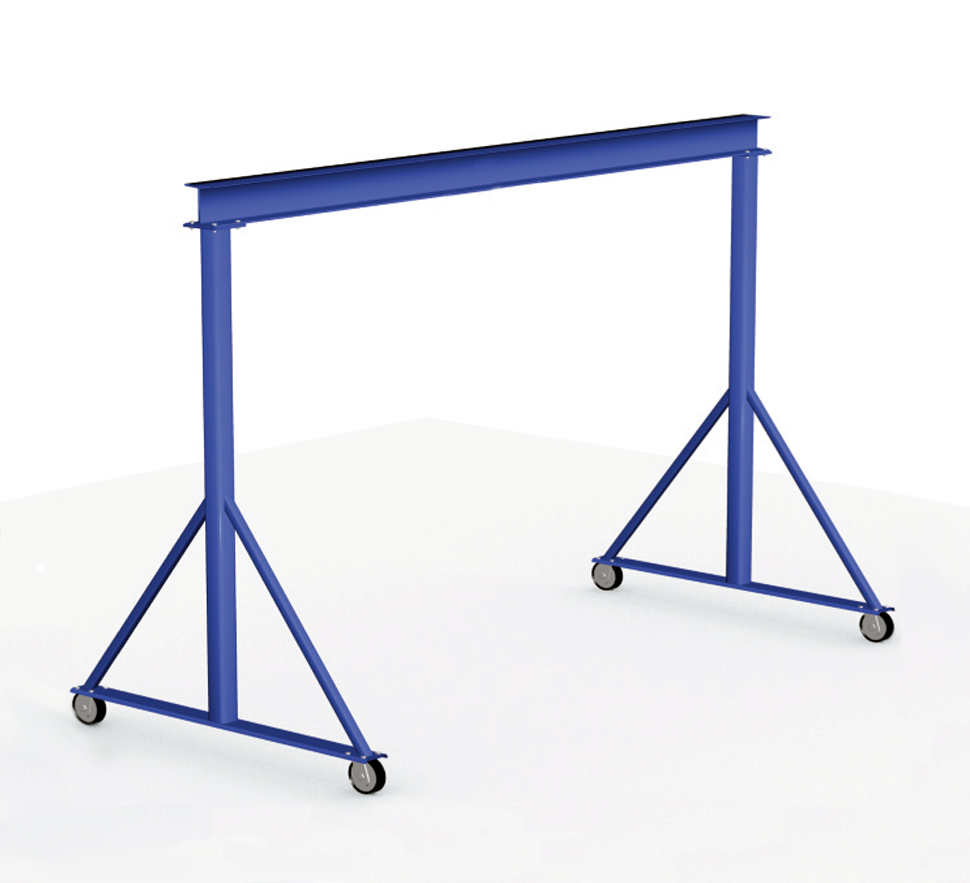

Fixed Height Portable Gantry Cranes by Gorbel®
Gorbel® has the fixed height protable gantry crane for your application. Gantry cranes are a easy and economical way to lift materials anywhere in your facility. Gorbel's heavy duty end frame design with square tubing uprights, knee braces, and channel base provides stable lifting and movement.
Features and Benefits:
- Available in capacities up to 5 ton and spans up to 30 feet.
- Square tubing uprights, knee braces, and channel base provide for stable lifting and movement
- Bolted beam to upright connection ensures safety
- Molded phenolic casters are standard and provide for easy movement
- Phenolic wheel
Options and Accessories:
- Phenolic casters with brake (standard on 1 ton only)
- Floor protecting urethane casters with or without brake
- Four position bolt-on swivel locks
- Steel v-groove rigid body casters without brake
- End stops
- Fixed length v-groove track
Gorbel Portable Fixed Height Gantry Cranes Models and Technical Specifications
| STANDARD BOOM DATA |
 |
Boom
Height
(W) |
Beam Size |
Flange
Width
(in) |
| 6" |
S6 @ 12.5#/ft. |
3-3/8" |
| 8" |
W8 @ 18#/ft. |
5-1/4" |
| 10" |
S10 @ 25.4#/ft. |
4-5/8" |
| 12" |
S12 @ 31.8#/ft. |
5" |
| 16" |
W16 @ 45#/ft. |
7" |
| 18" |
W18 @ 50#/ft. |
7-1/2" |
| 21" |
W21 @ 62#/ft. |
8-1/4" |
| 24" |
W24 @ 84#/ft. |
9" |
| 27" |
W27 @ 114#/ft. |
10" |
Gorbel 1-Ton Fixed Height Portable Gantry Cranes
Cap.
in
Tons |
Fixed
H.U.B.
(B) |
Span
(A) |
Model No. |
O.A.H.
(C) |
Clear Span
(D) |
I-Beam
Depth
(W) |
Tread
(E) |
Shipping
Weight
(lbs) |
Price |
| 1-Ton |
10' |
8' |
FG-1-10-8 |
10' 6" |
6' 11-1/4" |
6" |
78" |
517 |
Click for pricing |
| 12' |
8' |
FG-1-12-8 |
12' 6" |
6' 11-1/4" |
6" |
78" |
544 |
Click for pricing |
| 15' |
8' |
FG-1-15-8 |
15' 6" |
6' 11-1/4" |
6" |
78" |
676 |
Click for pricing |
| 20' |
8' |
FG-1-20-8 |
20' 6" |
6' 10-1/4" |
6" |
78" |
770 |
Click for pricing |
| 10' |
10' |
FG-1-10-10 |
10' 6" |
8' 11-1/4" |
6" |
78" |
542 |
Click for pricing |
| 12' |
10' |
FG-1-12-10 |
12' 6" |
8' 11-1/4" |
6" |
78" |
569 |
Click for pricing |
| 15' |
10' |
FG-1-15-10 |
15' 6" |
8' 11-1/4" |
6" |
78" |
701 |
Click for pricing |
| 20' |
10' |
FG-1-20-10 |
20' 6" |
8' 10-1/4" |
6" |
78" |
795 |
Click for pricing |
| 10' |
12' |
FG-1-10-12 |
10' 6" |
10' 11-1/4" |
6" |
78" |
587 |
Click for pricing |
| 12' |
12' |
FG-1-12-12 |
12' 6" |
10' 11-1/4" |
6" |
78" |
614 |
Click for pricing |
| 15' |
12' |
FG-1-15-12 |
15' 6" |
10' 11-1/4" |
6" |
78" |
746 |
Click for pricing |
| 20' |
12' |
FG-1-20-12 |
20' 6" |
10' 10-1/4" |
6" |
78" |
840 |
Click for pricing |
| 10' |
15' |
FG-1-10-15 |
10' 7" |
13' 11-1/4" |
7" |
78" |
666 |
Click for pricing |
| 12' |
15' |
FG-1-12-15 |
12' 7" |
13' 11-1/4" |
7" |
78" |
694 |
Click for pricing |
| 15' |
15' |
FG-1-15-15 |
15' 7" |
13' 11-1/4" |
7" |
78" |
825 |
Click for pricing |
| 20' |
15' |
FG-1-20-15 |
20' 7" |
13' 10-1/4" |
7" |
78" |
920 |
Click for pricing |
| 10' |
20' |
FG-1-10-20 |
10' 10" |
18' 11-1/4" |
10" |
78" |
945 |
Click for pricing |
| 12' |
20' |
FG-1-12-20 |
12' 10" |
18' 11-1/4" |
10" |
78" |
972 |
Click for pricing |
| 15' |
20' |
FG-1-15-20 |
15' 10" |
18' 11-1/4" |
10" |
78" |
1104 |
Click for pricing |
| 20' |
20' |
FG-1-20-20 |
20' 10" |
18' 8-1/4" |
10" |
78" |
1207 |
Click for pricing |
| 10' |
25' |
FG-1-10-25 |
11' 0" |
23' 9-1/4" |
12" |
78" |
1257 |
Click for pricing |
| 12' |
25' |
FG-1-12-25 |
13' 0" |
23' 9-1/4" |
12" |
78" |
1284 |
Click for pricing |
| 15' |
25' |
FG-1-15-25 |
16' 0" |
23' 9-1/4" |
12" |
78" |
1416 |
Click for pricing |
| 20' |
25' |
FG-1-20-25 |
21' 0" |
23' 8-1/4" |
12" |
78" |
1514 |
Click for pricing |
| 10' |
30' |
FG-1-10-30 |
11' 4" |
28' 9-1/4" |
16" |
78" |
1816 |
Click for pricing |
| 12' |
30' |
FG-1-12-30 |
13' 4" |
28' 9-1/4" |
16" |
78" |
1843 |
Click for pricing |
| 15' |
30' |
FG-1-15-30 |
16' 4" |
29' 1/4" |
16" |
78" |
1957 |
Click for pricing |
| 20' |
30' |
FG-1-20-30 |
21' 4" |
28' 8-1/4" |
16" |
78" |
2069 |
Click for pricing |
The model number designates the capacity, fixed height under boom, and overall span.
* Molded phenolic casters with a steel core are standard. |
Gorbel 2-Ton Fixed Height Portable Gantry Cranes
Cap.
in
Tons |
Fixed
H.U.B.
(B) |
Span
(A) |
Model No. |
O.A.H.
(C) |
Clear Span
(D) |
I-Beam
Depth
(W) |
Tread
(E) |
Shipping
Weight
(lbs) |
Price |
| 2-Ton |
10' |
8' |
FG-2-10-8 |
10' 8" |
6' 11-1/4" |
8" |
78" |
564 |
Click for pricing |
| 12' |
8' |
FG-2-12-8 |
12' 8" |
6' 11-1/4" |
8" |
78" |
591 |
Click for pricing |
| 15' |
8' |
FG-2-15-8 |
15' 8" |
6' 10-1/4" |
8" |
78" |
723 |
Click for pricing |
| 20' |
8' |
FG-2-20-8 |
20' 8" |
6' 7-1/4" |
8" |
78" |
1060 |
Click for pricing |
| 10' |
10' |
FG-2-10-10 |
10' 8" |
8' 11-1/4" |
8" |
78" |
601 |
Click for pricing |
| 12' |
10' |
FG-2-12-10 |
12' 8" |
8' 11-1/4" |
8" |
78" |
628 |
Click for pricing |
| 15' |
10' |
FG-2-15-10 |
15' 8" |
8' 10-1/4" |
8" |
78" |
760 |
Click for pricing |
| 20' |
10' |
FG-2-20-10 |
20' 8" |
8' 7-1/4" |
8" |
78" |
1097 |
Click for pricing |
| 10' |
12' |
FG-2-10-12 |
10' 8" |
10' 11-1/4" |
8" |
78" |
657 |
Click for pricing |
| 12' |
12' |
FG-2-12-12 |
12' 8" |
10' 11-1/4" |
8" |
78" |
685 |
Click for pricing |
| 15' |
12' |
FG-2-15-12 |
15' 8" |
10' 10-1/4" |
8" |
78" |
817 |
Click for pricing |
| 20' |
12' |
FG-2-20-12 |
20' 8" |
10' 7-1/4" |
8" |
78" |
1154 |
Click for pricing |
| 10' |
15' |
FG-2-10-15 |
10' 10" |
13' 11-1/4" |
10" |
78" |
818 |
Click for pricing |
| 12' |
15' |
FG-2-12-15 |
12' 10" |
13' 11-1/4" |
10" |
78" |
845 |
Click for pricing |
| 15' |
15' |
FG-2-15-15 |
15' 10" |
13' 10-1/4" |
10" |
78" |
977 |
Click for pricing |
| 20' |
15' |
FG-2-20-15 |
20' 10" |
13' 7-1/4" |
10" |
78" |
1314 |
Click for pricing |
| 10' |
20' |
FG-2-10-20 |
11' 0" |
18' 9-1/4" |
12" |
78" |
1078 |
Click for pricing |
| 12' |
20' |
FG-2-12-20 |
13' 0" |
18' 9-1/4" |
12" |
78" |
1105 |
Click for pricing |
| 15' |
20' |
FG-2-15-20 |
16' 0" |
18' 8-1/4" |
12" |
78" |
1237 |
Click for pricing |
| 20' |
20' |
FG-2-20-20 |
21' 0" |
18' 7-1/4" |
12" |
78" |
1575 |
Click for pricing |
| 10' |
25' |
FG-2-10-25 |
11' 4" |
23' 9-1/4" |
16" |
78" |
1623 |
Click for pricing |
| 12' |
25' |
FG-2-12-25 |
13' 4" |
23' 9-1/4" |
16" |
78" |
1679 |
Click for pricing |
| 15' |
25' |
FG-2-15-25 |
16' 4" |
23' 8-1/4" |
16" |
78" |
1808 |
Click for pricing |
| 20' |
25' |
FG-2-20-25 |
21' 4" |
23' 7-1/4" |
16" |
78" |
1859 |
Click for pricing |
| 10' |
30' |
FG-2-10-30 |
12' 0" |
28' 9-1/4" |
24" |
78" |
2986 |
Click for pricing |
| 12' |
30' |
FG-2-12-30 |
14' 0" |
28' 9-1/4" |
24" |
78" |
3013 |
Click for pricing |
| 15' |
30' |
FG-2-15-30 |
17' 0" |
28' 8-1/4" |
24" |
78" |
3145 |
Click for pricing |
| 20' |
30' |
FG-2-20-30 |
22' 0" |
28' 7-1/4" |
24" |
78" |
3479 |
Click for pricing |
The model number designates the capacity, fixed height under boom, and overall span.
* Molded phenolic casters with a steel core are standard. |
Gorbel 3-Ton Fixed Height Portable Gantry Cranes
Cap.
in
Tons |
Fixed
H.U.B.
(B) |
Span
(A) |
Model No. |
O.A.H.
(C) |
Clear Span
(D) |
I-Beam
Depth
(W) |
Tread
(E) |
Shipping
Weight
(lbs) |
Price |
| 3-Ton |
10' |
8' |
FG-3-10-8 |
10' 10" |
6' 7-1/4" |
10" |
78" |
740 |
Click for pricing |
| 12' |
8' |
FG-3-12-8 |
12' 10" |
6' 7-1/4" |
10" |
78" |
788 |
Click for pricing |
| 15' |
8' |
FG-3-15-8 |
15' 10" |
6' 7-1/4" |
10" |
78" |
982 |
Click for pricing |
| 20' |
8' |
FG-3-20-8 |
20' 10" |
6' 6-1/4" |
10" |
78" |
1296 |
Click for pricing |
| 10' |
10' |
FG-3-10-10 |
10' 10" |
8' 7-1/4" |
10" |
78" |
971 |
Click for pricing |
| 12' |
10' |
FG-3-12-10 |
12' 10" |
8' 7-1/4" |
10" |
78" |
839 |
Click for pricing |
| 15' |
10' |
FG-3-15-10 |
15' 10" |
8' 7-1/4" |
10" |
78" |
1033 |
Click for pricing |
| 20' |
10' |
FG-3-20-10 |
20' 10" |
8' 6-1/4" |
10" |
78" |
1347 |
Click for pricing |
| 10' |
12' |
FG-3-10-12 |
10' 10" |
10' 7-1/4" |
10" |
78" |
862 |
Click for pricing |
| 12' |
12' |
FG-3-12-12 |
12' 10" |
10' 7-1/4" |
10" |
78" |
909 |
Click for pricing |
| 15' |
12' |
FG-3-15-12 |
15' 10" |
10' 7-1/4" |
10" |
78" |
1104 |
Click for pricing |
| 20' |
12' |
FG-3-20-12 |
20' 10" |
10' 6-1/4" |
10" |
78" |
1418 |
Click for pricing |
| 10' |
15' |
FG-3-10-15 |
11" 0" |
13' 7-1/4" |
12" |
78" |
1034 |
Click for pricing |
| 12' |
15' |
FG-3-12-15 |
13" 0" |
13' 7-1/4" |
12" |
78" |
1082 |
Click for pricing |
| 15' |
15' |
FG-3-15-15 |
16' 0" |
13' 7-1/4" |
12" |
78" |
1276 |
Click for pricing |
| 20' |
15' |
FG-3-20-15 |
21' 0" |
13' 6-1/4" |
12" |
78" |
1590 |
Click for pricing |
| 10' |
20' |
FG-3-10-20 |
11' 4" |
18' 7-1/4" |
16" |
78" |
1459 |
Click for pricing |
| 12' |
20' |
FG-3-12-20 |
13' 4" |
18' 7-1/4" |
16" |
78" |
1507 |
Click for pricing |
| 15' |
20' |
FG-3-15-20 |
16' 4" |
18' 7-1/4" |
16" |
78" |
1691 |
Click for pricing |
| 20' |
20' |
FG-3-20-20 |
21' 4" |
18' 6-1/4" |
16" |
78" |
2013 |
Click for pricing |
| 10' |
25' |
FG-3-10-25 |
11' 6" |
23' 7-1/4" |
18" |
78" |
1833 |
Click for pricing |
| 12' |
25' |
FG-3-12-25 |
13' 6" |
23' 7-1/4" |
18" |
78" |
1930 |
Click for pricing |
| 15' |
25' |
FG-3-15-25 |
16' 6" |
23' 7-1/4" |
18" |
78" |
2107 |
Click for pricing |
| 20' |
25' |
FG-3-20-25 |
21' 6" |
23' 6-1/4" |
18" |
78" |
2387 |
Click for pricing |
| 10' |
30' |
FG-3-10-30 |
12' 0" |
28' 7-1/4" |
24" |
78" |
3099 |
Click for pricing |
| 12' |
30' |
FG-3-12-30 |
14' 0" |
28' 7-1/4" |
24" |
78" |
3147 |
Click for pricing |
| 15' |
30' |
FG-3-15-30 |
17' 0" |
29' 7-1/4" |
24" |
78" |
3236 |
Click for pricing |
| 20' |
30' |
FG-3-20-30 |
22' 0" |
28' 6-1/4" |
24" |
78" |
3653 |
Click for pricing |
The model number designates the capacity, fixed height under boom, and overall span.
* Molded phenolic casters with a steel core are standard. |
Gorbel 5-Ton Fixed Height Portable Gantry Cranes
Cap.
in
Tons |
Fixed
H.U.B.
(B) |
Span
(A) |
Model No. |
O.A.H.
(C) |
Clear Span
(D) |
I-Beam
Depth
(W) |
Tread
(E) |
Shipping
Weight
(lbs) |
Price |
| 5-Ton |
10' |
8' |
FG-5-10-8 |
11' 4" |
6' 7-1/4" |
16" |
78" |
1009 |
Click for pricing |
| 12' |
8' |
FG-5-12-8 |
13' 4" |
6' 6-1/4" |
16" |
78" |
1169 |
Click for pricing |
| 15' |
8' |
FG-5-15-8 |
16' 4" |
6' 6-1/4" |
16" |
78" |
1301 |
Click for pricing |
| 20' |
8' |
FG-5-20-8 |
21' 4" |
6' 4-1/4" |
16" |
78" |
1778 |
Click for pricing |
| 10' |
10' |
FG-5-10-10 |
11' 4" |
8' 7-1/4" |
16" |
78" |
1099 |
Click for pricing |
| 12' |
10' |
FG-5-12-10 |
13' 4" |
8' 6-1/4" |
16" |
78" |
1259 |
Click for pricing |
| 15' |
10' |
FG-5-15-10 |
16' 4" |
8' 6-1/4" |
16" |
78" |
1391 |
Click for pricing |
| 20' |
10' |
FG-5-20-10 |
21' 4" |
8' 4-1/4" |
16" |
78" |
1868 |
Click for pricing |
| 10' |
12' |
FG-5-10-12 |
11' 9" |
10' 7-1/4" |
21" |
78" |
1413 |
Click for pricing |
| 12' |
12' |
FG-5-12-12 |
13' 9" |
10' 6-1/4" |
21" |
78" |
1573 |
Click for pricing |
| 15' |
12' |
FG-5-15-12 |
16' 9" |
10' 6-1/4" |
21" |
78" |
1705 |
Click for pricing |
| 20' |
12' |
FG-5-20-12 |
21' 9" |
10' 4-1/4" |
21" |
78" |
2182 |
Click for pricing |
| 10' |
15' |
FG-5-10-15 |
12' 0" |
13' 7-1/4" |
24" |
78" |
1929 |
Click for pricing |
| 12' |
15' |
FG-5-12-15 |
14' 0" |
13' 6-1/4" |
24" |
78" |
2089 |
Click for pricing |
| 15' |
15' |
FG-5-15-15 |
17' 0" |
13' 6-1/4" |
24" |
78" |
2221 |
Click for pricing |
| 20' |
15' |
FG-5-20-15 |
22' 0" |
13' 4-1/4" |
24" |
78" |
2698 |
Click for pricing |
| 10' |
20' |
FG-5-10-20 |
12' 0" |
18' 7-1/4" |
24" |
78" |
2349 |
Click for pricing |
| 12' |
20' |
FG-5-12-20 |
14' 0" |
18' 6-1/4" |
24" |
78" |
2509 |
Click for pricing |
| 15' |
20' |
FG-5-15-20 |
17' 0" |
18' 6-1/4" |
24" |
78" |
2641 |
Click for pricing |
| 20' |
20' |
FG-5-20-20 |
22' 0" |
18' 4-1/4" |
24" |
78" |
3118 |
Click for pricing |
| 10' |
25' |
FG-5-10-25 |
12' 0" |
23' 7-1/4" |
27" |
78" |
3264 |
Click for pricing |
| 12' |
25' |
FG-5-12-25 |
14' 0" |
23' 6-1/4" |
27" |
78" |
3424 |
Click for pricing |
| 15' |
25' |
FG-5-15-25 |
17' 0" |
23' 6-1/4" |
27" |
78" |
3556 |
Click for pricing |
| 20' |
25' |
FG-5-20-25 |
22' 0" |
23' 4-1/4" |
27" |
78" |
4033 |
Click for pricing |
| 10' |
30' |
FG-5-10-30 |
12' 0" |
28' 7-1/4" |
27" |
78" |
3779 |
Click for pricing |
| 12' |
30' |
FG-5-12-30 |
14' 0" |
28' 6-1/4" |
27" |
78" |
3939 |
Click for pricing |
| 15' |
30' |
FG-5-15-30 |
17' 0" |
29' 6-1/4" |
27" |
78" |
4071 |
Click for pricing |
| 20' |
30' |
FG-5-20-30 |
22' 0" |
28' 4-1/4" |
27" |
78" |
4548 |
Click for pricing |
The model number designates the capacity, fixed height under boom, and overall span.
* Molded phenolic casters with a steel core are standard. |
Nine Reasons to Choose Gorbel® Gantry Cranes:
- Industry's Best Warranty - 5 years on all Manual Cranes.
- Industry's Best Delivery - 5-Day Shipments are available for all standard manually operated cranes. 2- or 3-day service is also available for a premium.
- Multiple Shipping Points - With multiple manufacturing facilities, we ship from the closest plant. This lowers freight costs and reduces shipping damage.
- Ease of Installation - All components are built and assembled with jigs and fixtures which ensure easy installation.
- Ease of Operation - Gorbel® cranes were engineered to be easy to position and easy to operate. This helps reduce injuries and increase productivity.
- Versatility - Gorbel® makes a complete line of crane systems to meet your individual needs.
- Safety - All cranes are pre-engineered for powered hoist operation—with a factor of 15% of the crane capacity for the combined weight of the hoist and trolley and an additional factor of 25% of the crane capacity for the impact of powered hoists.
- "If It's Late, We Pay the Freight" - When delivery is critical, you can depend on Gorbel. Upon request, we will guarantee your crane will be ready for shipment on the promised date or we will pay the freight.
- Local Representation - Gorbel Cranes are sold and serviced by a nationwide network of dealers that provide material handling solutions suited to your needs and your budget.
Design Standards
All Gorbel® Jib and Work Station Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
All Gorbel® Jib and Work Station Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes. All Gorbel® Work Station Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems. All Gorbel® Cleveland Tramrail® systems meet or exceed the requirements of MMA MH27.1.
All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (re-affirmed 1992).
Ergonomic Partners services and is a distributor for portable fixed height gantry cranes in Missouri, Illinois, Indiana, Kansas, Tennessee, Kentucky, Iowa, and Oklahoma.
