Grippa Heavy Duty Beam Clamps Hoist – Up to 35 Tons
Ergonomic Partners provides heavy duty beam clamps and girder clamps for harsh industrial environments including:
- Oil and Gas
- Marine
- Steel Mill
- General Fabrication
- Construction
- Maintenance

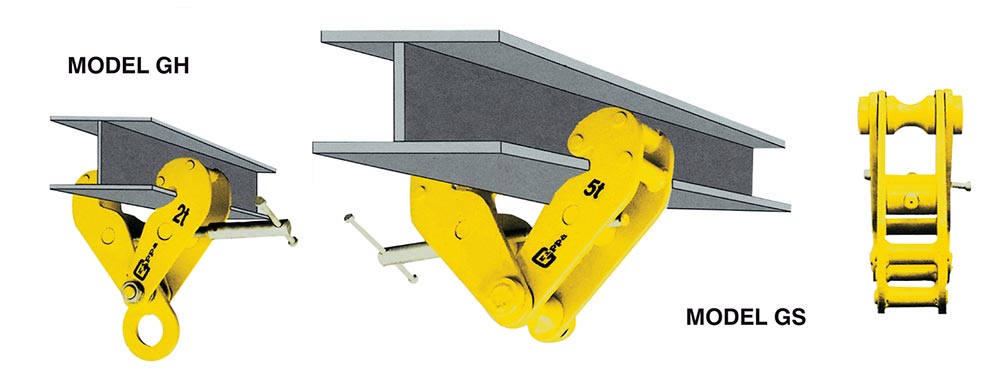

The GS Model Grippa beam clamps come in standard capacities on the low end, but the heavy duty models have unusually high capacities of 20 ton and 35 ton to handle the extreme lifting capacities.
Features of the clamps include:
- High quality autolac paint
- Corrosion resistant clamp screw
- Stainless Steel construction optional
- Handle beams from 2.9" to 18.9" in width

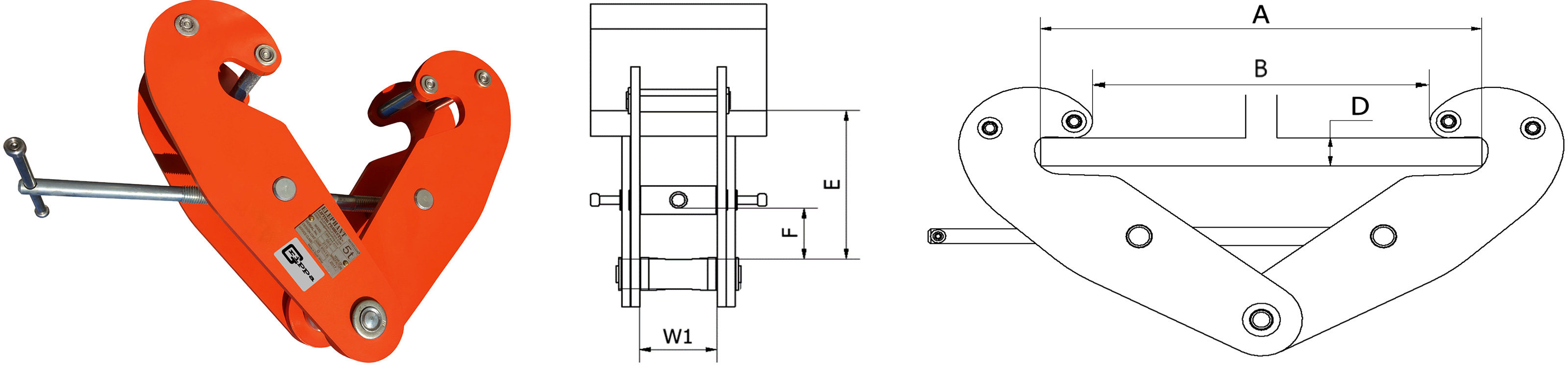

| Specifications for Grippa Heavy Duty Beam Clamps* |
 |
| Model |
Capacity
(lbs) |
Aperture |
Width |
Hole
C
(in) |
Ship Wt
(lbs.) |
Beam
Aperture
(in) |
A
(in) |
B – Max
(in) |
W1
(in) |
W2
(in) |
| GS1 |
2,200 |
2.9-7.1 |
7.1 |
2.64 |
3.54 |
NA |
11 |
0.63 |
| GS2 |
4,400 |
2.9-9.8 |
9.8 |
3.35 |
4.13 |
NA |
13 |
0.71 |
| GS3 |
6,600 |
3.3-11.8 |
11.8 |
3.74 |
5.12 |
NA |
22 |
0.87 |
| GS5 |
11,000 |
4.7-16.9 |
16.9 |
3.94 |
6.1 |
NA |
38 |
1.25 |
| GS10 |
22,000 |
7.8-17.7 |
17.7 |
6.69 |
8.86 |
NA |
126 |
2.95 |
| GS20 |
44,000 |
7.8-18.9 |
18.9 |
7.28 |
7.87 |
NA |
137 |
2.95 |
| GS32 |
70,500 |
9.0-30.0 |
29.13 |
9.0 |
16.1 |
NA |
393 |
2.95 |
| GH1 |
2,200 |
2.9-7.1 |
7.1 |
2.64 |
3.54 |
1.38 |
13 |
0.63 |
| GH2 |
4,400 |
2.9-9.8 |
9.8 |
3.35 |
4.13 |
1.97 |
15 |
0.71 |
| GH3 |
6,600 |
3.3-11.8 |
11.8 |
3.74 |
5.12 |
2.95 |
24 |
0.87 |
| GH5 |
11,000 |
4.7-16.9 |
16.9 |
3.94 |
6.1 |
2.95 |
42 |
1.25 |
| GH10 |
22,000 |
7.8-17.7 |
17.7 |
6.69 |
8.86 |
4.72 |
135 |
2.95 |
| GH20 |
44,000 |
7.8-18.9 |
18.9 |
7.28 |
9.45 |
4.72 |
139 |
2.95 |
| *GS Model Units are Standard Stock at the Manufacturer. 100% Stainless Steel Clamps Available Upon Request. |
Contact Ergonomic Partners to help select the right beam clamp for your application.
