Handheld Crane Radio Remote Controls by Enrange, Magnetek, and Telemotive





No matter what your radio remote control needs are, Magnetek can meet them with our Telemotive® and Enrange™ brand controls. Ergonomic Partners can help you apply radio remote control to your overhead bridge cranes, monorail hoists, motorized jib cranes or other pieces of industrial equipment. Users benefit from increased productivity, enhanced safety and reduced maintenance costs. Our engineers can help your plant personnel choose the best radio for your application.

ENRANGE Flex EX Remotes

The Enrange Flex EX Series of pre-packaged systems provides a standard cost effective solution to the restrictive use of hard-wired cabling.

They are used for controlling remotely operated overhead bridge crane remote controls, mobile hydraulic equipment, and other industrial machinery safely and effectively. These value packed systems are standard, complete systems that are available in several hand-held versions. The basic system comes complete with the following items: (2) hand-held remote transmitters, (1) pre-wired receiver unit with six feet of cable, operator’s user manual, carrying straps and vinyl slip covers.

The systems come in 4, 8 and 12 button styles to meet all your applications. Indoor or outdoor, the IP66 rated receiver enclosure can provide you the confidence and protection in the harshest environments.

Flex EX Radio Remote Control Competitive Advantages

• 62 available channels, adjustable without changing the printed circuit board
• These units have auto-scan, so there is no need to change dipswitches on receiver
• 1 million ID codes
• Self Adjusting RF, no RF tuning needed
• Advanced processor controls are all high grade quality
• Pitch and catch, random access, and tandem functions are standard
• Removable, durable power key to stop unwanted use
• Sealed to IP66 specifications, and chemical resistant
• Full compliance with FCC Part-15 rule
• Full system compatibility. All systems work with each other, minimizing the need for spare parts

Magnetek Flex 4EX Series Benefits

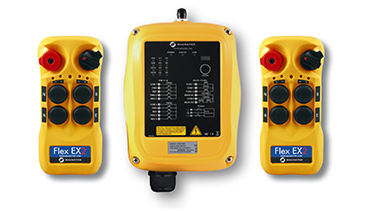

The Flex 4EX series remote control is the smallest hand-held controller for our Flex EX line. It is a small rugged unit used for material handling, mobile hydraulic, and industrial applications. The unit can be used for indoor or outdoor applications. The small transmitter size is durable with four buttons that are large enough for gloved operators. The buttons can be field setup to be either momentary or maintained functions. The additional features include a latching E-stop switch and removable key switch.

Enrange Flex 8EX Benefits

The Flex 8EX series remote control is the mid-size hand-held controller for our Flex EX line. It is a rugged unit used for material handling, overhead crane, hydraulic, and industrial applications. The unit can be used for indoor or outdoor applications. The transmitter is durable with eight buttons that are large enough for gloved operators. The buttons can be field setup to be either momentary or maintained functions. The additional features include a latching E-stop switch and removable key switch.

• Over 150 field settable functions
• Pre-wired receiver with 6’ cable
• Arrow and compass directional labels are standard

Magnetek Flex-AB Multi-Hoist Radio

The Flex A/B radio systems allow for operation of two hoist at the same time or each hoist separately. The systems come in both 3 motion and 5 motion so you could also control an Aux hoist. This is a pre-engineered offering, making it extremely competitive in the marketplace.

Enrange Flex Tandem Packages

The Flex-2T package give the customer four transmitters. One transmitter is dedicated to Crane A, one transmitter is dedicated to Crane B, and two transmitters have the ability to control both. The goal is to keep the transmitter that controls both cranes in the hands of a supervisor or maintenance technician. This will prevent the accidental control of a crane that the operator didn’t intend to move.

Magnetek Enrange Flex Crane Radio Radio Remote Control Highlights

• 4, 8, or 12 buttons available
• 2, 4, or 6 motions
• Two transmitters standard
• 6’ pig tail standard pre-wired



Magnetek Enrange Flex Part Number	Description	Pricing
Flex System, 2-Motion, 2-Speed, 2 Transmitters
0-FLEX-4EX-1S	Flex system - One 120VAC receiver and two transmitters with four 2-speed pushbuttons (2-motion, 2-speed with E-stop, On/Off and Start)	Click for Pricing
0-PTF-06-STD	Optional 24VAC power supply (0-PTF-06)	Call 314-884-8884 or Email for pricing.
0-PTF-07-STD	Optional 42VAC power supply (0-PTF-07)
0-PTF-08-STD	Optional 48VAC power supply (0-PTF-08)

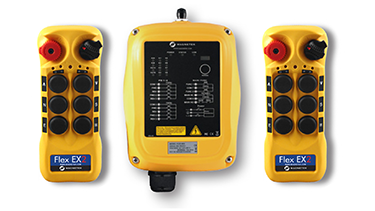

Flex System, 3-Motion, 2-Speed, 2 Transmitters
0-FLEX-6EX	Flex system - One 120VAC receiver and two transmitters with six 2-speed pushbuttons (3-motion, 2-speed with E-stop, On/Off and Start)	Click for Pricing
0-PTF-06-STD	Optional 24VAC power supply (0-PTF-06)	Call 314-884-8884 or Email for pricing.
0-PTF-07-STD	Optional 42VAC power supply (0-PTF-07)
0-PTF-08-STD	Optional 48VAC power supply (0-PTF-08)
Flex System, 4-Motion, 2-Speed, 2 Transmitters
0-FLEX-8EX	Flex system - One 120VAC receiver and two transmitters with eight 2-speed pushbuttons (4-motion, 2-speed with E-stop, On/Off and Start)	Click for Pricing
0-PTF-13-STD	Optional 12/24VDC power supply (0-PTF-13)	Call 314-884-8884 or Email for pricing.
0-PTF-02-STD	Optional 24/48VAC power supply (0-PTF-02)
STD-HK	Flex 8/12EX 96dB Receiver Enclosure Horn Kit (cannot be used when mounted inside a Magnetek Control Enclosure)

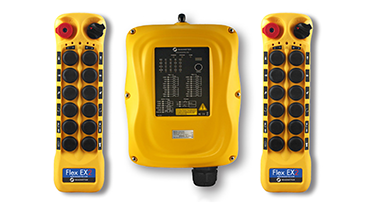

Flex System, 6-Motion, 2-Speed, 2 Transmitters
0-FLEX-12EX	Flex system – One 120VAC receiver and two transmitters with twelve 2-speed pushbuttons	Click for Pricing
0-PTF-13-STD	Optional 12/24VDC power supply (0-PTF-13)	Call 314-884-8884 or Email for pricing.
0-PTF-02-STD	Optional 24/48VAC power supply (0-PTF-02)
STD-HK	Flex 8/12EX 96dB Receiver Enclosure Horn Kit (cannot be used when mounted inside a Magnetek Control Enclosure)
0-UCC-02	Ultimate combo kit - rubber boot, padded case, retractable belt clip
Flex Tandem Package, 3-Motion, 2-Speed, 1-Aux. A/B Both Selector Switch
0-FLEX-8EX-2T	Flex Tandem Package - Includes two 120 Vac receivers and four transmitters with seven 2-speed pushbuttons and selector switch. 3-motion, 2-speed, plus 1-Aux, E-stop, On/Off and Start; one transmitter dedicated to Crane A, one transmitter dedicated to Crane B, and two transmitters with Crane A, B, Both selector switch	Call 314-884-8884 or Email for pricing.
0-PTF-02-SPC	Optional 24/48 Vac supply (0-PTF-02)
0-PTF-13-SPC	Optional 12/24 Vdc supply (0-PTF-13)
0-UCC-01	Ultimate combo kit - rubber boot, padded case, retractable belt clip
Flex Tandem Package, 5-Motion, 2-Speed, 1-Aux. A/B Both Selector Switch
0-FLEX-12EX-2T	Flex Tandem Package - Includes two 120 Vac receivers and four transmitters with eleven 2-speed pushbuttons and selector switch. 5-motion, 2-speed, plus 1-Aux, E-stop, On/Off and Start; one transmitter dedicated to Crane A, one transmitter dedicated to Crane B, and two transmitters with Crane A, B, Both selector switch	Call 314-884-8884 or Email for pricing.
0-PTF-02-SPC	Optional 24/48 Vac supply (0-PTF-02)
0-PTF-13-SPC	Optional 12/24 Vdc supply (0-PTF-13)
0-UCC-02	Ultimate combo kit - rubber boot, padded case, retractable belt clip
Flex AB System, 3-Motion, 2-Speed, 1-Aux. A/B Both Selector Switch
0-FLEX-8EX-AB	Flex AB System - Includes one 120 Vac receiver and two transmitters with seven 2-speed pushbuttons and selector switch. 3-motion, 2-speed, plus 1-Aux, Trolley/Hoist A, B, Both selector switch, E-stop, On/Off and Start	Call 314-884-8884 or Email for pricing.
0-PTF-02-STD	Optional 24/48 Vac supply (0-PTF-02)
0-PTF-13-STD	Optional 12/24 Vdc supply (0-PTF-13)
0-UCC-01	Ultimate combo kit - rubber boot, padded case, retractable belt clip
Flex AB System, 5-Motion, 2-Speed, 1-Aux. A/B Both Selector Switch
0-FLEX-12EX-AB	Flex AB System - Includes one 120 Vac receiver and two transmitters with eleven 2-speed pushbuttons and selector switch. 5-motion, 2-speed, plus 1-Aux, Trolley/Hoist A, B, Both selector switch, E-stop, On/Off and Start	Call 314-884-8884 or Email for pricing.
0-PTF-02-STD	Optional 24/48 Vac supply (0-PTF-02)
0-PTF-13-STD	Optional 12/24 Vdc supply (0-PTF-13)
0-UCC-02	Ultimate combo kit - rubber boot, padded case, retractable belt clip



Magnetek's Flex VUE™ Handheld Remote Control with LCD Display

Magnetek's innovative new Flex VUE™ combines a LCD display with stepless or two-step technology in a lightweight, comfortably contoured handheld transmitter. It's available with several options to meet the needs of a variety of crane, and hoist applications and industries.

Superior Communication and Convenience

• High resolution color LCD display keeps the operator informed of system status and diagnostics at all times, including battery life, signal strength, and warning symbols
• Quickly and easily configure the transmitter right through the LCD display menu
• Available two-way RF for applications requiring feedback of machine parameters, alarms, and command confirmation
• Frequency options include 400MHz and 2.4GHz

Versatility Combines with Precise Control

• Choose 4, 8 or 12 stepless or two-step technology button configurations with accurate and smooth operation
• Adjustable speed control – four mode settings (25%, 50%, 75% and 100% output) provide exact control of machine movement
• Buttons can be configured as proportional, on/off, or a combination of both and include a variety of standard labels
• Configure the Flex VUE on a PC with the optional Radio Control Programmer
• Easily upload new programming in the field with USB connection

Durable and Reliable

• Rugged, super tough nylon housing is made to withstand shock, water, heat, and harsh environments
• Rated NEMA 4 (IP66), sealed to withstand harsh, industrial environments
• Designed to minimize power consumption, providing one of the longest life batteries in the industry today
• Custom labeling, protective cases and accessories available

Comfort and Style in One Package

• Ergonomically designed contoured case makes it comfortable for the user
• Designed to be compact and lightweight to prevent operator fatigue
• One-handed operation frees the operator to assist in other tasks

Radio Drive Serial Interface (RDSI) Option
The RDSI module is designed to communicate via a serial interface to directly control Magnetek's IMPULSE®•G+ Series 4 and VG+ Series 4, IMPULSE®•G+ Series 3 and VG+ Series 3 and IMPULSE®•G+ Mini Adjustable Frequency Crane Controls (consult factory for compatibility if you have an existing RDSI setup with a Series 2 drive). RDSI provides users with diagnostic and troubleshooting information on the ground so there is no need to get up on the crane.

• Automatically detects drive types
• Eliminates the need for drive contactors
• Provides feedback parameters directly from the drive, including Drive Status, Output Frequency, Output Voltage, Output Current, Output Power, and Torque Reference
• Reduces system costs by eliminating relay cards, excessive wiring and labor

Let Ergonomic Partners help build a Flex VUE™ system to your specifications—with Magnetek's Flex M receiver, it's completely customizable.

Telemotive telePilot Crane Remote Control Highlights

• Three motions standard, up to 5 motions via A, A&B, B select
• Single or Two Speed models available
• Backward compatible to most 10K Telemotive receivers.

Telemotive telePendant Handheld Crane Radio Remote Highlights

• Available in up to 3 motions with 6 auxiliary functions or 5 motions with 4 auxiliary functions using A&B select.
• Two or three-speed models available
• Backward compatible to most 10K Telemotive receivers.

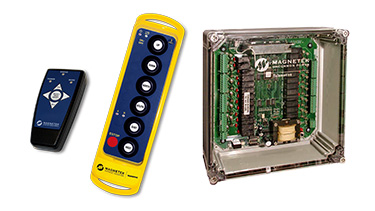

Telemotive telePendant Radio Hoist Remote Control System

Durability, ergonomics, maximum functionality and value are built right into every telePendant™. The lightweight pendant system will meet or exceed your expectations.

Transmitter Features:

• Rugged, chemically resistant transmitter case withstands shock and abusive environments
• Traditional pendant-style pushbutton station switches, rated for a million plus operations, available in two- and three-speed designs
• Ergonomic, lightweight transmitter (50% lighter than its predecessor)
• All Telemotive products are designed to minimize power consumption, providing one of the longest life batteries in the industry today
• Electronically synthesized frequency allows for 31 operating channels—no crystals to break
• Time Multiple Shared feature—four systems can share the same channel without interference
• 4-in-1 transmitter design supports multiple cranes via password protected access code
• Compatible with Telemotive's 10K Systems
• Flexibility in programming means you can customize output configurations, frequency channels, and security code via a PDA
• Universal transmitter design eliminates the cost and hassle of tracking and maintaining a fleet of spare transmitter
• No remote control licensing required.

Telemotive 10K and telePendant pre-engineered systems consist of a pendant-style transmitter, and an inteleSmart receiver.

The telePendant is available in two- and three-speed designs. Durability, ergonomics, maximum functionality and value are built right into every transmitter. We're confident thetelePendant system will meet or exceed your expectations.

InteleSmart Receiver Features

• Custom output mapping via a Palm® Pilot PDA
• Available in 12 to 24 outputs
• Synthesized RF—up to 31 operating channels
• Designed for VFD, PLC and contactor controls
• Compact design minimized space requirements
• NEMA 4X Enclosure
• Optional pigtails plug right in, minimizing field wiring
• Group coding—easily allows transmitter to control multiple cranes in various configurations

Telemotive telePilot remote Control System

Magnetek brings you the most durable hand-held transmitter on the market today, which is available with up to 5 motions and two-speed.

• Order telePilot preprogrammed from the factory to fit your application, or customize it yourself via a Palm® Pilot PDA
• Ergonomically designed lightweight transmitter
• 4-in-1 transmitter design supports multiple cranes via a password protected access code
• Extremely durable extruded aluminum transmitter housing
• Available in three-motion, two-speed and three-auxiliary functions, or three-motion, two-speed, one auxiliary function, and A, A+, B or B
• Unit designed with sub-voltage technology providing a much longer operating life
• Switches designed with a rated life of over one million operations

telePilot pre-engineered systems feature the most functional, operator-friendly membrane-style transmitter available today, along with our inteleSmart receiver.

TelePilot’s ergonomic design is more slender and lightweight than most membrane transmitters, and is packed with features. Yet this is the most durable hand-held transmitter on the market today. The telePilot system will meet or exceed your expectations.

Telemotive Telependant Model Number	Description	Pricing
Mini telePendant, Two telePendant Transmitters, A/B Select
TPDTSYS12-22FMINI	Mini telePendant System-One TR12 Mini inteleSmart Receiver, "Two" telePendant 2-speed, 3 motion transmitters with A/B Select, 2 or 3 Aux. and two AA batteries. Recommended for drives that do not need MOVs. We recommend a pigtail due to the compact size.	Call 314-884-8884 or Email for pricing.
P-12	w/ 6ft. Pigtail Option
Mini telePendant, One telePendant Transmitters, A/B Select
TPDTSYS12-21FMINI	Mini telePendant System-One TR12 Mini inteleSmart Receiver, "One" telePendant 2-speed, 3 motion transmitter with A/B Select, 2 or 3 Aux. and two AA batteries. Recommended for drives that do not need MOVs. We recommend a pigtail due to the compact size.	Call 314-884-8884 or Email for pricing.
P-12	w/ 6ft. Pigtail Option
Standard telePendant, One TR12 Receiver, Two telePendant Transmitters, A/B Select
TPDTSYS12-22FSTD	Standard telePendant System-One TR12 Standard inteleSmart Receiver with output fusing and MOVs, "Two" telePendant 2-speed, 3 motion transmitters with A/B Select, 2 or 3 Aux. and two AA batteries	Call 314-884-8884 or Email for pricing.
P-12	w/ 6ft. Pigtail Option
PT-12	w/ 6ft. Pigtail & Transfer Switch Option
Standard telePendant, One TR12 Receiver, One telePendant Transmitters, A/B Select
TPDTSYS12-21FSTD	Standard telePendant System-One TR12 Standard inteleSmart Receiver with output fusing and MOVs, "One" telePendant 2-speed, 3 motion transmitter with A/B Select, 2 or 3 Aux. and two AA batteries	Call 314-884-8884 or Email for pricing.
P-12	w/ 6ft. Pigtail Option
PT-12	w/ 6ft. Pigtail & Transfer Switch Option
Standard telePendant, One TR24 Receiver, Two telePendant Transmitters, A/B Select
TPDTSYS24-32FSTD	Standard telePendant System-One TR24 Standard inteleSmart Receiver with output fusing and MOVs, "Two" telePendant 3-speed, 5 motion transmitters with 4 Aux., A/B Select and two AA batteries	Call 314-884-8884 or Email for pricing.
P-24	w/ 6ft. Pigtail Option
PT-24	w/ 6ft. Pigtail & Transfer Switch Option
Standard telePendant, One TR24 Receiver, One telePendant Transmitters, A/B Select
TPDTSYS24-31FSTD	Standard telePendant System-One TR24 Standard inteleSmart Receiver with output fusing and MOVs, "One" telePendant 3-speed, 5 motion transmitter with 4 Aux., A/B Select and two AA batteries	Call 314-884-8884 or Email for pricing.
P-24	w/ 6ft. Pigtail Option
PT-24	w/ 6ft. Pigtail & Transfer Switch Option
telePendant Radio Control Transmitter
TX12P-2C	telePendant Transmitter 2-speed, 3 motion w/ A/B Select and up to 3 Aux. - Required information: Job Number from the original system.	Call 314-884-8884 or Email for pricing.
TX16/24P-3C	telePendant Transmitter 3-speed, 3 or 5 motion w/ A/B Select and up to 6 Aux. - Required information: Job Number from the original system.
Optional Parts
RCP-IR	Radio Control Programmer with IR Adapter Communication. Consult Factory for Compatibility	Call 314-884-8884 or Email for pricing.
E2028-2	Receiver Remote Antenna Kit - Consisting of 40' of co-axial cable and antenna base, which optimizes the radio signal for your crane.
E2028-4	Receiver Panel Antenna Kit (Secondary Enclosure) - Designed for radios that are mounted inside a panel. This kit consists of a BNC-BNC bulkhead fitting and 4' of co-axial cable.
BT111-0	Disposable Lithium Battery Pack
BT111-1	Rechargeable Lithium Ion Battery Pack
E10723-0	Lithium Ion Battery Charger
MP10705-2	AA Alkaline Battery Holder
S615-0	Toggle Isolation Switch (Stand Alone)



Magnetek inteleSmart Receiver Features

• Custom output mapping via a Palm® Pilot PDA
• Available in 12 to 24 outputs
• Synthesized RF—up to 31 operating channels
• Designed for VFD, PLC and contactor controls
• Compact design minimized space requirements
• NEMA 4X Enclosure
• Optional pigtails plug right in, minimizing field wiring
• Group coding—easily allows transmitter to control multiple cranes in various configurations
