Elephant High Capacity Hand Chain Hoist – 16 Ton to 80 Ton

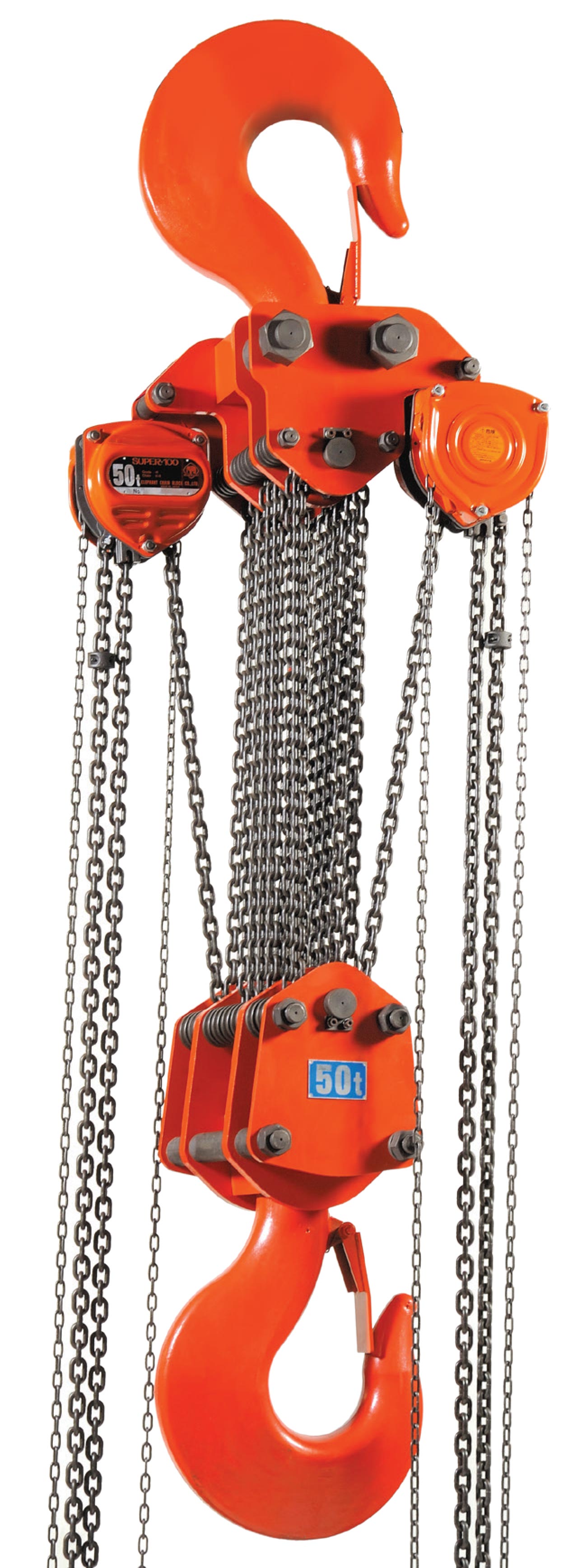

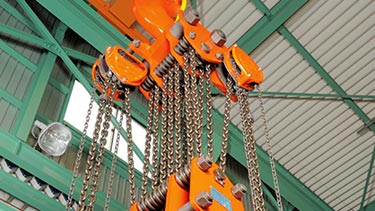

Ergonomic Partners is a distributor for Elephant Hoists. The Super 100 Series hand chain hoist handles super high capacities from 16 Ton to 80 Ton. These hoists are ideal for oil and gas rigs, and can handle most rig applications.
Features of this hoist include:
- Capacity range is 16 Ton, 20 Ton, 32 Ton, 40 Ton, 50 Ton, and 80 Tons
- Double pawls supporting fail-safe brake mechanism - Even if by any chance one of the two pawls becomes unserviceable, the other will still remain operative, and the brake system remains secure.
- Bottom hook with thrust bearing - The thrust bearing enables the lifted load to be moved in any direction without subjecting it to stress.
- Hooks of easier handling shape - The opening of the hooks has been made wider for easier handling and working. However if by any chance the hook is overloaded there is no fear of it breaking, it will gradually start straightening out, avoiding any load drop or personal injury.
- Tough framing - The tough gear case, reinforced with four ribs and four knock pins, provides accurate gear centering and high mechanical efficiency.
- Rolled-edge hand wheel cover provides smooth operation of the hand chain when pulled sideways.
- Grade 105 galvanized corrosion resistant load chain and zinc plated hand chain
- Strong and least-corrosive electrostatic powder painting.
- Dry friction discs with longer life.
- Unique chain guide.
- Load sheave with roller bearing.
- Anchor plate avoiding over-lowering.
- Overload protection safety device – standard
- Corrosion resistant white load chain – standard
- Elephant's high-tech load chains are approved by DIN 5684, one of the world's strictest standards. This is the special heat treated load chain of ISO grade +V (105kg/mm2), whose tensile strength far surpasses ISO V class.
| Specifications for Super High Capacity Hand Chain Hoist – 16 Ton to 80 Ton* |
 |
| Model |
Max.
Working
Load
(lbs) |
Max.
Working
Load
(mt) |
Test
Load
(mt) |
Standard
Lift (ft) |
Headroom
(in) |
Hand Effort
to lift
full working
load (lbf) |
Load Chain |
Hand Chain
Dia. x Pitch
(mm) |
Net Wt.
(lbs) |
Dia. x Pitch
(mm) |
No.
Falls |
Chain
Class |
| H100-16 |
35,000 |
16 |
20 |
11.5 |
38.78 |
88 |
9 x 27 |
6 |
+V |
5 x 23.5 |
326 |
| H100-20 |
44,000 |
20 |
25 |
11.5 |
44.09 |
79 x 2 |
9 x 27 |
8 |
+V |
5 x 23.5 |
463 |
| H100-32 |
70,500 |
32 |
40 |
11.5 |
50.79 |
108 x 2 |
9 x 27 |
10 |
+V |
5 x 23.5 |
650 |
| H100-40 |
88,000 |
40 |
50 |
11.5 |
57.09 |
104 x 2 |
9 x 27 |
14 |
+V |
5 x 23.5 |
1025 |
| H100-50 |
110,000 |
50 |
62.5 |
11.5 |
59.84 |
110 x 2 |
9 x 27 |
16 |
+V |
5 x 23.5 |
1213 |
| *Longer lifts and higher capacity hoists are available upon request. |
| Dimensions for Super High Capacity Hand Chain Hoists |
| Model |
A min. (in) |
B (in) |
C (in) |
D (in) |
E (in) |
F (in) |
G (in) |
H (in) |
I (in) |
N (in) |
| H100-16 |
38.78 |
9.25 |
3.54 |
5.71 |
19.37 |
3.78 |
4.02 |
3.11 |
2.44 |
3.19 |
| H100-20 |
44.09 |
14.21 |
7.11 |
7.11 |
28.39 |
3.78 |
4.41 |
3.35 |
2.76 |
3.23 |
| H100-32 |
50.79 |
15.79 |
7.89 |
7.89 |
28.39 |
4.57 |
5 |
4.45 |
3.43 |
4.09 |
| H100-40 |
57.09 |
19.41 |
9.7 |
9.7 |
28.78 |
3.7 |
5.75 |
5.31 |
4.92 |
4.25 |
| H100-50 |
59.84 |
21.3 |
10.65 |
10.65 |
28.78 |
4.06 |
6.54 |
6.14 |
5.39 |
4.72 |
Contact Ergonomic Partners to help select the right manual chain hoist or hand chain hoist for your application.
Ergonomic Partners is a distributor for ATEX certified spark resistant hoists in Missouri, Illinois, Tennessee, Oklahoma, Kansas, Indiana, Louisiana, Texas and Kentucky.
