Bishamon Scissor Lift Tables, EZ Loader, L2K®, L3K™, L5K™ and EZ-OFF

Ergonomic Partners handles a wide variety of ergonomic scissor lifts, ergonomic lift tables, work positioners, pallet and bin tippers and other equipment for container handling, vertical lifting and work positioning. This material handling equipment is designed to improve worker productivity while reducing the potential for workplace injuries.



Our product offerings include: scissor lift tables, container tilters, pallet level loaders, pallet trucks, self leveling lift table, pneumatic lift tables, turntables and other palletizing equipment. We also handle custom coil and roll handling equipment, roll on level loaders, dock lifts, vertical conveyors, portable ergonomic scissor lifts and manual lifter transporters.

Combining lift assist equipment with a work positioners in a production environment, can drastically improve safety and productivity. No more heavy lifting, awkward bending or uncomfortable working postures.

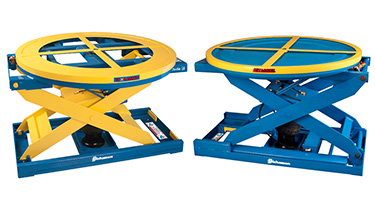

Bishamon EZ Loader

The new EZ Loader now handles loads from a minimum self leveling weight of 250 lbs. up to a maximum self-leveling weight of 3,500 lbs. with a maximum load weight of 4,000 lbs. To make it even better, a three position adjustability knob was added that allows adjustment of the collapsed capacity without changing the air pressure.

Bishamon EZ Loaders are true ergonomic tools in every sense of the word. They are designed to eliminate worker bending by automatically raising and lowering pallets during loading or unloading without the use of mechanical springs. EZ Loaders also allow easy pallet rotation so the worker does not have to reach or strain. As the load weight changes, the Bishamon EZ Loader automatically adjusts, keeping the top of the load at a convenient working height. The patented pneumatic operating system found only in the EZ Loader has proven to be the top choice of industry professionals worldwide.

Standard Features

• Self-leveling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity
• Integral rotator ring helps eliminate reaching and stretching
• Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement to the platform
• Infinitely adjustable for varied loads by simply adding or bleeding air - no changing of springs required
• Pressure gauge and air valves are protected, yet located for easy access. The custom air gauge indicates pressure in English and metric scales
• Secured ball-bearing center pivot of the 43 inch diameter, rotator ring provides smooth, even rotation
• A three position adjustability knob allows adjustment of the collapsed capacity without changing air pressure
• Pressure relief valve prevents excess pressure build-up
• Heavy-duty structural steel construction to handle tough industrial environments
• Surfaces are phosphatized and powder coated with a high-quality polyester for a lasting, durable finish
• Rollers are entrapped in the base frame and platform for added stability
• Safety finger guards under the rotator ring are standard on all EZ Loaders
• EZ Loaders arrive at your facility fully assembled - just add air!
• Easily transported with a fork truck or optional portability packages

Advantages

• No mechanical springs, uses captive air to eliminate the need for a constant air supply
• Self-raising and lowering of the pallet as load weight changes
• No springs to change or estimating of weight
• Simple adjustments of weight capacities to work requirements
• Self-dampening eliminates the need for shock absorbers
• Rotator ring minimizes walking and reaching during the loading process
• Smooth, even rotator ring motion improves worker efficiency
• Work is always at the optimum level so worker does not have to bend, stretch or strain
• Requires very little maintenance

EZ Loader Models
Model	Travel	Capacity	Self Leveling Capacity Range		Height (inches)		Approx. Ship. Weight	Price
	(inches)	(pounds)	Minimum (lbs)	Maximum (lbs)	Lowered	Raised	(pounds)
EZ Loader	20.0	4,000	250	3,500	10.5	30.5	500	Click for Pricing
EZ Loader-E*	20.0	4,000	250	3,500	10.5	30.5	500	Click for Pricing
EZ Loader-SS	20.0	4,000	250	3,500	10.5	30.5	500	Call 314-884-8884 or Email for pricing.
EZ-Loader has a standard powder coated finish EZ Loader-E has an FDA compliant powder coated finish with stainless steel solid round top EZ Loader-SS is grade 304 stainless steel with an electro-polished finish
* E models are not rust-proof and not approved for washdown applications. The EZ Loader is CE marked under the Machinery Directive (2006/42/EC).

Accessories for EZ Loaders
Accessory	Description	Price
EZ-BRK	Rotator ring brake to prevent rotation	Call 314-884-8884 or Email for pricing.
EZ-ABS	Accordion bellow skirting w/frame
EZ-SLP	Semi live portability for moving unloaded lift (2 wheels and dolly handle)
EZ-CART	Cart portability with 2 swivel wheels and 2 rigid wheels (adds 7 inches to lowered height)
EZ_SRT	Solid 43 inches diameter round top
EZ-4444	Oversize rectangular rotating platform (44 inches x 44 inches)
EZ-4448	Oversize rectangular rotating platform (44 inches x 48 inches)
EZ-4848	Oversize rectangular rotating platform (48 inches x 48 inches)
EZ-SRT-DNT	Solid 43 inches diameter round top with 90 degree detents
EZ-4444-DNT	Oversize rectangular rotating platform (44 inches x 44 inches) with 90 degree detents
EZ-4448-DNT	Oversize rectangular rotating platform (44 inches x 48 inches) with 90 degree detents
EZ-4848-DNT	Oversize rectangular rotating platform (48 inches x 48 inches) with 90 degree detents
Floor TT	Floor mounted 4,500 lbs. capacity 43 inch diameter rotating turntable - (3.18 inches height)

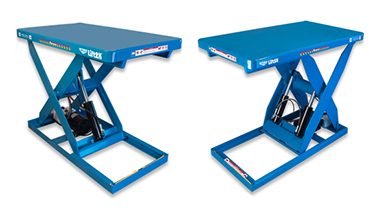

L2K®, L3K™, and L5K™ - Scissor Lift Tables

Designed from the ground up, the Bishamon LK-Series work positioners introduce a new concept in lift table manufacturing. LK lifts are produced in 3 capacity ranges and 8 models to handle most of your lift table needs with fast delivery. LK lifts increase productivity and reduce worker strain in today's harsh industrial environments by eliminating unproductive lifting, bending and stretching that ultimately leads to worker fatigue and injuries.

Standard Features:

• Complies with ANSI MH 29.1:2012 "Safety Requirements for Industrial Scissor Lifts"
• 115 volt operator control system
• Flow limiting valve at each cylinder
• Pressure compensated flow control at power unit
• Hinged maintenance bars
• Rugged construction with high strength structural steel components and welds
• Large heavy duty torque tube
• Rollers are entrapped in base frame and platform for added stability
• Self-lubricating, maintenance free bushings at all pivot points
• Unitized, compact, internal power unit and reservoir combination
• Continuous axles at rollers
• Heavy duty cylinder(s) with chrome plated cylinder rod(s) and premium seals
• Durable powder coated finish

Selector Table for L2K®, L3K™, and L5K™
Model	Travel	Capacity	Platform Size	Height (in)		Up Time	Dwn. Time	Approx. Ship. Weight	Price
	(inches)	(pounds)	(inches)	Lowered	Raised	(sec)*	(sec)*	(pounds)
L2K-2848	30	2,000	28 x 48	8.7	38.5	24	12	469	Click for Pricing
L2K-3648	30	2,000	36 x 48	8.5	38.5	24	12	490	Click for Pricing
L2K-TT	30	2,000	43 inch dia.	11.5	41.5	24	12	540	Click for Pricing
L3K-2848	34	3,000	28 x 48	8.63	42.63	25	12	530	Click for Pricing
L3K-3648	34	3,000	36 x 48	8.63	42.63	25	12	560	Click for Pricing
L3K-TT	34	3,000	43 inch dia.	11.75	45.75	25	12	680	Click for Pricing
L5K-3256	39.25	5,000	32 x 46	8.75	48	50	24	730	Click for Pricing
L5K-4872	39.25	5,000	48 x 72	8.75	48	50	24	1030	Click for Pricing
* Up and down times are approximate for a lift with no load. The loaded up time will be slightly longer and the loaded down time will be slightly less.

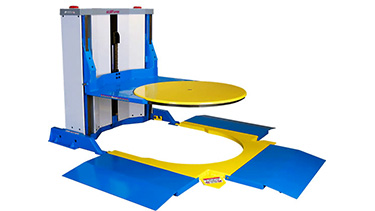

EZ OFF Lifter™ Model EZO-25E and EZO-25E-3S

The Bishamon EZ Off Lifter™ pallet positioners are the ultimate ergonomic solution for loading or unloading pallets in applications when loads are transported with a pallet truck. These revolutionary products provide the answer for maintaining the load at a convenient working height. They also provide easy pallet rotation and near side loading to eliminate excessive lifting, bending, and stretching. They are electro-hydraulic operation and available in a free-standing front access model, and a bolt-down model with ramp access from three positions.

Standard Features:

• Feet-clear safety circuit automatically stops the platform descent at 9 in. above the floor preventing unintentional foot entrapment under the platform or pallet
• Safety Warning Lights and Alarm alert the operator before the platform lowers from the intermediate safety stop
• Platform Safety Covers guard pinch points around the mast and mast rollers
• Chain Cover guards pinch points around the upper chain wheel
• Hydraulic power unit with unitized control valves and reservoir
• 1 HP 115 V electric motor
• 40.50 in. diameter rotating disk supported by 32 precision ball bearings
• Automatic Platform Lock prevents platform rotation in the lowered position
• Hinged integrated approach ramp
• Integrated lifting tabs and platform catches for transporting with a forklift
• Rear leveling feet
• Durable powder coated finish
  • EZO-25E-3S Model Only:
    • Pallet truck access from 3 sides
    • One fixed ramp fits all 3 sides
    • One pallet bumper / stop

Selector Table For EZ OFF Lifters
Model	Travel	Maximum Capacity	Floor Anchors Required	Lowered Height	Raised Height	Maximum Pallet Size	Approximate Shipping Weight	Price
	(inches)	(pounds)		(inches)	(inches)	(inches)	(pounds)
EZO-25E	28.25	2500	No	1.75	30.00	44 x 48	1350	Click for Pricing
EZO-25E-3S	28.25	2500	Yes	1.75	30.00	44 x 48	1350	Click for Pricing
Options and Accessories								Call 314-884-8884 or Email for pricing.
Additional Ramp for EZO-25E-3S
Additional Bumper / Pallet Stop for EZO-25E-3S
14” Ramp Extension for EZO-25E-3S Foot Control



For more information and assistance with your special work positioner requirements, please contact Ergonomic Partners. Ergonomic Partners sells and services the Bishamon EZ Loader, L2K®, L3K™, and L5K™ and Pallet Jacks in Missouri, Illinois, Indiana, Kansas, Tennessee, Kentucky, Iowa, and Oklahoma.
