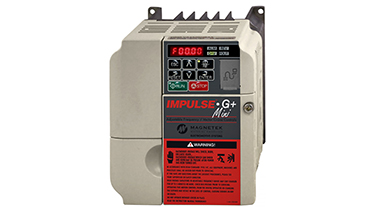

Magnetek IMPULSE®•G+ Mini VFD Crane Controls




The new IMPULSE®•G+ Mini from Magnetek continues their history of providing the most reliable and cost-effective adjustable frequency crane controls available, The low horsepower (HP) IMPULSE®•G+ Mini is their easiest to program drive to date, with user-friendly standard programming for basic applications and advanced programming capability for high performance environments. IMPULSE®•G+ Mini is designed with an expanded HP range and an identical dimensional footprint as the IMPULSE®•P3 Series 2 (up to 5HP) and a smaller footprint beyond 5HP.

All this, plus assured reliability and lower cost make the IMPULSE®•G+ Mini Adjustable Frequency Crane Control the product of choice for your overhead material handling needs.

Voltage	Max. Motor FLA	Motor HP*	Part Number	Price
460 Volts AC	1.2	1/2	4001-G+M	Click for Pricing
	1.8	3/4	4002-G+M	Click for Pricing
	3.4	1 & 2	4003-G+M	Click for Pricing
	4.8	3	4004-G+M	Click for Pricing
	9.2	5	4009-G+M	Click for Pricing
	14.8	7.5	4014-G+M	Click for Pricing
	18	10	4018-G+M	Click for Pricing
	24	15	4024-G+M	Click for Pricing
	31	20	4031-G+M	Click for Pricing



Voltage	Max. Motor FLA	Motor HP*	Part Number	Price
230 Volts AC	1.6	1/4	2001-G+M	Click for Pricing
	3	1/2	2003-G+M	Click for Pricing
	5	1	2005-G+M	Click for Pricing
	8	2	2008-G+M	Click for Pricing
	11	3	2011-G+M	Click for Pricing
	17.5	5	2017-G+M	Click for Pricing
	25	7.5	2025-G+M	Click for Pricing
	33	10	2033-G+M	Click for Pricing
	47	15	2047-G+M	Click for Pricing
	60	20	2060-G+M	Click for Pricing

*Horsepowers are provided for reference only and should not be used for drive sizing. Drives should be sized according to actual motor Full Load Amps (FLA). Prices include 120 Volt control voltage interface card and basic instruction manual - 24VAC or 48VAC card can be substituted upon request. All prices shown in US Dollars. Data and prices subject to change without notice.

IMPULSE®•G+ Mini Accessories

Description	Part Number	Price
2 Multi-Function Relay Outputs Interface Card, 120VAC	P3S2-OUT2-KIT	Call (314) 766-4578 or Email for pricing.
USB to Serial Converter, Handheld Parameter Copy Unit	COPY-STICK
120VAC Interface Card and Installation Manual	G+M-IF-120VAC
24VAC Interface Card and Installation Manual	G+M-IF-24VAC
48VAC Interface Card and Installation Manual	G+M-IF-48VAC
Remote Mounted Door Keypad Kit with 3-Meter Cable	G+M-RMT-OPER-KIT



Features include:

• Factory Default Software Settings - The IMPULSE®•G+ Mini is factory preset for basic application programming. This allows the technician to easily navigate and program the drive via a built-in keypad display in minutes for most applications.
• Advanced Programming Capability - The IMPULSE®•G+ Mini provides the choice of programming in Basic or Advanced access levels. In the Basic access level, the parameter availability (features) and navigation is nearly identical to the IMPULSE®•P3 Series 2 in Basic mode. In the Advanced access level, the parameter availability and feature set is opened up to reveal the full capacity of the IMPULSE®•G+ Mini drive. In this mode, the up and down arrow keys will navigate through the familiar parametersof the IMPULSE®•G+ series 3 Crane Control.
• Load Check II™ - this built-in feature continuously detects hoist overload conditions throughout the frequency range, halting upward motion and only allowing the load to be lowered. It continuously monitors the hook load, both during acceleration and constant speed, eliminating the need for the load cells in most applications. Its new auto-setup feature will define the hoist's maximum hook load in seconds. Load Check II detects overload conditions when loads are "snagged" during low speed operation. With these control advancements, the drive will pause lifting when the rated capacity is approached and will only allow the load to be lowered. these enhancements provide increased safety and productivity.
• Compact Design - Our most compact low HP drive to date, the IMPULSE®•G+ Mini's size permits the use of smaller control enclosures, reducing the overall cost of an installation. It also expands application opportunities on smaller cranes, hoists, trolleys and monorail carriers. The IMPULSE®•G+ Mini is available with standard 120VAC, interface card, with 24VAC optional.
• Expanded HP Range - Available in 1/2 through 20 HP in 380-480V or 1/4 through 20HP in 200-240V 3 phase ratings. This allows the user to select the most cost-effective product for low HP applications through class D service. Variable Frequency Drive (VFD) technology provides energy savings compared to traditional contactor technology.
• Energy Engineered™ - All of Magnetek's motion control products are designed to efficiently utilize available power, thereby reducing energy costs for you and your customers.
• Reliability Built In - Designed with reliability and economy in mind! The hardware and software were designed and extensively tested specifically for the operating conditions seen in overhead material handling applications. The IMPULSE®•G+ Mini is backed by our two-year warranty.
• Optional Flat Heat Sind Design Available - This option reduces the depth of the drive by as much as 45%. Finless capacities are available in 230-460V 1/2 through 5HP. Consult factory on the suitability of the flat heat sink design for your application.



Complete IMPULSE® Control Panels Available

Standard Features include:

• 120 Volt control voltage interface card
• Brake contactor branch fusing
• Built-in electronic motor thermal overload protection
• Dynamic braking resistor(s)
• All wiring to a single terminal strip
• Clearly marked wires (at both ends)
• Complete wiring schematic
• NEMA 4/12 enclosure



Keypad/Digital Display Features:

• Standard LED 5 digit display of parameters and diagnostics
• Simplified navigation common to IMPULSE drives, so users don't have to relearn
• Easy set up and troubleshooting
• Allows for:
  • Programming both Basic and advanced drive parameters
  • Monitoring the fuctions of the drive
  • Reading alpha-numeric fault diagnostic indications



Unsurpassed Product Support:

As always, you can count on Magnetek and IMPULSE®•G+ Mini variable frequency drives to help you achieve the maximum performance and reliability of your overhead material handling system, our products include:

• Two-year warranty
• Magnetek Service Technicians on-call 24/7
• On-site and in-house product training programs
• Fully tested prior to shipment

For maximum control flexibility, match the IMPULSE®•G+ Mini with SBP®/SBP2® Pendant Pushbutton Stations or Magnetek's line of Handheld Crane Radio Remote Controls.
