Magnetek's Telemotive Belly Box Radio Transmitters - Industrial Radio Controls



Belly Box Radio Transmitters by Telemotive are industrial radios controls manufactured specifically for the overhead crane market. These radio remotes offer finite control over lifting heavy loads, making them ideal in applications like hot metal cranes, steel mill cranes and multiple hoist applciations.

Our Belly box radio controls are designed to be lightweight and come with a comfortable adjustable strap. They are operator friendly with military grade switches, levers and e-stops to allow for use even in harsh industrial enviroments.

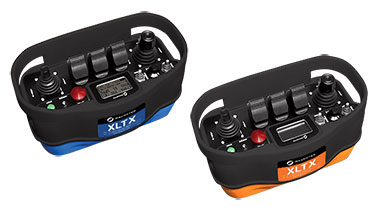

Telemotive Industrial Controls – The XLTX Transmitter

Loaded with Features:

  • Graphic display with system diagnostics including battery life, signal strength, live load on the hoist, and drive fault codes.
  • Frequency options including 400MHz, 900MHz, and 2.4GHz
  • High power RF available for long range or harsh environments
  • Shock resistant super-tough nylon housing
  • Rated NEMA 4 (IP66), sealed to withstand harsh, industrial environments
  • Frequency Hopping Spread Spectrum (FHSS)
  • Military grade E-Stop and function switches
  • Synthesized RF technology available for:
  • Unlicensed (FCC Part 15) 400 and 900MHz – dial in any of the 32 frequencies



Radio Control Programmer (RCP) Option

  • Allows you to program frequency and address code from your Windows PC
  • Transfer configurations among multiple radio transmitters, saving time and effort
  • Package includes a CD, activation code, USB cable, and Quick Start guide



Telemotive XLTX Part Numbers Description Pricing

XLTX 3-Motion, 2-Speed with Flex M-16
XLTXSYS-3L-3M-2S System includes (1) XLTX with 3 levers, 2 speed, graphic display, (2) aux toggles, (1) A/B/Both selector, (1) e-stop, (1) on/off/start switch and (1) Flex M, 16 output. Shoulder strap, (2) alkaline battery holders, and user manual. Call
314-884-8884
or Email for pricing.
XLTX-3L-3M-2S Spare XLTX transmitter* - Required information: Job Number from the original system.
P16-FLEX with 6 feet Pigtail Option
PT16-FLEX Transfer Switch, 2 position 4 poles with 6 feet Pigtail Option

XLTX 3-Motion, 3-Speed with Flex M-24
XLTXSYS-3L-3M-3S System includes (1) XLTX with 3 levers, 3 speed, graphic display, (3) aux toggles, (1) A/B/Both selector, (1) e-stop, (1) on/off/start switch and (1) Flex M, 24 output. Shoulder strap, (2) alkaline battery holders, and user manual. Call
314-884-8884
or Email for pricing.
XLTX-3L-3M-3S Spare XLTX transmitter* - Required information: Job Number from the original system.
P24-FLEX with 6 feet Pigtail Option
PT24-FLEX Transfer Switch, 2 position 4 poles with 6 feet Pigtail Option

XLTX 3-Motion, 5-Speed with Flex M-32
XLTXSYS-3L-3M-5S System includes (1) XLTX with 3 levers, 5 speed, graphic display, (3) aux toggles, (1) A/B/Both selector, (1) e-stop, (1) on/off/start switch and (1) Flex M, 32 output. Shoulder strap, (2) alkaline battery holders, and user manual. Call
314-884-8884
or Email for pricing.
XLTX-3L-3M-5S Spare XLTX transmitter* - Required information: Job Number from the original system.
P32-FLEX Transfer Switch, 2 position 4 poles with 6 feet Pigtail Option
PT32-FLEX Transfer Switch, 2 position 4 poles

XLTX 4-Motion, 3-Speed with Flex M-32
XLTXSYS-4L-4M-3S System includes (1) XLTX with 4 levers, 3 speed, graphic display, (3) aux toggles, (1) Independent/Tandem selector, (1) e-stop, (1) on/off/start switch, and (1) Flex M, 32 output. Shoulder strap, (2) alkaline battery holders, and user manual. Call
314-884-8884
or Email for pricing.
XLTX-4L-4M-3S Spare XLTX transmitter* - Required information: Job Number from the original system.
P32-FLEX with 6 feet Pigtail Option
PT32-FLEX Transfer Switch, 2 position 4 poles with 6 feet Pigtail Option

XLTX 5-Motion, 3-Speed with Flex M-32
XLTXSYS-5L-5M-3S System includes (1) XLTX with 5 levers, 3 speed, graphic display, (3) aux toggles, (1) Independent/Tandem selector, (1) e-stop, (1) on/off/start switch and (1) Flex M, 32 output. Shoulder strap, (2) alkaline battery holders, and user manual. Call
314-884-8884
or Email for pricing.
XLTX-5L-5M-3S Spare XLTX transmitter* - Required information: Job Number from the original system.
P32-FLEX with 6 feet Pigtail Option
PT32-FLEX Transfer Switch, 2 position 4 poles with 6 feet Pigtail Option

Optional Parts
BT128-0 BT-128 Rechargeable NiMH Battery Pack Call
314-884-8884
or Email for pricing.
E10761-0 Battery Charger with 120 Vac Power Adapter for BT-128 battery
E10761-1 Battery Charger with 12-24 Vdc Power Adapter for BT-128 battery
E10761-2 Battery Charger with Parallel Adapter Cable for BT-128 battery
E10761-3 Battery Charger Kit for BT-128 – includes two BT-128 batteries and 120 Vac Power Adapter
E10761-4 Battery Charger Kit for BT-128 – includes two BT-128 batteries and 9-36 Vdc Power Adapter
E10761-5 Battery Charger Kit for BT-128 – includes two BT-128 batteries and Parallel Adapter Cable
BT129-0 Alkaline Battery Holder
AN20B-FLEX Receiver Remote Antenna Kit (20 foot cable and bracket)
MP10770-0 Rubber Boot for Levers

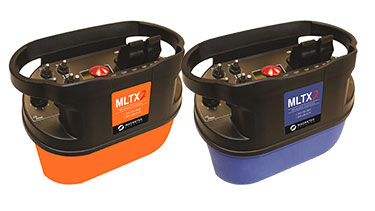

New Magnetek MLTX2 Belly Box Transmitter
  • Easily upload new programming in the field with USB connection
  • Optional graphic display keeps the operator informed of system status at all times, and makes configuring access codes, channels, and other system settings simple
  • Two-way feedback available, showing crane drives parameters, hoist load, and drive diagnostics. This is done using our radio drive serial interface (RDSI).
  • Several frequency options including 400MHz, 900MHz, and 2.4GHz
  • Choose up to 6 levers or 2 joysticks
  • Side mounted key switch and code plug
  • Choose up to 6 toggles; mushroom E-stop
  • Available proportional, 1, 2, 3, or 5 speeds in a non-detent lever or joystick

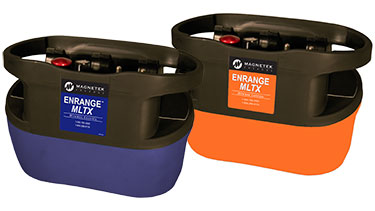

MLTX Class 1, Div 2 Explosion Proof Transmitter

The MLTX has optional certification for use in hazardous locations requiring ISA 12.12.01 Class 1 and Class 2 Division 2, Group A, B, C, D, E, F and G. These are ideal for oil rig and clean room applications.

Telemotive MLTX Model Number Description Pricing

3-Motion, 2-Speed with 3 aux. Functions or A, A+B, B and 1 aux. Function
MLTXSYS-3L-3M-2S System, consisting of (1) MLTX transmitter with 3 levers, (1) inteleSmart 12 output receiver, (2) rechargeable NiMH Batteries and (1) battery charger designed for 3-motion, 2-speed with 3 aux. functions or A, A+B, B and 1 aux. function Call
314-884-8884
or Email for pricing.
MLTX-3L-3M-2S Spare MLTX transmitter* - Required information: Job Number from the original system.
PT-12 For a 6 foot pigtail cord and transfer switch

3-Motion, 3-Speed with 6 aux. Functions
MLTXSYS-3L-3M-3S System, consisting of (1) MLTX transmitter with 3 levers, (1) inteleSmart 24 output receiver, (2) rechargeable NiMH Batteries and (1) battery charger designed for 3-motion, 3-speed with 6 aux. functions Call
314-884-8884
or Email for pricing.
MLTX-3L-3M-3S Spare MLTX transmitter* - Required information: Job Number from the original system.
PT-24 For a 6 foot pigtail cord and transfer switch

5-Motion, 3-Speed with 4. aux. Functions or 3-Motion, 3-Speed with A, A+B, B and 4 aux. Functions
MLTXSYS-3L-5M-3S System, consisting of (1) MLTX transmitter with 3 levers, (1) inteleSmart 24 output receiver, (2) rechargeable NiMH Batteries and (1) battery charger designed for 5-motion, 3-speed with 4 aux. functions or 3-motion, 3-speed with A, A+B, B and 4 aux. functions Call
314-884-8884
or Email for pricing.
MLTX-3L-5M-3S Spare MLTX transmitter* - Required information: Job Number from the original system.
PT-24 For a 6 foot pigtail cord and transfer switch

3-Motion, 5-Speed with A, A+B, B and 4 aux. Functions
MLTXSYS-3L-3M-5S System, consisting of (1) MLTX transmitter with 3 levers, (1) inteleSmart 24 output receiver, (2) rechargeable NiMH Batteries and (1) battery charger designed for 3-motion, 5-speed with A, A+B, B and 4 aux. functions Call
314-884-8884
or Email for pricing.
MLTX-3L-3M-5S Spare MLTX transmitter* - Required information: Job Number from the original system.

4-Motion, 3-Speed with 4 aux. Functions
MLTXSYS-4L-4M-3S System, consisting of (1) MLTX transmitter with 4 levers, (1) inteleSmart 24 output receiver, (2) rechargeable NiMH Batteries and (1) battery charger designed for 4-motion, 3-speed with 4 aux. functions Call
314-884-8884
or Email for pricing.
MLTX-4L-4M-3S Spare MLTX transmitter* - Required information: Job Number from the original system.

5-Motion, 3-Speed with 4 aux. Functions
MLTXSYS-5L-5M-3S System, consisting of (1) MLTX transmitter with 5 levers, (1) inteleSmart 24 output receiver, (2) rechargeable NiMH Batteries and (1) battery charger designed for 5-motion, 3-speed with 4 aux. functions Call
314-884-8884
or Email for pricing.
MLTX-5L-5M-3S Spare MLTX transmitter* - Required information: Job Number from the original system.

Optional Parts
2008 Waist belt (Standard MLTX comes with a shoulder strap). Waist belt available for the MLTX transmitter. Call
314-884-8884
or Email for pricing.
BT113-0 Disposable alkaline battery pack for the MLTX transmitter
BT114-0 Rechargeable NiMH Battery six cell—Most MLTX transmitters use this type of battery.
E10757-0 Battery Charger—Designed to recharge the BT114-0 battery. It comes with a 120 VAC power adapter.
E10757-1 Piggyback Battery Charger—This charger plugs into the E10757-0 battery charger without using additional AC outlets. Up to three charging units can be charged from one AC adapter.
MP10770-0 Boot for Levers - Protective neoprene boot for MLTX lever
E2028-2 Receiver Remote Antenna Kit - Consisting of 40 feet of co-axial cable and antenna base, which optimizes the radio signal for your crane.
E2028-4 Receiver Panel Antenna Kit (Secondary Enclosure) - Designed for radios that are mounted inside a panel. This kit consists of a BNC-BNC bulkhead fitting and 4 feet of co-axial cable.



Radio Drive Serial Interface (RDSI) Option

The RDSI module is designed to communicate via a serial interface to directly control Magnetek's Impulse G+ Series 4 and IMPULSE G+ Mini Variable Frequency Crane Controls. It provides users with diagnostic information on the ground to prevent the maintenance staff from having to climb on the crane to troubleshoot a problem.

  • Automatically detects drive types
  • Eliminates the need for drive contactors
  • Provides feedback parameters directly from the drive, including Drive Status, Output Frequency, Output Voltage, Output Current, Output Power, and Torque Reference
  • Reduces system costs by eliminating relay cards, excessive wiring and labor



Enrange Flex M Wireless Receiver

The Flex M receiver features a modular plug-and-play design which allows one plant to use the same type of receiver component for any size application.

Each essential part of a wireless receiver is built into compact, machine mountable modules. The family of modules can then be combined together to form a complete radio receiver system. The versatile Flex M can provide digital, analog or serial interfaces, and is capable of one-way or two-way communication.

Standard System Components:

Each module is connected by an integral side connector that supplies internal communications and power.

  • Consists of a RF/CPU serving as the brains of the system
  • Another component is the selected power module
  • As many output (relay or other) or input modules as needed for the application can be added
