Mondel Brakes – Industrial Shoe and Thruster Brakes for Overhead Cranes



Magnetek can furnish standard and custom engineered Mondel Brakes to meet the requirements of your application. Our engineers design brakes with simple brake release designs, unique torque or dimensional requirements, and brakes that meet specific environmental considerations. Let one of Ergonomic Partners crane engineers help size the Mondel Brake that will help improve your cranes performance.

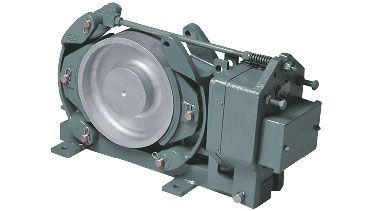

Mondel 200S Hi-Tork Industrial Duty Shoe Brakes

Magnetek's heavy-duty, cost effective brakes are quickly becoming the industry leader. Mondel's General Purpose and Industrial Shoe Brakes are designed with a minimum of moving parts. This provides and extremely reliable range of brakes that are easy to install, adjust and maintain. There are three different models of the 200S brakes:

  • Type MST - Electric Thruster
  • Type MSA – DC Magnet
  • Type MSH – Hyraulic



The MST thruster brake has several features and options:

  • Fast Response – standard units 2,000 cycles per hour
  • Spring Applied and Electronic Release
  • Class F Insulation
  • Optional Automatic Adjustment (AA) - automatically compensates for lining wear; eliminates time required to manually adjust linkages for brake shoe lining wear.
  • Optional Automatic Equalization (AE) – automatically equalizes and maintains running shoe clearance which provides balanced braking and equal brake pad wear.
  • Optional external torque spring for bridge and trolley motion.



Mondel Brake 200S Spare Parts
All prices shown in US Dollars. Data and prices subject to change without notice.
Part Number Description Price (each)

Recommended Spare Parts for 4" SA1 Brake
4SA-SALS "SA" Lined shoe $250.00
4SA-SAES "SA" Exchange shoe (Requires return of worn shoes to Magnetek) $125.00
4SA-TS Torque springs/collars (kit) $105.00
4SA-PIV Pivot pin (7 on a brake) (price per pin) $49.00
4SA-ROD Pushrod assembly $160.00
4SA-MA Magnet assembly, 105 VDC $1,250.00
4SA-MA-SERIES Magnet assembly, DC Series shunt $1,370.00

Recommended Spare Parts for 6" SA1 Brake
6SA-SALS "SA" Lined shoe $296.00
6SA-SAES "SA" Exchange shoe - (Requires return of worn shoes to Magnetek) $148.00
6SA-TS Torque springs/collars (kit) $120.00
6SA-PIV Pivot pin (7 on a brake) (price per pin) $60.00
6SA-ROD Pushrod assembly $212.00
6SA-MA Magnet assembly, 105 VDC $1,350.00
6SA-MA-SERIES Magnet assembly, DC Series shunt $1,515.00

Recommended Spare Parts for 8" SA1 Brake
8SA-SALS "SA" Lined shoe $324.00
8SA-SAES "SA" Exchange shoe - (Requires return of worn shoes to Magnetek) $162.00
8SA-TS Torque springs/collars (kit) $140.00
8SA-PIV Pivot pin (7 on a brake) (price per pin) $84.00
8SA-ROD Pushrod assembly $267.00
8SA-MA Magnet assembly, 105 VDC $1,755.00
8SA-MA-SERIES Magnet assembly, DC Series shunt $2,015.00

Recommended Spare Parts for 10" SA1 Brake
10SA-SALS "SA" Lined shoe $357.00
10SA-SAES "SA" Exchange shoe - (Requires return of worn shoes to Magnetek) $179.00
10SA-TS Torque springs/collars (kit) $160.00
10SA-PIV Pivot pin (7 on a brake) (price per pin) $86.00
10SA-ROD Pushrod assembly $283.00
10SA-MA Magnet assembly, 105 VDC $2,205.00
10SA-MA-SERIES Magnet assembly, DC Series shunt $2,475.00

Recommended Spare Parts for 12" SA1 Brake
12SA-SALS "SA" Lined shoe $490.00
12SA-SAES "SA" Exchange shoe - (Requires return of worn shoes to Magnetek) $245.00
1213SA-TS Torque springs/collars (kit) $200.00
12SA-PIV Pivot pin (7 on a brake) (price per pin) $112.00
12SA-ROD Pushrod assembly $350.00
12SA-MA Magnet assembly, 105 VDC $3,065.00
12SA-MA-SERIES Magnet assembly, DC Series shunt $3,498.00

Recommended Spare Parts for 13" SA1 Brake
13SA-SALS "SA" Lined shoe $490.00
13SA-SAES "SA" Exchange shoe - (Requires return of worn shoes to Magnetek) $245.00
1213SA-TS Torque springs/collars (kit) $200.00
13SA-PIV Pivot pin (7 on a brake) (price per pin) $112.00
13SA-ROD Pushrod assembly $350.00
13SA-MA Magnet assembly, 105 VDC $3,065.00
13SA-MA-SERIES Magnet assembly, DC Series shunt $3,498.00

Recommended Spare Parts for 15" SA1 Brake
15SA-SALS "SA" Lined shoe $730.00
15SA-SAES "SA" Exchange shoe - (Requires return of worn shoes to Magnetek) $365.00
1516SA-TS Torque springs/collars (kit) $225.00
15SA-PIV Pivot pin (7 on a brake) (price per pin) $160.00
15SA-ROD Pushrod assembly $505.00
15SA-MA Magnet assembly, 105 VDC $4,250.00
15SA-MA-SERIES Magnet assembly, DC Series shunt $4,990.00

Recommended Spare Parts for 16" SA1 Brake
16SA-SALS "SA" Lined shoe $730.00
16SA-SAES "SA" Exchange shoe - (Requires return of worn shoes to Magnetek) $365.00
1516SA-TS Torque springs/collars (kit) $225.00
16SA-PIV Pivot pin (7 on a brake) (price per pin) $160.00
16SA-ROD Pushrod assembly $505.00
16SA-MA Magnet assembly, 105 VDC $4,250.00
16SA-MA-SERIES Magnet assembly, DC Series shunt $4,990.00

Recommended Spare Parts for 6" ST and ST/E Brake
6ST-STLS "ST" Lined shoe $296.00
6ST-STES "ST" Exchange shoe - (Requires return of worn shoes to Magnetek) $148.00
6ST-PIV Pivot pin (10) for ST or (13) for ST/E brake (price per pin) $60.00
6ST-ROD Pushrod assembly $212.00
6ST-AA Automatic Adjustment (AA) $1,065.00

Recommended Spare Parts for 8" ST and ST/E Brake
8ST-STLS "ST" Lined shoe $324.00
8ST-STES "ST" Exchange shoe - (Requires return of worn shoes to Magnetek) $162.00
8ST-PIV Pivot pin (10) for ST or (13) for ST/E brake (price per pin) $84.00
8ST-ROD Pushrod assembly $267.00
8ST-AA Automatic Adjustment (AA) $1,090.00

Recommended Spare Parts for 10" ST and ST/E Brake
10ST-STLS "ST" Lined shoe $357.00
10ST-STES "ST" Exchange shoe - (Requires return of worn shoes to Magnetek) $179.00
10ST-PIV Pivot pin (10) for ST or (13) for ST/E brake (price per pin) $86.00
10ST-ROD Pushrod assembly $283.00
10ST-AA Automatic Adjustment (AA) $1,190.00

Recommended Spare Parts for 12" ST and ST/E Brake
12ST-STLS "ST" Lined shoe $490.00
12ST-STES "ST" Exchange shoe - (Requires return of worn shoes to Magnetek) $245.00
12ST-PIV Pivot pin (10) for ST or (13) for ST/E brake (price per pin) $112.00
12ST-ROD Pushrod assembly $350.00
12ST-AA Automatic Adjustment (AA) $1,365.00

Recommended Spare Parts for 13" ST and ST/E Brake
13ST-STLS "ST" Lined shoe $490.00
13ST-STES "ST" Exchange shoe - (Requires return of worn shoes to Magnetek) $245.00
13ST-PIV Pivot pin (10) for ST or (13) for ST/E brake (price per pin) $112.00
13ST-ROD Pushrod assembly $350.00
13ST-AA Automatic Adjustment (AA) $1,365.00

Recommended Spare Parts for 15" ST and ST/E Brake
15ST-STLS "ST" Lined shoe $730.00
15ST-STES "ST" Exchange shoe - (Requires return of worn shoes to Magnetek) $365.00
15ST-PIV Pivot pin (10) for ST or (13) for ST/E brake (price per pin) $160.00
15ST-ROD Pushrod assembly $505.00
15ST-AA Automatic Adjustment (AA) $2,810.00

Recommended Spare Parts for 16" ST and ST/E Brake
16ST-STLS "ST" Lined shoe $730.00
16ST-STES "ST" Exchange shoe - (Requires return of worn shoes to Magnetek) $365.00
16ST-PIV Pivot pin (10) for ST or (13) for ST/E brake (price per pin) $160.00
16ST-ROD Pushrod assembly $505.00
16ST-AA Automatic Adjustment (AA) $2,810.00

Recommended Spare Parts for 19" ST and ST/E Brake
19ST-STLS "ST" Lined shoe $1,197.00
19ST-STES "ST" Exchange shoe - (Requires return of worn shoes to Magnetek) $598.00
19ST-PIV Pivot pin (10) for ST or (13) for ST/E brake (price per pin) $235.00
19ST-ROD Pushrod assembly $1,070.00
19ST-AA Automatic Adjustment (AA) $3,630.00

Hydraulics for SA, ST and ST/E Brake
SA/ST/STE-SLAVE Slave cylinder (on brake) $996.00
SA/ST/STE-MASTER Master cylinder (on pedal) $1,025.00
SA/ST/STE-SLAVE-RPR Slave cylinder repair kit $117.00
SA/ST/STE-MASTER-RPR Master cylinder repair kit $83.00
SA/ST/STE-HP Hyd. Pedal w/master cylinder $2,510.00
SA/ST/STE-COPPER Copper tubing (25' x 5/16" OD) $245.00
SA/ST/STE-FLEXHOSE Flexible hose (up to 10ft) $136.00
SA/ST/STE-FLUID Hydraulic brake fluid (U.S. gallon) $96.00
All prices shown in US Dollars. Data and prices subject to change without notice.



Mondel 300M Hi-tork Mill Duty Shoe Brakes

Magnetek's AIST-NEMA rated mill duty brakes are designed for steel mill and other harsh environments. The 300M's advanced design features combined with fabricated steel construction make this range of brakes suitable for applications requiring reliable braking with minimal maintenance and downtime. These brakes are best suited for steel mills, port cranes, shipyard cranes, and large gantry cranes. There are three types of 300M Brakes:

  • Type MBT – Thruster
  • Type MBE – DC Magnet
  • Type MBM – Hydraulic



The MST and MBT thruster brake has several features and options:

  • Fast Response – standard units 2,000 cycles per hour
  • Spring Applied and Electronic Release
  • Class F Insulation
  • Optional Automatic Adjustment (AA) - automatically compensates for lining wear; eliminates time required to manually adjust linkages for brake shoe lining wear.
  • Optional Automatic Equalization (AE) – automatically equalizes and maintains running shoe clearance which provides balanced braking and equal brake pad wear.
  • Optional external torque spring for bridge and trolley motion.
  • Braketronic Control Capable



Mondel Brake 300M Spare Parts
All prices shown in US Dollars. Data and prices subject to change without notice.
Part Number Description Price (each)

Recommended Spare Parts for 5" BE Brake
5BE-MB-LS "MB" lined shoe $285.00
5BE-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $143.00
5BE-MB-L "MB" lining $44.00
5BE-BA Bushing Assembly $57.00
5BE-TS Torque spring $57.00
5BE-AA Auto adjustment (AA) $468.00
5BE-STATIC Static Coil $815.00
5BE-COIL Shunt, CP or Series Coil $945.00
5BE-INSUL Class H Insulation $140.00

Recommended Spare Parts for 8" BE Brake
8BE-MB-LS "MB" lined shoe $346.00
8BE-MB-RS "MB" relined shoe -(Requires return of worn shoes to Magnetek) $173.00
8BE-MB-L "MB" lining $70.00
8BE-BA Bushing Assembly $57.00
8BE-TS Torque spring $68.00
8BE-AA Auto adjustment (AA) $688.00
8BE-STATIC Static Coil $1,395.00
8BE-COIL Shunt, CP or Series Coil $1,615.00
8BE-INSUL Class H Insulation $173.00

Recommended Spare Parts for 10" BE Brake
10BE-MB-LS "MB" lined shoe $384.00
10BE-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $192.00
10BE-MB-L "MB" lining $79.00
10BE-BA Bushing Assembly $59.00
10BE-TS Torque spring $75.00
10BE-AA Auto adjustment (AA) $745.00
10BE-STATIC Static Coil $2,200.00
10BE-COIL Shunt, CP or Series Coil $2,470.00
10BE-INSUL Class H Insulation $197.00

Recommended Spare Parts for 13" BE Brake
13BE-MB-LS "MB" lined shoe $534.00
13BE-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $267.00
13BE-MB-L "MB" lining $176.00
13BE-BA Bushing Assembly $73.00
13BE-TS Torque spring $150.00
13BE-AA Auto adjustment (AA) $836.00
13BE-STATIC Static Coil $2,955.00
13BE-COIL Shunt, CP or Series Coil $3,335.00
13BE-INSUL Class H Insulation $236.00

Recommended Spare Parts for 16" BE Brake
16BE-MB-LS "MB" lined shoe $807.00
16BE-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $404.00
16BE-MB-L "MB" lining $246.00
16BE-BA Bushing Assembly $78.00
16BE-TS Torque spring $260.00
16BE-AA Auto adjustment (AA) $1,755.00
16BE-STATIC Static Coil $3,065.00
16BE-COIL Shunt, CP or Series Coil $3,745.00
16BE-INSUL Class H Insulation $298.00

Recommended Spare Parts for 19" BE Brake
19BE-MB-LS "MB" lined shoe $1,241.00
19BE-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $602.00
19BE-MB-L "MB" lining $298.00
19BE-BA Bushing Assembly $85.00
19BE-TS Torque spring $510.00
19BE-AA Auto adjustment (AA) $2,700.00
19BE-STATIC Static Coil $3,995.00
19BE-COIL Shunt, CP or Series Coil $4,590.00
19BE-INSUL Class H Insulation $396.00

Recommended Spare Parts for 23" BE Brake
23BE-MB-LS "MB" lined shoe $1,986.00
23BE-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $993.00
23BE-MB-L "MB" lining $646.00
23BE-BA Bushing Assembly $138.00
23BE-TS Torque spring $560.00
23BE-AA Auto adjustment (AA) $3,426.00
23BE-STATIC Static Coil $4,856.00
23BE-COIL Shunt, CP or Series Coil $6,265.00
23BE-INSUL Class H Insulation $523.00

Recommended Spare Parts for 30" BE Brake
30BE-MB-LS "MB" lined shoe $3,011.00
30BE-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $1,506.00
30BE-MB-L "MB" lining $1,207.00
30BE-BA Bushing Assembly $225.00
30BE-TS Torque spring $1,150.00
Factory Auto adjustment (AA) Call 314-884-8884
or Email for pricing.
30BE-STATIC Static Coil $6,089.00
30BE-COIL Shunt, CP or Series Coil $8,156.00
30BE-INSUL Class H Insulation $841.00

Recommended Spare Parts for 5" BT Brake
5BT-MB-LS "MB" lined shoe $285.00
5BT-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $143.00
5BT-MB-L "MB" lining $44.00
5BT-BA Bushing Assembly $57.00
5BT-AA Auto adjustment (AA) $1,065.00

Recommended Spare Parts for 8" BT Brake
8BT-MB-LS "MB" lined shoe $346.00
8BT-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $173.00
8BT-MB-L "MB" lining $70.00
8BT-BA Bushing Assembly $57.00
8BT-AA Auto adjustment (AA) $1,090.00

Recommended Spare Parts for 10" BT Brake
10BT-MB-LS "MB" lined shoe $384.00
10BT-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $192.00
10BT-MB-L "MB" lining $79.00
10BT-BA Bushing Assembly $59.00
10BT-AA Auto adjustment (AA) $1,190.00

Recommended Spare Parts for 13" BT Brake
13BT-MB-LS "MB" lined shoe $534.00
13BT-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $267.00
13BT-MB-L "MB" lining $176.00
13BT-BA Bushing Assembly $73.00
13BT-AA Auto adjustment (AA) $1,365.00

Recommended Spare Parts for 16" BT Brake
16BT-MB-LS "MB" lined shoe $807.00
16BT-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $404.00
16BT-MB-L "MB" lining $246.00
16BT-BA Bushing Assembly $78.00
16BT-AA Auto adjustment (AA) $2,810.00

Recommended Spare Parts for 19" BT Brake
19BT-MB-LS "MB" lined shoe $1,241.00
19BT-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $602.00
19BT-MB-L "MB" lining $298.00
19BT-BA Bushing Assembly $85.00
19BT-AA Auto adjustment (AA) $3,630.00

Recommended Spare Parts for 23" BT Brake
23BT-MB-LS "MB" lined shoe $1,986.00
23BT-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $993.00
23BT-MB-L "MB" lining $646.00
23BT-BA Bushing Assembly $138.00
23BT-AA Auto adjustment (AA) $4,865.00

Recommended Spare Parts for 30" BT Brake
30BT-MB-LS "MB" lined shoe $3,011.00
30BT-MB-RS "MB" relined shoe - (Requires return of worn shoes to Magnetek) $1,506.00
30BT-MB-L "MB" lining $1,207.00
30BT-BA Bushing Assembly $225.00
Factory Auto adjustment (AA) Call 314-884-8884
or Email for pricing.
All prices shown in US Dollars. Data and prices subject to change without notice.



Mondel 400D Heavy Duty Disc Brakes

Magnetek 400D heavy duty disc brakes are designed for high speed, high performance applications. They are manufactured from materials selected to optimize performance and serviceability for the most demanding applications. There are two types available:

  • Type SDT - conform to container and industry ratings and dimensions
  • Type ADT – Conform to AIST ratings and dimensions



The 400D has several features and options:

  • Spring applied – electrically released
  • Sintered metal friction pads on quick replacement liners
  • Stainless steel pivot pins running in self-lubricating bushings
  • Optional external torque spring with calibrated indicator
  • Externally adjustable stepless time delays in both directions.



Braketronic Systems – "Brake by Wire"

Magneteks Braketronic Controller provides variable torque control to a Mondel Thruster Shoe or Disc Brake. By utilizing a Braketronic unit, single or multiple brakes can be proportionally controlled by a foot pedal, master switch, or radio control. The controller can also be configured to apply the brakes by pre-programmed ramping initiated by the use of a single-step control device. The Braketronic is ideal for replacing existing hydraulic systems and provides a fail-safe emergency braking for overhead crane applications.

The Braketronic System has several features and options:

  • Variable torque brake performance controlled by foot pedal or radio.
  • Pre-programmed ramping controlled by push-buttons
  • Control single or multiple brakes
  • Suitable for industrial or mill duty applications.
  • Optional enclosure heaters for low ambient temperatures



Please contact Ergonomic Partners today for assistance with your crane brake applications.



Ergonomic Partners services and is a distributor for Gorbel Jib Cranes in Missouri, Illinois, Indiana, Kansas, Tennessee, Kentucky, Iowa, and Oklahoma.
