Magnetek Pendant Push Button Stations - SBP2 and SBN

Ergonomic Partners provides SBP2 and SBN crane pendant stations from Electromotive and Magnetek in 2 button, 3 button, 4 button, 5 button, 6 button, 7 button, 8 button, 10 button, and 12 button configurations. The push button control stations are offered in 1, 2 or 3 speed button operations. All of these pendant controllers can be custom configured to meet the demands of any industrial application from vehicle mounted machinery, vehicle booms, overhead cranes, mobile equipment, mobile cranes, vacuum trucks, stacker conveyors, trenchers, grinders, concrete mixers, and more.

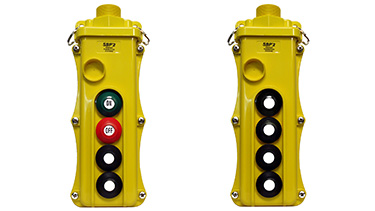

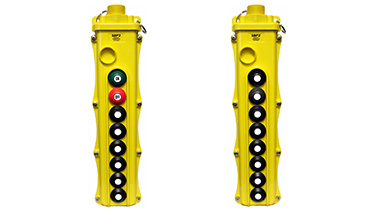

Magnetek SBP2 Pendant Push Button Stations

• UL/cUL/CSA Listed. Impact resistant enclosure is double insulated, chemically resistant, rated NEMA 1, 3, 4, 4X and 12. Operating temperature: -10° F to 150° F.
• 2, 4, 6, 8, 10 or 12 button configurations 1, 2 or 3 speed button operation. Mechanical interlocks on Single -and Two-speed switches for enhanced safety.
• Switches are rated 3 Amp, 250 Volt AC. Cumulative contacts on Two- and Three-speed switches provide precise detent feel.
• Easy-to-read button functions with easily removable button hoods and nameplates. Dual stainless steel hanger rings for external strain relief cable.

Standard Pre-Configured SBP2 Product Chart
Part Number	Description
SBP2-2-CUSTOM	Customizable 2-Button Push Button Station
SBP2-2-WB	2-Button with Momentary On/Off
SBP2-2-WH	2-Button with Maintained On/Off
SBP2-2-WA	2-Button - All Single Speed
SBP2-2-WS	2-Button - All Two Speed
SBP2-2-WT	2-Button - All Three Speed
SBP2-4-CUSTOM	Customizable 4-Button Push Button Station
SBP2-4-WB	4-Button (2) Single Speed with Momentary On/Off
SBP2-4-WBS	4-Button (2) Two Speed with Momentary On/Off
SBP2-4-WBT	4-Button (2) Three Speed with Momentary On/Off
SBP2-4-WH	4-Button (2) Single Speed with Maintained On/Off
SBP2-4-WHS	4-Button (2) Two Speed with Maintained On/Off
SBP2-4-WHT	4-Button (2) Three Speed with Maintained On/Off
SBP2-4-WA	4-Button - All Single Speed
SBP2-4-WS	4-Button - All Two Speed
SBP2-4-WT	4-Button - All Three Speed
SBP2-6-CUSTOM	Customizable 6-Button Push Button Station
SBP2-6-WB	6-Button (4) Single Speed with Momentary On/Off
SBP2-6-WBS	6-Button (4) Two Speed with Momentary On/Off
SBP2-6-WBT	6-Button (4) Three Speed with Momentary On/Off
SBP2-6-WH	6-Button (4) Single Speed with Maintained On/Off
SBP2-6-WHS	6-Button (4) Two Speed with Maintained On/Off
SBP2-6-WHT	6-Button (4) Three Speed with Maintained On/Off
SBP2-6-WA	6-Button - All Single Speed
SBP2-6-WS	6-Button - All Two Speed
SBP2-6-WT	6-Button - All Three Speed
SBP2-8-CUSTOM	Customizable 8-Button Push Button Station
SBP2-8-WB	8-Button (6) Single Speed with Momentary On/Off
SBP2-8-WBS	8-Button (6) Two Speed with Momentary On/Off
SBP2-8-WBT	8-Button (6) Three Speed with Momentary On/Off
SBP2-8-WH	8-Button (6) Single Speed with Maintained On/Off
SBP2-8-WHS	8-Button (6) Two Speed with Maintained On/Off
SBP2-8-WHT	8-Button (6) Three Speed with Maintained On/Off
SBP2-8-WA	8-Button - All Single Speed
SBP2-8-WS	8-Button - All Two Speed
SBP2-8-WT	8-Button - All Three Speed
SBP2-10-CUSTOM	Customizable 10-Button Push Button Station
SBP2-10-WB	10-Button (8) Single Speed with Momentary On/Off
SBP2-10-WBS	10-Button (8) Two Speed with Momentary On/Off
SBP2-10-WBT	10-Button (8) Three Speed with Momentary On/Off
SBP2-10-WH	10-Button (8) Single Speed with Maintained On/Off
SBP2-10-WHS	10-Button (8) Two Speed with Maintained On/Off
SBP2-10-WHT	10-Button (8) Three Speed with Maintained On/Off
SBP2-10-WA	10-Button - All Single Speed
SBP2-10-WS	10-Button - All Two Speed
SBP2-10-WT	10-Button - All Three Speed
SBP2-12-CUSTOM	Customizable 12-Button Push Button Station
SBP2-12-WB	12-Button (10) Single Speed with Momentary On/Off
SBP2-12-WBS	12-Button (10) Two Speed with Momentary On/Off
SBP2-12-WBT	12-Button (10) Three Speed with Momentary On/Off
SBP2-12-WH	12-Button (10) Single Speed with Maintained On/Off
SBP2-12-WHS	12-Button (10) Two Speed with Maintained On/Off
SBP2-12-WHT	12-Button (10) Three Speed with Maintained On/Off
SBP2-12-WA	12-Button - All Single Speed
SBP2-12-WS	12-Button - All Two Speed
SBP2-12-WT	12-Button - All Three Speed

SBN Pendant Push Button Stations

• Polycarbonate pendant enclosure is double insulated, chemically resistant and rated NEMA 4/4x. Operating temperature range: -5° F to 150° F.
• Single and Two Speed button pairs feature mechanical interlocks for greater safety. Switches are rated for 3 Amps, 250 Volts AC.
• External strain relief hardware and an internal cable grip relieve tension on individual conductors and allow the pendant to be serviced while hanging on the pendant cable.
• Tapered round cable entry gland provides a water tight seal, while a slide-on rubber boot provides added water protection.
• On 6- to 12-button models, a shrouded knock-out hole is provided for the installation of a pilot light or horn accessory.
• Switches are designed with visible contacts to ease wiring; a pre-wired common circuit simplifies wiring of switches.
• Standard units ship from stock, factory pre-wired pendants ship with minimal lead-time.

Standard Pre-Configured SBN Product Chart
Part Number	Description
SBN-2-WB	2-Button - Momentary On/Off
SBN-2-WH	2-Button - Maintained On/Off
SBN-2-WA	2-Button - All Single Speed
SBN-2-WS	2-Button - All Two Speed
SBN-2-WT	2-Button - All Three Speed
SBN-3-WA	3-Button - All Single-Speed
SBN-3-WE	3-Button - E-Stop (Rotate to Release) with (2) Single-Speed
SBN-3-WES	3-Button - E-Stop (Rotate to Release) with (2) Two-Speed
SBN-3-WET	3-Button - E-Stop (Rotate to Release) with (2) Three-Speed
SBN-4-WB	4-Button - Momentary On/Off with (2) Single Speed
SBN-4-WBS	4-Button - Momentary On/Off with (2) Two Speed
SBN-4-WBT	4-Button - Momentary On/Off with (2) Three Speed
SBN-4-WH	4-Button - Maintained On/Off with (2) Single Speed
SBN-4-WHS	4-Button - Maintained On/Off with (2) Two Speed
SBN-4-WHT	4-Button - Maintained On/Off with (2) Three Speed
SBN-4-WA	4-Button - All Single Speed
SBN-4-WS	4-Button - All Two Speed
SBN-4-WT	4-Button - All Three Speed
SBN-5-WA	5-Button - All Single-Speed
SBN-5-WE	5-Button - E-Stop (Rotate to Release) with Single-Speed
SBN-5-WES	5-Button - E-Stop (Rotate to Release) with Two-Speed
SBN-5-WET	5-Button - E-Stop (Rotate to Release) with Three-Speed
SBN-6-WB	6-Button - Momentary On/Off with (4) Single Speed
SBN-6-WBS	6-Button - Momentary On/Off with (4) Two Speed
SBN-6-WBT	6-Button - Momentary On/Off with (4) Three Speed
SBN-6-WH	6-Button - Maintained On/Off with (4) Single Speed
SBN-6-WHS	6-Button - Maintained On/Off with (4) Two Speed
SBN-6-WHT	6-Button - Maintained On/Off with (4) Three Speed
SBN-6-WA	6-Button - All Single Speed
SBN-6-WS	6-Button - All Two Speed
SBN-6-WT	6-Button - All Three Speed
SBN-7-WA	7-Button - All Single-Speed
SBN-7-WE	7-Button - E-Stop (Rotate to Release) with Single-Speed
SBN-7-WES	7-Button - E-Stop (Rotate to Release) with Two-Speed
SBN-7-WET	7-Button - E-Stop (Rotate to Release) with Three-Speed
SBN-8-WB	8-Button - Momentary On/Off with (6) Single Speed
SBN-8-WBS	8-Button - Momentary On/Off with (6) Two Speed
SBN-8-WBT	8-Button - Momentary On/Off with (6) Three Speed
SBN-8-WH	8-Button - Maintained On/Off with (6) Single Speed
SBN-8-WHS	8-Button - Maintained On/Off with (6) Two Speed
SBN-8-WHT	8-Button - Maintained On/Off with (6) Three Speed
SBN-8-WA	8-Button - All Single Speed
SBN-8-WS	8-Button - All Two Speed
SBN-8-WT	8-Button - All Three Speed
SBN-10-WB	10-Button - Momentary On/Off with (8) Single Speed
SBN-10-WBS	10-Button - Momentary On/Off with (8) Two Speed
SBN-10-WBT	10-Button - Momentary On/Off with (8) Three Speed
SBN-10-WH	10-Button - Maintained On/Off with (8) Single Speed
SBN-10-WHS	10-Button - Maintained On/Off with (8) Two Speed
SBN-10-WHT	10-Button - Maintained On/Off with (8) Three Speed
SBN-10-WA	10-Button - All Single Speed
SBN-10-WS	10-Button - All Two Speed
SBN-10-WT	10-Button - All Three Speed
SBN-12-WB	12-Button - Momentary On/Off with (10) Single Speed
SBN-12-WBS	12-Button - Momentary On/Off with (10) Two Speed
SBN-12-WBT	12-Button - Momentary On/Off with (10) Three Speed
SBN-12-WH	12-Button - Maintained On/Off with (10) Single Speed
SBN-12-WHS	12-Button - Maintained On/Off with (10) Two Speed
SBN-12-WHT	12-Button - Maintained On/Off with (10) Three Speed
SBN-12-WA	12-Button - All Single Speed
SBN-12-WS	12-Button - All Two Speed
SBN-12-WT	12-Button - All Three Speed

SBP2 and SBN Documents
