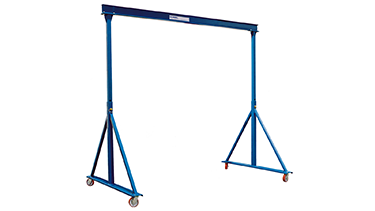

Adjustable Portable Gantry Cranes

Bestselling Gantry Cranes

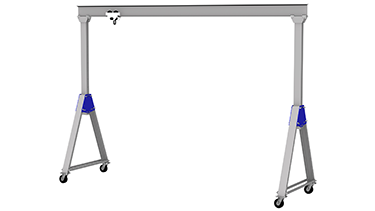

Aluminum Gantry Crane


Prices from - $2,094

Fixed Height Gantry Crane


Prices from - $1,622

We have the gantry crane for your application. Portable gantry cranes are perfect for applications where you need a portable and economical way to lift materials anywhere in your facility. The durable polyurethane casters to allow ease of movement around your facility.

An overhead gantry crane provides a cost-effective lifting solution for areas of infrequent lifts than a more permanent jib crane or overhead bridge crane. These portable cranes provide a heavy duty end frame design with square tubing uprights, knee braces and channel base which provide a very stable base.

Safety for your gantry crane is insured with the bolted connection between the beam and upright. These portable gantry cranes are pre-engineered for use with manual hoists or electric hoists. These cranes are have a factor of 15% of crane capacity for the hoist and trolley weight, with an additional 25% of the capacity allowed for impact. You can use your portable crane at its full capacity and not worry about overloading.

Gorbel fixed and adjustable gantry cranes are available in capacities up to 5 ton and spans up to 30 feet. All Gorbel cranes are CE certified and have a capacity placard installed before shipping that display the CE logo.

Gantry Crane Applications:
  • Lifting materials anywhere in a facility where an overhead crane is needed
  • Localized handling utilizing the safety of a gantry crane
  • Over machines for maintenance and pulling product using a safer crane alternative in lieu of a forklift
  • Anywhere overhead lifting equipment is needed on an infrequent basis
Gorbel Portable Adjustable Height Gantry Cranes Models and Technical Specifications
STANDARD BOOM DATA Gorbel Gantry Crane Dimensions
Boom
Height
(W)
Beam Size Flange
Width
(in)
6" S6 @ 12.5#/ft. 3-3/8"
8" W8 @ 18#/ft. 5-1/4"
10" S10 @ 25.4#/ft. 4-5/8"
12" S12 @ 31.8#/ft. 5"
16" W16 @ 45#/ft. 7"
18" W18 @ 50#/ft. 7-1/2"
21" W21 @ 62#/ft. 8-1/4"
24" W24 @ 84#/ft. 9"
27" W27 @ 114#/ft. 10"
Gorbel 1-Ton Adjustable Height Portable Gantry Cranes
Cap.
in
Tons
H.U.B. (B) Span
(A)
Model No. Clear Span
(D)
I-Beam
Depth
(W)
Tread
(E)
Shipping
Weight
(lbs.)
Price
Min. Max.
1-Ton 7' 10' 8' AG-1-7/10-8 6' 10-5/8" 6" 78" 584 Click for pricing
9' 12' 8' AG-1-9/12-8 6' 10-5/8" 6" 78" 612 Click for pricing
12' 15' 8' AG-1-12/15-8 6' 9-5/8" 6" 78" 742 Click for pricing
15' 18' 8' AG-1-15/18-8 6' 9-5/8" 6" 78" 801 Click for pricing
17' 20' 8' AG-1-17/20-8 6' 9-5/8" 6" 78" 839 Click for pricing
7' 10' 10' AG-1-7/10-10 8' 10-5/8" 6" 78" 609 Click for pricing
9' 12' 10' AG-1-9/12-10 8' 10-5/8" 6" 78" 637 Click for pricing
12' 15' 10' AG-1-12/15-10 8' 9-5/8" 6" 78" 767 Click for pricing
15' 18' 10' AG-1-15/18-10 8' 9-5/8" 6" 78" 826 Click for pricing
17' 20' 10' AG-1-17/20-10 8' 9-5/8" 6" 78" 864 Click for pricing
7' 10' 12' AG-1-7/10-12 10' 10-5/8" 6" 78" 654 Click for pricing
9' 12' 12' AG-1-9/12-12 10' 10-5/8" 6" 78" 682 Click for pricing
12' 15' 12' AG-1-12/15-12 10' 9-5/8" 6" 78" 812 Click for pricing
15' 18' 12' AG-1-15/18-12 10' 9-5/8" 6" 78" 871 Click for pricing
17' 20' 12' AG-1-17/20-12 10' 9-5/8" 6" 78" 909 Click for pricing
7' 10' 15' AG-1-7/10-15 13' 10-5/8" 8" 78" 734 Click for pricing
9' 12' 15' AG-1-9/12-15 13' 10-5/8" 8" 78" 761 Click for pricing
12' 15' 15' AG-1-12/15-15 13' 9-5/8" 8" 78" 892 Click for pricing
15' 18' 15' AG-1-15/18-15 13' 9-5/8" 8" 78" 950 Click for pricing
17' 20' 15' AG-1-17/20-15 13' 9-5/8" 8" 78" 988 Click for pricing
7' 10' 20' AG-1-7/10-20 18' 10-5/8" 10" 78" 1012 Click for pricing
9' 12' 20' AG-1-9/12-20 18' 10-5/8" 10" 78" 1040 Click for pricing
12' 15' 20' AG-1-12/15-20 18' 9-5/8" 10" 78" 1170 Click for pricing
15' 18' 20' AG-1-15/18-20 18' 7-5/8" 10" 78" 1229 Click for pricing
17' 20' 20' AG-1-17/20-20 18' 7-5/8" 10" 78" 1267 Click for pricing
7' 10' 25' AG-1-7/10-25 23' 8-5/8" 12" 78" 1324 Click for pricing
9' 12' 25' AG-1-9/12-25 23' 8-5/8" 12" 78" 1352 Click for pricing
12' 15' 25' AG-1-12/15-25 23' 7-5/8" 12" 78" 1482 Click for pricing
15' 18' 25' AG-1-15/18-25 23' 7-5/8" 12" 78" 1546 Click for pricing
17' 20' 25' AG-1-17/20-25 23' 7-5/8" 12" 78" 1593 Click for pricing
7' 10' 30' AG-1-7/10-30 28' 8-5/8" 16" 78" 1884 Click for pricing
9' 12' 30' AG-1-9/12-30 28' 8-5/8" 16" 78" 1912 Click for pricing
12' 15' 30' AG-1-12/15-30 28' 7-5/8" 16" 78" 2042 Click for pricing
15' 18' 30' AG-1-15/18-30 28' 7-5/8" 16" 78" 2099 Click for pricing
17' 20' 30' AG-1-17/20-30 28' 7-5/8" 16" 78" 2136 Click for pricing
The model number designates the capacity, min/max height under boom, and overall span.
* Molded phenolic casters with a steel core are standard.
Gorbel 2-Ton Adjustable Height Portable Gantry Cranes
Cap.
in
Tons
H.U.B. (B) Span
(A)
Model No. Clear Span
(D)
I-Beam
Depth
(W)
Tread
(E)
Shipping
Weight
(lbs.)
Price
Min. Max.
2-Ton 7' 10' 8' AG-2-7/10-8 6' 9-5/8" 8" 78" 695 Click for pricing
9' 12' 8' AG-2-9/12-8 6' 9-5/8" 8" 78" 733 Click for pricing
12' 15' 8' AG-2-12/15-8 6' 8-5/8" 8" 78" 879 Click for pricing
15' 18' 8' AG-2-15/18-8 6' 6-5/8" 8" 78" 1062 Click for pricing
17' 20' 8' AG-2-17/20-8 6' 6-5/8" 8" 78" 1125 Click for pricing
7' 10' 10' AG-2-7/10-10 8' 9-5/8" 8" 78" 732 Click for pricing
9' 12' 10' AG-2-9/12-10 8' 9-5/8" 8" 78" 770 Click for pricing
12' 15' 10' AG-2-12/15-10 8' 8-5/8" 8" 78" 915 Click for pricing
15' 18' 10' AG-2-15/18-10 8' 6-5/8" 8" 78" 1099 Click for pricing
17' 20' 10' AG-2-17/20-10 8' 6-5/8" 8" 78" 1161 Click for pricing
7' 10' 12' AG-2-7/10-12 10' 9-5/8" 8" 78" 789 Click for pricing
9' 12' 12' AG-2-9/12-12 10' 9-5/8" 8" 78" 826 Click for pricing
12' 15' 12' AG-2-12/15-12 10' 8-5/8" 8" 78" 972 Click for pricing
15' 18' 12' AG-2-15/18-12 10' 6-5/8" 8" 78" 1156 Click for pricing
17' 20' 12' AG-2-17/20-12 10' 6-5/8" 8" 78" 1218 Click for pricing
7' 10' 15' AG-2-7/10-15 13' 9-5/8" 10" 78" 949 Click for pricing
9' 12' 15' AG-2-9/12-15 13' 9-5/8" 10" 78" 987 Click for pricing
12' 15' 15' AG-2-12/15-15 13' 8-5/8" 10" 78" 1132 Click for pricing
15' 18' 15' AG-2-15/18-15 13' 6-5/8" 10" 78" 1316 Click for pricing
17' 20' 15' AG-2-17/20-15 13' 6-5/8" 10" 78" 1378 Click for pricing
7' 10' 20' AG-2-7/10-20 18' 7-5/8" 12" 78" 1209 Click for pricing
9' 12' 20' AG-2-9/12-20 18' 7-5/8" 12" 78" 1247 Click for pricing
12' 15' 20' AG-2-12/15-20 18' 6-5/8" 12" 78" 1392 Click for pricing
15' 18' 20' AG-2-15/18-20 18' 6-5/8" 12" 78" 1570 Click for pricing
17' 20' 20' AG-2-17/20-20 18' 6-5/8" 12" 78" 1632 Click for pricing
7' 10' 25' AG-2-7/10-25 23' 7-5/8" 16" 78" 1700 Click for pricing
9' 12' 25' AG-2-9/12-25 23' 7-5/8" 16" 78" 1740 Click for pricing
12' 15' 25' AG-2-12/15-25 23' 6-5/8" 16" 78" 1883 Click for pricing
15' 18' 25' AG-2-15/18-25 23' 6-5/8" 16" 78" 1855 Click for pricing
17' 20' 25' AG-2-17/20-25 23' 6-5/8" 16" 78" 1917 Click for pricing
7' 10' 30' AG-2-7/10-30 28' 7-5/8" 24" 78" 3117 Click for pricing
9' 12' 30' AG-2-9/12-30 28' 7-5/8" 24" 78" 3155 Click for pricing
12' 15' 30' AG-2-12/15-30 28' 6-5/8" 24" 78" 3301 Click for pricing
15' 18' 30' AG-2-15/18-30 28' 6-5/8" 24" 78" 3473 Click for pricing
17' 20' 30' AG-2-17/20-30 28' 6-5/8" 24" 78" 3535 Click for pricing
The model number designates the capacity, min/max height under boom, and overall span.
* Molded phenolic casters with a steel core are standard.
Gorbel 3-Ton Adjustable Height Portable Gantry Cranes
Cap.
in
Tons
H.U.B. (B) Span
(A)
Model No. Clear Span
(D)
I-Beam
Depth
(W)
Tread
(E)
Shipping
Weight
(lbs.)
Price
Min. Max.
3-Ton 7' 10' 8' AG-3-7/10-8 6' 5-5/8" 10" 78" 840 Click for pricing
9' 12' 8' AG-3-9/12-8 6' 6-5/8" 10" 78" 888 Click for pricing
12' 15' 8' AG-3-12/15-8 6' 6-1/2" 10" 78" 1087 Click for pricing
15' 18' 8' AG-3-15/18-8 6' 5-1/2" 10" 78" 1354 Click for pricing
17' 20' 8' AG-3-17/20-8 6' 5-1/2" 10" 78" 1430 Click for pricing
7' 10' 10' AG-3-7/10-10 8' 6-5/8" 10" 78" 891 Click for pricing
9' 12' 10' AG-3-9/12-10 8' 6-5/8" 10" 78" 939 Click for pricing
12' 15' 10' AG-3-12/15-10 8' 6-1/2" 10" 78" 1138 Click for pricing
15' 18' 10' AG-3-15/18-10 8' 5-1/2" 10" 78" 1405 Click for pricing
17' 20' 10' AG-3-17/20-10 8' 5-1/2" 10" 78" 1481 Click for pricing
7' 10' 12' AG-3-7/10-12 10' 6-5/8" 10" 78" 962 Click for pricing
9' 12' 12' AG-3-9/12-12 10' 6-5/8" 10" 78" 1010 Click for pricing
12' 15' 12' AG-3-12/15-12 10' 6-1/2" 10" 78" 1209 Click for pricing
15' 18' 12' AG-3-15/18-12 10' 5-1/2" 10" 78" 1477 Click for pricing
17' 20' 12' AG-3-17/20-12 10' 5-1/2" 10" 78" 1553 Click for pricing
7' 10' 15' AG-3-7/10-15 13' 6-5/8" 12" 78" 1134 Click for pricing
9' 12' 15' AG-3-9/12-15 13' 6-5/8" 12" 78" 1182 Click for pricing
12' 15' 15' AG-3-12/15-15 13' 6-1/2" 12" 78" 1381 Click for pricing
15' 18' 15' AG-3-15/18-15 13' 5-1/2" 12" 78" 1648 Click for pricing
17' 20' 15' AG-3-17/20-15 13' 5-1/2" 12" 78" 1724 Click for pricing
7' 10' 20' AG-3-7/10-20 18' 6-5/8" 16" 78" 1559 Click for pricing
9' 12' 20' AG-3-9/12-20 18' 6-5/8" 16" 78" 1607 Click for pricing
12' 15' 20' AG-3-12/15-20 18' 6-1/2" 16" 78" 1806 Click for pricing
15' 18' 20' AG-3-15/18-20 18' 5-1/2" 16" 78" 2082 Click for pricing
17' 20' 20' AG-3-17/20-20 18' 5-1/2" 16" 78" 2158 Click for pricing
7' 10' 25' AG-3-7/10-25 23' 6-5/8" 18" 78" 1933 Click for pricing
9' 12' 25' AG-3-9/12-25 23' 6-5/8" 18" 78" 1981 Click for pricing
12' 15' 25' AG-3-12/15-25 23' 6-1/2" 18" 78" 2180 Click for pricing
15' 18' 25' AG-3-15/18-25 23' 5-1/2" 18" 78" 2285 Click for pricing
17' 20' 25' AG-3-17/20-25 23' 5-1/2" 18" 78" 2361 Click for pricing
7' 10' 30' AG-3-7/10-30 28' 6-5/8" 24" 78" 3199 Click for pricing
9' 12' 30' AG-3-9/12-30 28' 6-5/8" 24" 78" 3247 Click for pricing
12' 15' 30' AG-3-12/15-30 28' 5-1/2" 24" 78" 3446 Click for pricing
15' 18' 30' AG-3-15/18-30 28' 5-1/2" 24" 78" 3710 Click for pricing
17' 20' 30' AG-3-17/20-30 28' 5-1/2" 24" 78" 3780 Click for pricing
The model number designates the capacity, min/max height under boom, and overall span.
* Molded phenolic casters with a steel core are standard.
Gorbel 5-Ton Adjustable Height Portable Gantry Cranes
Cap.
in
Tons
H.U.B. (B) Span
(A)
Model No. Clear Span
(D)
I-Beam
Depth
(W)
Tread
(E)
Shipping
Weight
(lbs.)
Price
Min. Max.
5-Ton 7' 10' 8' AG-5-7/10-8 6' 6-1/2" 16" 78" 1131 Click for pricing
9' 12' 8' AG-5-9/12-8 6' 5-1/2" 16" 78" 1312 Click for pricing
12' 15' 8' AG-5-12/15-8 6' 5-1/2" 16" 78" 1450 Click for pricing
15' 18' 8' AG-5-15/18-8 6' 4-1/2" 16" 78" 1701 Click for pricing
17' 20' 8' AG-5-17/20-8 6' 3-1/2" 16" 78" 1941 Click for pricing
7' 10' 10' AG-5-7/10-10 8' 6-1/2" 16" 78" 1221 Click for pricing
9' 12' 10' AG-5-9/12-10 8' 5-1/2" 16" 78" 1402 Click for pricing
12' 15' 10' AG-5-12/15-10 8' 5-1/2" 16" 78" 1540 Click for pricing
15' 18' 10' AG-5-15/18-10 8' 4-1/2" 16" 78" 1791 Click for pricing
17' 20' 10' AG-5-17/20-10 8' 3-1/2" 16" 78" 2025 Click for pricing
7' 10' 12' AG-5-7/10-12 10' 6-1/2" 21" 78" 1535 Click for pricing
9' 12' 12' AG-5-9/12-12 10' 5-1/2" 21" 78" 1716 Click for pricing
12' 15' 12' AG-5-12/15-12 10' 5-1/2" 21" 78" 1854 Click for pricing
15' 18' 12' AG-5-15/18-12 10' 4-1/2" 21" 78" 2105 Click for pricing
17' 20' 12' AG-5-17/20-12 10' 3-1/2" 21" 78" 2345 Click for pricing
7' 10' 15' AG-5-7/10-15 13' 6-1/2" 24" 78" 2051 Click for pricing
9' 12' 15' AG-5-9/12-15 13' 5-1/2" 24" 78" 2232 Click for pricing
12' 15' 15' AG-5-12/15-15 13' 5-1/2" 24" 78" 2370 Click for pricing
15' 18' 15' AG-5-15/18-15 13' 4-1/2" 24" 78" 2621 Click for pricing
17' 20' 15' AG-5-17/20-15 13' 3-1/2" 24" 78" 2861 Click for pricing
7' 10' 20' AG-5-7/10-20 18' 6-1/2" 24" 78" 2471 Click for pricing
9' 12' 20' AG-5-9/12-20 18' 5-1/2" 24" 78" 2652 Click for pricing
12' 15' 20' AG-5-12/15-20 18' 5-1/2" 24" 78" 2790 Click for pricing
15' 18' 20' AG-5-15/18-20 18' 4-1/2" 24" 78" 3041 Click for pricing
17' 20' 20' AG-5-17/20-20 18' 3-1/2" 24" 78" 3281 Click for pricing
7' 10' 25' AG-5-7/10-25 23' 6-1/2" 27" 78" 3386 Click for pricing
9' 12' 25' AG-5-9/12-25 23' 5-1/2" 27" 78" 3567 Click for pricing
12' 15' 25' AG-5-12/15-25 23' 5-1/2" 27" 78" 3705 Click for pricing
15' 18' 25' AG-5-15/18-25 23' 4-1/2" 27" 78" 3955 Click for pricing
17' 20' 25' AG-5-17/20-25 23' 3-1/2" 27" 78" 4195 Click for pricing
7' 10' 30' AG-5-7/10-30 28' 6-1/2" 27" 78" 3901 Click for pricing
9' 12' 30' AG-5-9/12-30 28' 5-1/2" 27" 78" 4082 Click for pricing
12' 15' 30' AG-5-12/15-30 28' 5-1/2" 27" 78" 4220 Click for pricing
15' 18' 30' AG-5-15/18-30 28' 4-1/2" 27" 78" 4359 Click for pricing
17' 20' 30' AG-5-17/20-30 28' 3-1/2" 27" 78" 4710 Click for pricing
The model number designates the capacity, min/max height under boom, and overall span.
* Molded phenolic casters with a steel core are standard.

Why Choose Gorbel Gantry Cranes:
  • Industry's Best Warranty - 5 Years on Gorbel Gantry Cranes
  • "If it's late, we pay the freight"
  • 5 Day Quick Ship, 2 or 3 Day Quick Ship (premium service)
  • Multiple shipping points - plants in NY and AL
  • Local Representation - Ergonomic Partners is a distributor for your Gorbel products
  • Ease of movement - durable polyurethane casters provide low rolling resistance for easy movement
  • Safety - bolted beam to upright connection to ensure that beam doesn't dislodge
  • Ease of installation
Heavy Duty Portable Gantry Cranes

Ergonomic Partners can provide custom electrical powered gantry cranes for your facility to meet your toughest specifications. When a typical overhead bridge crane will not work in your facility we can come up with a custom solution. Whether your applicaiton is for a custom overhead crane project or a commodity purchase. Ergonomic Partners can provide expert assistance in your purchase.

Why choose a Gantry crane in lieu of an overhead bridge crane?
  • Your building may not be able to support a runway for a typical crane installation
  • You may need to move the crane to a new location in the future
  • They can cost less than an overhead crane depending on length of runway
  • Effective way to move from inside a building to outside
  • Typically no need for footings
  • The gantry crane only needs ASCE rail in lieu of complete runway
  • We can even do trackless gantries. If you look closely at the picture above the single leg double girder gantry runs right on the floor. No need for ASCE rail!

We can help you pick the right overhead bridge crane or gantry crane for your application. We have even taken used overhead bridge cranes and converted them to a gantry crane.

Gantry Crane Leg Configurations
  • Single leg gantry-one side of the crane typically runs on existing runway and opposite pair runs on floor level
  • Double leg gantry-both legs are typically at floor level but can be of uneven length depending on existing conditions for your crane
  • Both of the above single leg or double leg gantry cranes are available in double girder or single girder configurations

Ergonomic Partners services and is a distributor for portable fixed gantry cranes and adjustable gantry cranes in Missouri, Illinois, Indiana, Kansas, Arkansas, Mississippi, Nebraska, Tennessee, Kentucky, Iowa, and Oklahoma.
