Mobile Scissor Lifts by Bishamon and Southworth
Mobile scissor lifts position loads at a convenient working height. By minimizing undesirable lifting, reaching and stretching, these Bishamon and Southworth lifts increase productivity and decrease workplace injuries. Mobile Work Carts are used in a wide variety of applications. From stocking shelves in retail stores to lifting and moving materials in libraries, pharmacies, machine shops and industrial manufacturing operations.

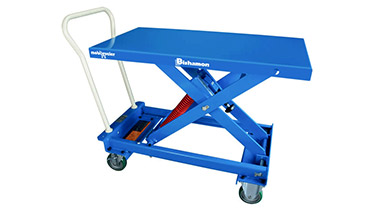

Bishamon BX, BXB, and ESX Mobile Scissor Lift Tables

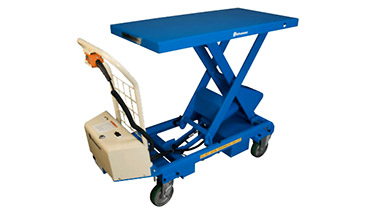

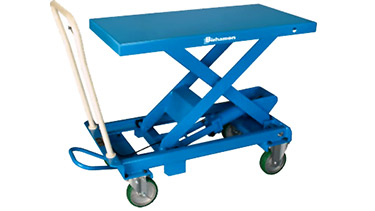

These mobile lifts are rugged industrial lift tables with push-bars and casters. BX Series lift tables make the workplace safer by placing the load at a convenient work. Because the units are mobile, the operator can locate the lift where it is needed. These mobile scissor lifts are available in various capacities and travels to satisfy a wide variety of applications. The manual foot pump models have an integrated hydraulic pump/cylinder assembly while a 24-volt DC power unit provides the lifting power on electric battery powered BXB. If you are interested in a stainless steel mobile lift, we have them. Consult the factory for the most up to date pricing.
Features of the Bishamon Mobile Scissor Lifts Include:
- Heavy-duty construction with captured scissor rollers for maximum stability
- Integrated pump-cylinder for reliability
- High quality casters and for wheels
- Dual action caster brake locks both the wheel and the swivel
- Convenient maintenance pins secure the scissor legs for inspection and maintenance
- Quality baked enamel finish provides exceptional durability and corrosion resistance
Model No. |
Travel (in) |
Capacity (lbs) |
Platform Height Min (in) |
Platform Height Max (in) |
Platform Size (in) |
Overall Size (in) |
Strokes or Lift Speed to Max Ht. |
Approx. Ship Weight |
Price |
BX-15 |
20.4 |
330 |
8.4 |
28.8 |
17.7 x 27.6 |
17.7 x 33.6 x 31.3 |
15 |
75 |
Click for Pricing |
BX-25 |
22.7 |
660 |
11.3 |
34.1 |
19.7 x 32.0 |
19.7 x 39.7 x 35.3 |
25 |
200 |
Click for Pricing |
BX-50 |
22.1 |
1,100 |
17.2 |
39.3 |
20.4 x 39.8 |
20.5 x 46.9 x 37.8 |
50 |
300 |
Click for Pricing |
BX-75 |
22.1 |
1,760 |
17.2 |
39.3 |
20.4 x 39.8 |
20.5 x 49.5 x 37.8 |
67 |
300 |
Click for Pricing |

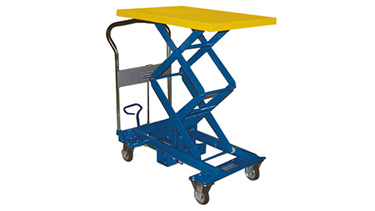

Double Scissor Model |
BX-30S |
45.1 |
660 |
17 |
62.1 |
20.4 x 39.8 |
20.5 x 49.5 x 37.8 |
64 |
340 |
Click for Pricing |
BX-50S |
23 |
1,100 |
16.5 |
39.5 |
18.1 x 25.6 |
18.1 x 37.2 x 37.0 |
66 |
275 |
Click for Pricing |
BX-50W |
45.1 |
1,100 |
17 |
62.1 |
20.4 x 39.8 |
20.5 x 49.5 x 37.8 |
90 |
380 |
Click for Pricing |
Battery Operated Models |
BX-30B |
23.5 |
660 |
11.5 |
35 |
19.7 x 32.1 |
19.7 x 41.7 x 34.6 |
10 sec. |
280 |
Click for Pricing |
BX-50B |
23.1 |
1,100 |
17.2 |
40.4 |
20.5 x 39.8 |
20.4 x 50.0 x 37.4 |
10 sec. |
390 |
Click for Pricing |
BX-80B |
21.1 |
1,760 |
17.2 |
38.4 |
20.5 x 39.8 |
20.5 x 49.4 x 37.4 |
12 sec. |
400 |
Click for Pricing |
Double Scissor Battery Operated Model |
BX-15WB |
39 |
330 |
15.2 |
54.1 |
19.7 x 32.1 |
19.7 x 39.7 x 35.4 |
10 sec. |
330 |
Click for Pricing |
BX-30SB |
46.3 |
660 |
17.5 |
63.8 |
20.5 x 39.8 |
20.4 x 50.0 x 37.4 |
12 sec. |
450 |
Click for Pricing |
BX-50WB |
46.1 |
1,100 |
17.1 |
63.2 |
20.5 x 39.8 |
20.4 x 50.0 x 37.4 |
17 sec. |
490 |
Click for Pricing |
Stainless Steel Models |
BXS-10 |
20.4 |
220 |
8.4 |
28.8 |
17.7 x 27.6 |
17.7 x 33.6 x 31.3 |
15 |
75 |
Call 314-884-8884 or Email for pricing. |
BXS-20 |
22.7 |
440 |
11.3 |
34.1 |
19.7 x 32.0 |
19.7 x 39.7 x 35.3 |
25 |
200 |

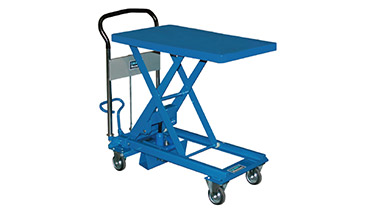

Southworth Dandy Lifts
These inexpensive mobile scissor lifts from Southworth make jobs that involve transporting material easier. The Dandy Lift can be used where lifting, positioning, assembling, stacking, unstacking, transporting, or the need for an adjustable height work surface is part of the job.
The Dandy Lift is available in several different types:
- Low profile for use with skids, containers, or pallets
- The Dandy Leveler which raises and lowers automatically as loads change

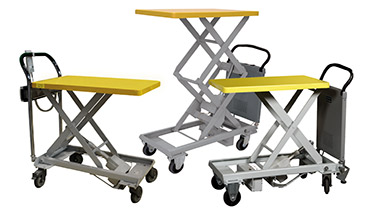

- The Powered Dandy with push-button lifting and lowering
See below for the Southworth lift product breakdown:
- L Series manually handles capacities from 150 pounds to 550 pounds
- A Series manually handles capacities from 500 pounds to 1760 pounds
- DLV Series to handle automatically adjusting loads from 150 – 1100 pounds
- PLM Series is a powered unit to handle 220 pounds to 500 pounds capacities
Whatever your lifting, leveling or transporting needs are, there is a Southworth lift to suit your application.
Model No. |
Max Capacity |
Overall Length |
Overall Width |
Handle Height |
Platform Length |
Platform Width |
Low Height |
Travel |
Raised Height |
Ship Weight |
Pricing |
L-150 |
330 lbs. |
37.7" |
17.7" |
36.0" |
28.0" |
17.7" |
8.3" |
20.7" |
29.0" |
82 lbs. |
Click for pricing |
L-250 |
550 lbs. |
38.2" |
19.7" |
36.2" |
31.5" |
19.7" |
9.5" |
22.2" |
31.8" |
115 lbs. |
Click for pricing |
A-500 |
1100 lbs. |
42.1" |
23.6" |
37.8" |
35.8" |
23.6" |
11.8" |
24.8" |
36.6" |
194 lbs. |
Click for pricing |
A-800 |
1760 lbs. |
45.9" |
23.6" |
38.8" |
39.4" |
23.6" |
13.0" |
27.2" |
40.2" |
275 lbs. |
Click for pricing |
A-350W |
770 lbs. |
42.1" |
23.6" |
37.8" |
35.8" |
23.6" |
13.6" |
36.2" |
49.8" |
229 lbs. |
Click for pricing |
M-500L |
1100 lbs. |
55.4" |
19.7" |
37.3" |
37.1" |
19.7" |
3.2" |
26.3" |
29.5" |
174 lbs. |
Click for pricing |
F-500L |
1100 lbs. |
55.4" |
19.7" |
37.3" |
37.1" |
19.7" |
3.2" |
26.3" |
29.5" |
168 lbs. |
Click for pricing |
PLM-100 |
220 lbs. |
20” |
40” |
37.5” |
20” |
31.5” |
13” |
38” |
51” |
178 lbs. |
Click for pricing |
PLM-100W |
220 lbs. |
24” |
42” |
37.5” |
24” |
36” |
13” |
38” |
51” |
192 lbs. |
Click for pricing |
PLM-150 |
330 lbs. |
20” |
40” |
37.5” |
20” |
31.5” |
14.75” |
18.5” |
33.25” |
151 lbs. |
Click for pricing |
PLM-150W |
330 lbs. |
24” |
42” |
37.5” |
24” |
36” |
14.75” |
18.5” |
33.25” |
166 lbs. |
Click for pricing |
PLM-250 |
500 lbs. |
20” |
37.5” |
37.5” |
20” |
31.5” |
14.25” |
18.25” |
32.5” |
126 lbs. |
Click for pricing |
Ergonomic Partners is a distributor for Southworth and Bishamon mobile scissor lifts; serving clients from coast to coast, Canada, Mexico and especially focused in the states of Missouri, Illinois, Indiana, Kansas, Arkansas, Mississippi, Nebraska, Tennessee, Kentucky, Iowa, and Oklahoma.
