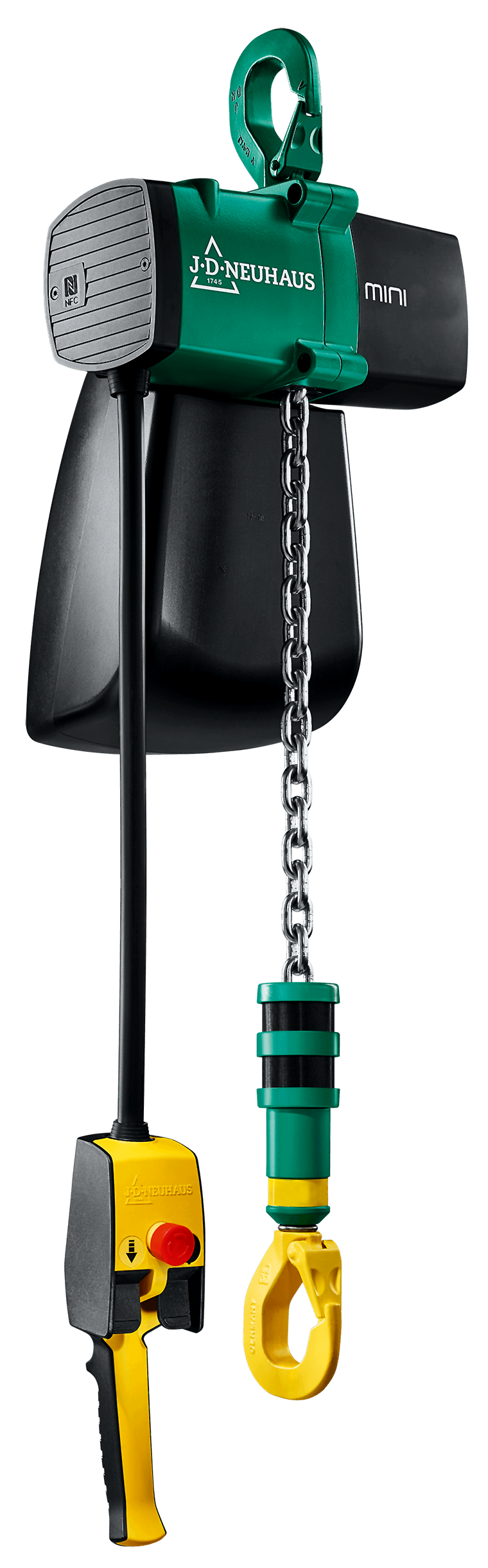

1100 lb JD Neuhaus MINI500 Air Chain Hoist

Manufacturer: JD Neuhaus

Availability: In stock

SKU: MINI500-CUST

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Lift *

Hoist Suspension *

Hoist Accessories

Twist-Lock Safety Bottom Hook [+$524.24]
Posi-Lock Safety Bottom Hook (w. Clevis) [+$484.43]
Air Filter, Regulator, Lubricator Assembly [+$513.63]
SP Food Grade Hoist Version (Includes stainless steel load chain, stainless top and bottom twist lock hooks, stainless hardware, food grade lubricants.) [+$3,590.08]

Pendant Throttle Control *

$6,609.46

Qty:

Documents, Drawings, and Manuals

Brochure

JDN Mini Air Hoists Brochure

Product Specifications

Attribute name	Attribute value
Features	Capacity: 1100 lbs. (500 kg) Headroom: 21.9 in. Weight: 46 lbs. Standard operating pressure: 87 psi Lifting speed: 41 fpm (at full load) Air consumption: 60 cfm (at full load lifting/lowering) Air connection: G 1/2 in. Hose dimension (Ø inside): 1/2 in. Patented motor design for increased efficiency, performance and durability. Composite chain container included. Explosion Protection: EX II GD IIA T4 (Class 1 Div 2 Zone 2) True variable speed pilot control system design. Galvanized zinc load chain standard for corrosion resistance. JDN patented cartridge design grease charged air motor. Integrated pneumatic liftinging and lowering limit switches. 90 degree swivel main air fitting with air lock quick disconnects. Standard Top Hook: Twist-Lock Safety Hook. Standard Bottom Hook: Common Latch Hook. Integrated NFC Data Chip. JDN Ergo 2 lever control station, with lever guard. Hoist manufacturer's warranty does not include on-site repairs. Customer will need to send the hoist, with freight pre-paid to EP's repair facility.
