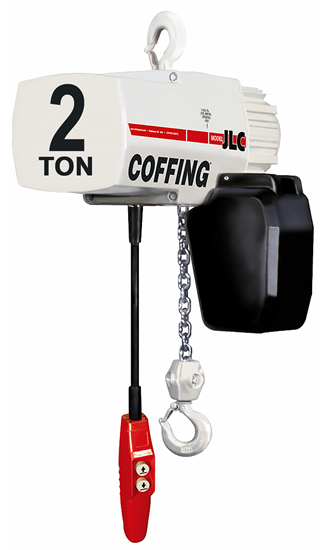

2-Ton Coffing JLC Electric Chain Hoist

Manufacturer: Coffing Hoists
SKU: JLC4008-CUST
Manufacturer part number: JLC4008-CUST
Lead Time: typically ships in 13-16 business days
*
*
*
*
*
*
*
$3,167.00
Product Specifications
Features
  • Capacity: 2-Ton (1,814.3 kg.)
  • Headroom: 20-13/16 inches with no trolley, 20-5/8 inches with trolley
  • Mfg Base Model No.: JLC-4008
  • No. of Load Chains: 1
  • Hoist Motor Horsepower: 1 hp
  • Ship Weight: 214 lbs.
  • H4 duty rating is ideal for heavy-duty industrial applications.
  • The hoist enclosure is a compact aluminum housing for portability and ease of installation. The finned aluminum motor housing provides cooling and is Class F insulated for longer life.
  • Hoist electrical panel, provides easy access to controls and motor leads with numbered connection wires for changing voltage on dual voltage motors or performing routine hoist maintenance.
  • Limit switches are adjustable to regulate upper and lower load travel. Brass nuts are standard for improved repeatability and chain positioning.
  • Mechanical overload device is factory-calibrated to protect the hoist, operator and supporting structures from damaging overloads, chain jamming, and reverse phasing.
  • Hoist motor brake is a heavy duty multiple disc type, direct acting design for positive load spotting and holding.
  • 5-pocket load sheave, increases chain and sheave engagement 25% over hoists with conventional four-pocket sheaves. Provides smoother lifting and reduces chain wear over four-pocket sheaves.
  • Push button station is ergonomically designed to fit the operator's hand for left or right single-handed thumb operation. NEMA 3R rated (weather resistant) with 24 volt control is standard.
  • Hoists transmission has precision machined alloy steel gears that run in an oil bath for longer, quieter operation.
  • WRAP-AROUND SIDE PLATES - Act as safety lugs and as bumpers to protect wheels. Available to fit American Standard I-Beams, wideflange, and patented track beams.
  • PRECISION TROLLEY WHEELS - Machined, cast iron wheels with sealed, lifetime lubricated ball bearings for extended trolley life. Motorized trolley wheels are heat treated for added durability.
  • TROLLEY DESIGN - 4-wheel design negotiates 48 inch minimum radius curve, including patented track applications (60 inch for JLCET 2-Ton only). Specify track type and beam size.
WarrantyLifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
