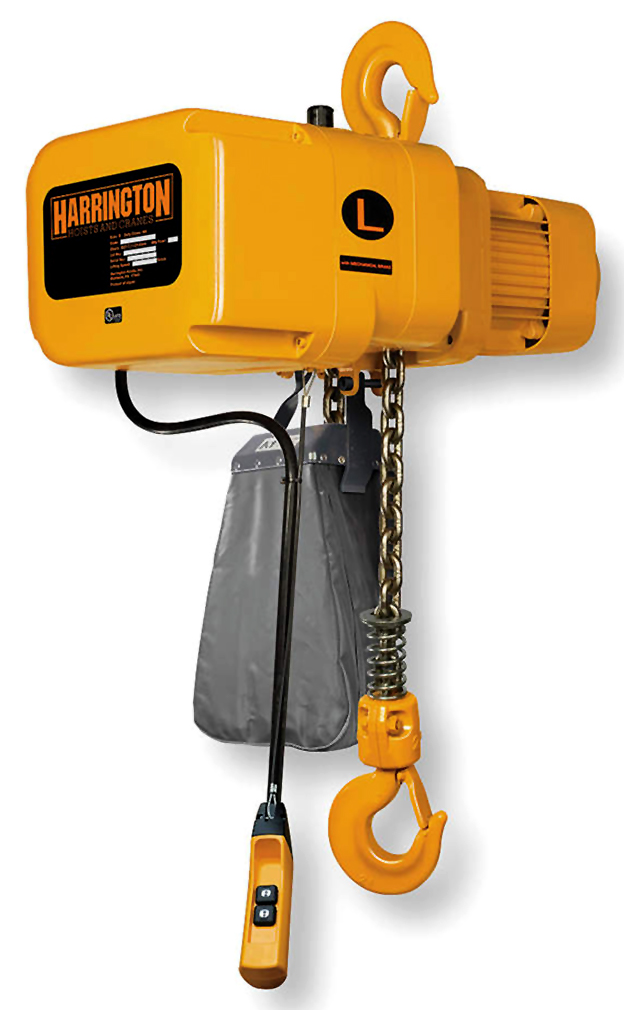

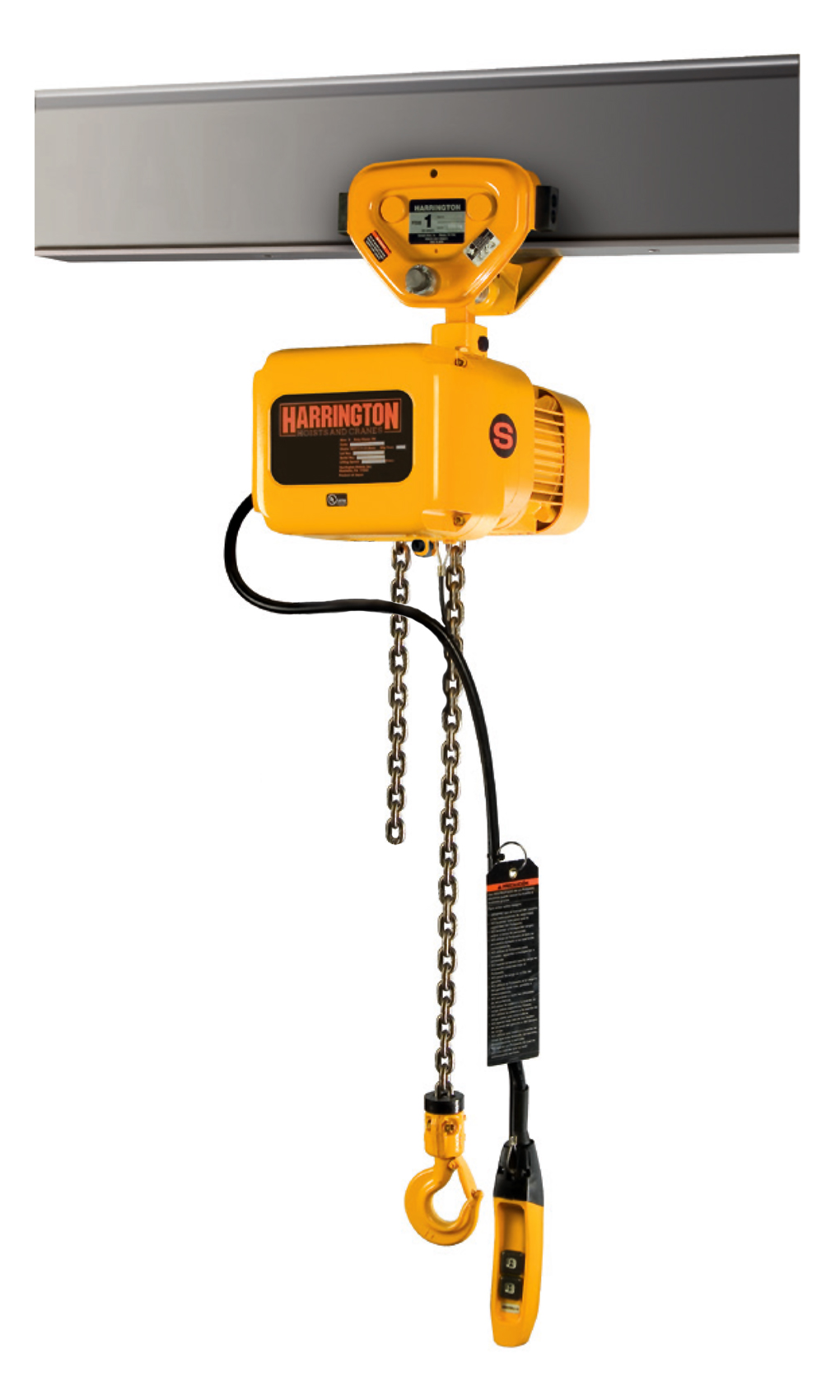

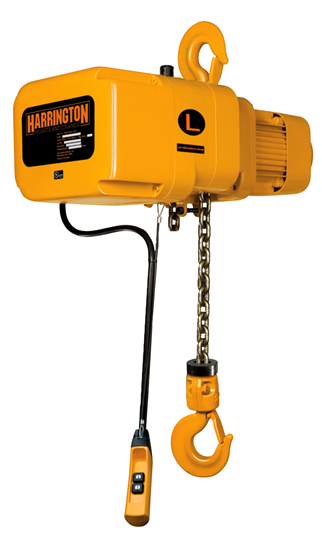

3-Ton Harrington NER Electric Chain Hoist

SKU: NER030C-CUST
Manufacturer part number: NER030C-CUST
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
*
*
*
*
*
*
*
*
*
$5,617.29
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Capacity: 3 Ton
  • Headroom: 32.9 in.
  • Approximate Weight: 234 lbs.
  • Standard Voltage: 208-230 / 460-3-60
  • Control Voltage: 110V
  • Duty Cycle: Single Speed - 60 Min. / Dual Speed - 30/10 Min. with VFD
  • Ratings: Hoist - IP55 / Pendant - IP65
  • Operating Conditions: Recommended for -4˚ to +104˚ F and humidity of 85% or less
  • Easy Access Suspension - External pins allow for quick change from hook to lug for trolley mount configurations.
  • Notched Hook and Latch System - Provides positive cleaning and improves resistance against lateral forces.
  • Unique Load Sheave - Increased number of pockets reduce chain vibration. 5 pockets standard / 6 pockets for smaller hoists.
  • Friction Clutch - Carbon friction material provides consistent performance over wide temperature range.
  • Standard Count Hour Meter - Records and displays the number of lowering starts and hoist on time.
  • Smart Brake Technology - Current driven electromagnetic brake does not release unless motor is energized.
  • High air flow keeps motor and brake cooler.
  • Low-profile upper and lower limit switches.
  • Grade 80 nickel-plated chain is heat treated to increase strength and decrease wear.
  • Certified and listed to UL 1340 "Standard for Hoists."
  • Environment friendly and built without the use of harmful materials. RoHS compliant.
  • Classification: ASME H4 / ISO M5 or M4 / FEM 2M or 1Am
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginJapan
