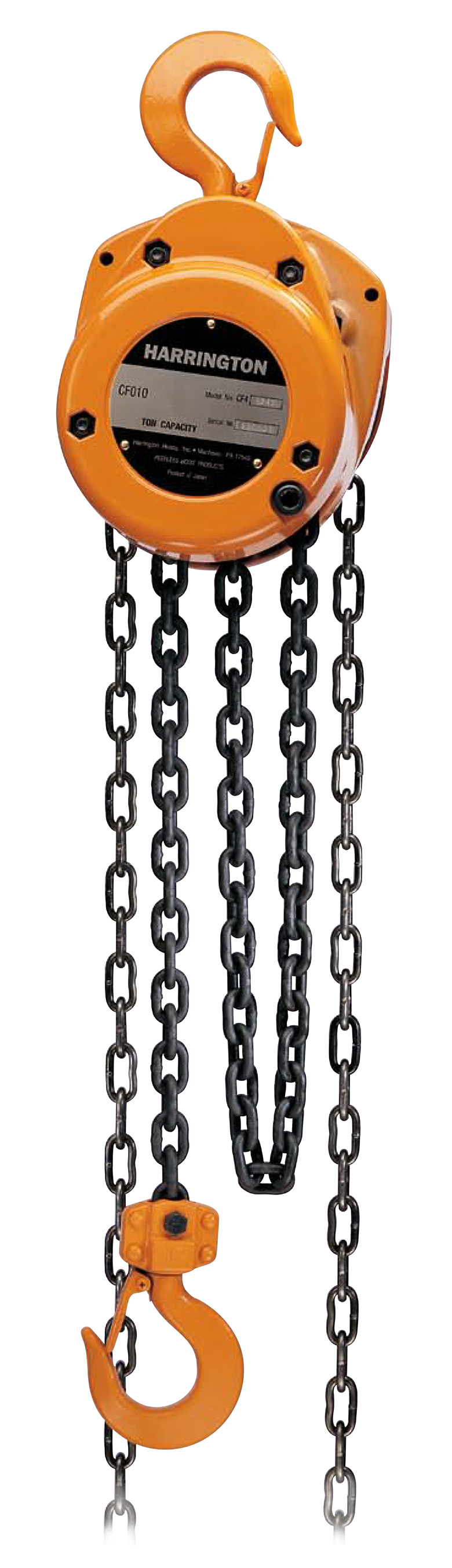

5-Ton Harrington CF Hand Chain Hoist, 15 ft. Lift, Part No CF050-15

SKU: CF050-15
Manufacturer part number: CF050-15
Lead Time: typically ships in 3-5 business days
*
$1,372.00
Documents, Drawings, and Manuals
Product Specifications
Features
  • Capacity: 5 Ton
  • Headroom: 24.4 in.
  • Approx. Weight: 96.5 lbs.
  • Lift: 15 ft.
  • Pull Force: 92 lbs.
  • Reeving: 3
  • Low headroom and compact design results in lightweight and easy portability.
  • Limited number of parts simplifies and reduces maintenance.
  • Grade 100 heat-treated manganese alloy load chain resists abrasion and wear while minimizing chain weight.
  • Forged and heat-treated alloy steel hooks are designed to open slowly, without fracturing under excessive loads.
  • Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity in accordance with ASME B30.16 requirements.
  • All-steel construction featuring rugged gear case enclosure and hand wheel cover.
  • Standard slip clutch device prevents the hoist from being used to lift damaging loads beyond rated capacity.
  • Double pawl springs provide redundancy for reliable operation of brake mechanism.
  • Double enclosed brake cover keeps out dust, rain, and dirt.
Warranty 2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin Japan
