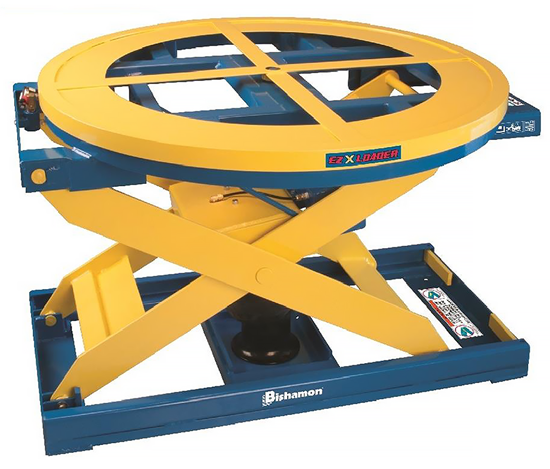

Bishamon EZ X Loader, Capacity 4,000 lbs

Manufacturer: Bishamon

Availability: In stock

SKU: EZ X Loader

Manufacturer part number: EZ X Loader

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Platform Size *

Table Accessories

$3,062.50

Qty:

Documents, Drawings, and Manuals

Brochure

Bishamon EZ Loader and EZ X Loader Brochure

Manual

EZ Loader Operations and Service Manual

Product Specifications

Attribute name	Attribute value
Features	Capacity: 4,000 lbs. Self-Leveling Capacity Range: 400 lbs. up to 2,600 lbs. Max. Height: 29.8 in. Min. Height: 9.8 in. Approx. Ship Weight: 500 lbs. Self-leveling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity. Rotator ring with integral finger guard helps eliminate reaching and stretching. Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement of the platform. Secured ball bearing center pivot of the 43 in. diameter rotator ring provides smooth, even rotation. Pressure relief valve prevents excess pressure build-up. Surfaces are phosphatized and powder coated with a high quality polyester for a lasting, durable finish. Rollers are entrapped in the base frame and platform for added stability. Integral maintenance bars. EZ Loaders arrive at your facility fully assembled - just add air! Easily transported with a fork truck. The EZ Loader is CE marked under the Machinery Directive (2006/42/EC).
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
