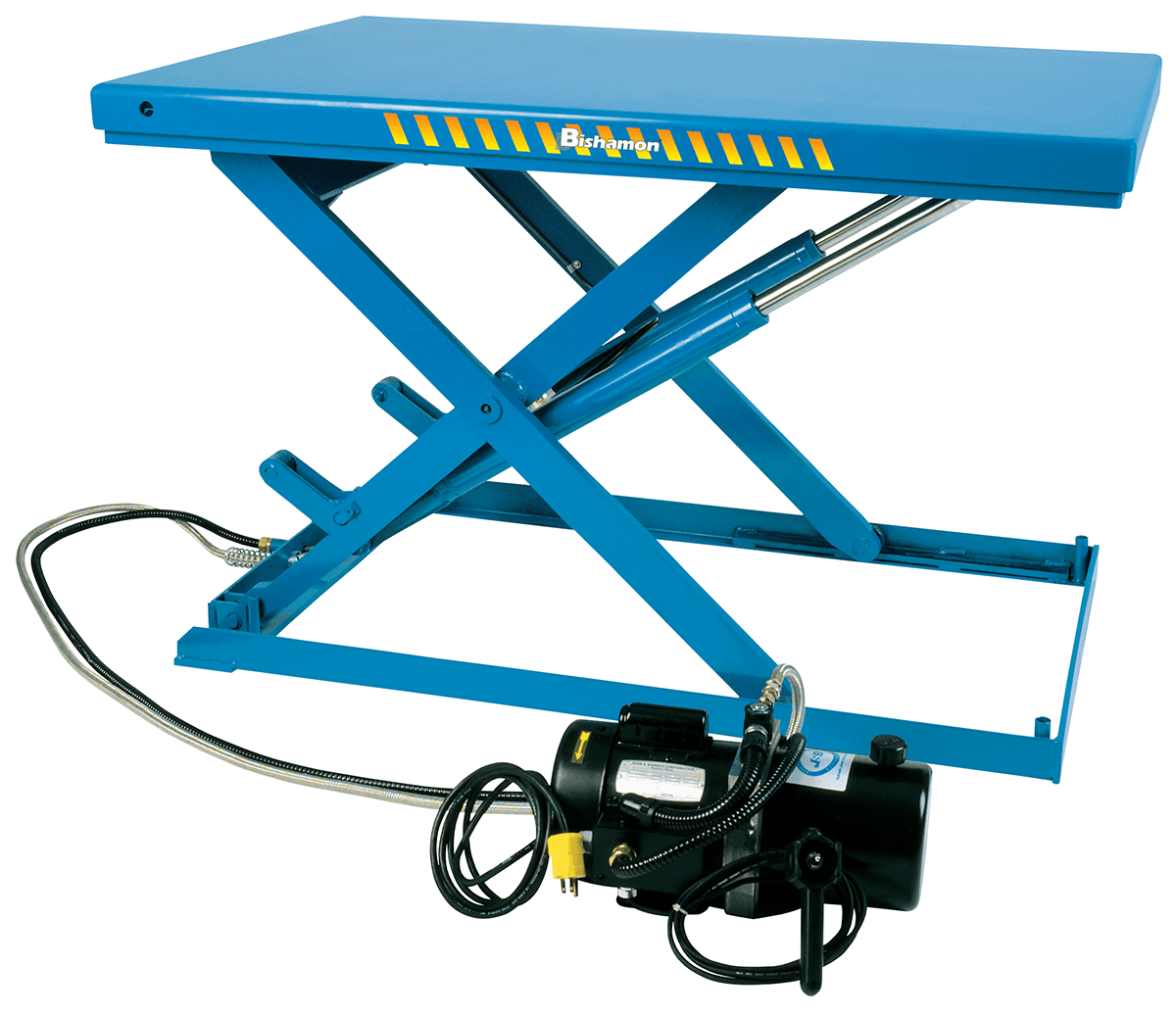

Bishamon Lo-Profile LX-50L Scissor Lift Table, Capacity 1,100 lbs

Manufacturer: Bishamon
Availability: In stock
SKU: LX-50L
Manufacturer part number: LX-50L
Lead Time (subject to change, call to verify): typically ships in 16-20 business days
*
*
*
$4,593.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
Features
  • Vertical Travel: 27.1 in.
  • Max. Height: 30.0 in.
  • Min. Height: 2.9 in.
  • Time to Max. Height: 13 sec.
  • Time to Min. Height: 8 sec.
  • Power Units: 1/2 HP / 115V (single phase)
  • Operator Control Voltage: 24V
  • Approx. Ship Weight: 359 lbs.
  • Extremely low collapsed heights of 2.9 in. to 4.3 in. provides access for rolling products, carts, or pallet trucks.
  • Electric full-perimeter toe guard around the platform provides optimum operator safety.
  • Heavy-duty construction with captured scissor rollers for maximum stability and baked enamel finish.
  • High performance external electric-hydraulic remote power unit with 8 ft. long steel braided hydraulic hose.
  • Hand held operator control unit with 8 ft. of cord. (foot operated control optional)
  • Approach ramps available for easier access for carts and pallet trucks. (pallet truck ramps are longer and shallower)
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
