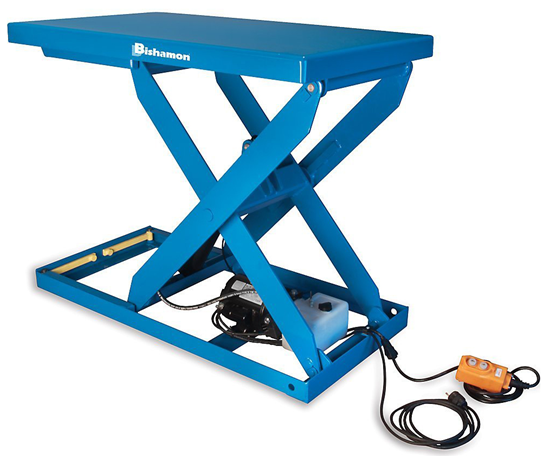

Bishamon Optimus L5K-4872 Lift Table, Capacity 5,000 lbs

Manufacturer: Bishamon

Availability: In stock

SKU: L5K-4872

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Platform Size *

Voltage *

Lift Control *

Table Accessories

$8,258.25

Qty:

Documents, Drawings, and Manuals

Brochure

Bishamon Optimus L2K, L3K, L5K Series Brochure

Manual

Bishamon Optimus L2K, L3K, L5K Series Manual

Product Specifications

Attribute name	Attribute value
Features	Vertical Travel: 39.25 in. Max. Height: 48 in. Min. Height: 8.75 in. Time to Max. Height: 50 sec. Time to Min. Height: 24 sec. Ship Weight: 1030 lbs. Hand-held push-button control with 10 feet of cord. Optional foot operated control with guard. 115-volt operator control system. Optional 230- and 480-volt power units have a 24 VAC operator control system. Contoured platform corners for operator safety. Hinged maintenance bars. Rugged construction with high strength structural steel components and welds. Heavy duty cylinders with chrome plated rods. Flow limiting valves. Continuous axles at rollers. Rollers are entrapped in base frame and platform for added stability. Self-lubricating, maintenance free bushings at all pivot points. Unitized, compact, internal power unit and reservoir combination. Pressure compensated flow control at power unit. Durable powder coated finish. Easy view hydraulic reservoir. Clean, accessible, maintenance friendly design. All components are UL or CSA Certified. Complies with ANSI MH 29.1:2012 "Safety Requirements for Industrial Scissor Lifts".
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)

Product Tags
