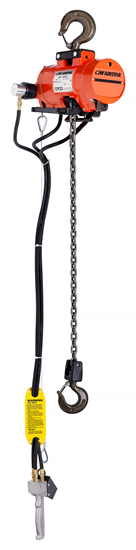

CM AirStar 1-Ton Capacity Air Chain Hoist - 7402D

Manufacturer: CM (Columbus McKinnon)
SKU: 7402D
Manufacturer part number: 7402D
Lead Time: typically ships in 16-20 business days
Documents, Drawings, and Manuals
Product Specifications
  • Capacity: 1 Ton (Metric Rated)
  • Headroom: 18 in.
  • Weight: 59 lbs.
  • Lifting Speed Max: 23 fpm
  • Lowering Speed Max: 60 fpm
  • Normal Operating Pressure: 90 psi
  • Air Consumption: 48 cubic feet/minute
  • Pendant drop: 4 foot less than lift
  • NPTF air inlet size: 3/8 in.
  • Commercial duty air motor for general commercial applications where variable speed pneumatic power is preferable
  • Positive action, heavy-duty shoe type brake that holds the load
  • Multi-vane rotary air motor for high torque, smooth operation
  • Inlet air swivel with built-in strainer provides free hoist movement
  • Limit stops prevent over-travel in upper and lowering directions
  • Equa-torque gearing of alloy steel, heat treated spur gears are accurately machined to provide a close meshed, compact gear reduction
  • Tapped exhaust port for cleanroom applications or to add a supplemental muffler in addition to the built-in muffler for even quieter operation
  • Each hoist is thoroughly inspected and tested to over 125% of rated load prior to shipment
WarrantyLifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
