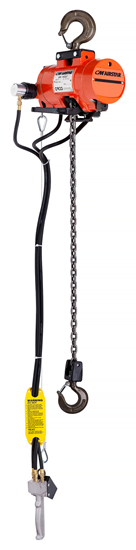

CM AirStar 1/4-Ton Capacity Air Chain Hoist - 7400D

Availability: In stock

SKU: 7400D

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Lift *

Chain Container *

Suspension *

Pendant Throttle Control *

$4,672.00

Qty:

Documents, Drawings, and Manuals

Specs/Manual

CM AirStar Chain Hoist Brochure

Manual

CM AirStar Chain Hoist Manual

Product Specifications

Attribute name	Attribute value
Features	Capacity: 1/4 Ton (Metric Rated) Headroom: 15 1/4 in. Weight: 46 lbs. Lifting Speed Max: 65 fpm Lowering Speed Max: 95 fpm Normal Operating Pressure: 90 psi Air Consumption: 48 cubic feet/minute Pendant drop: 4 foot less than lift NPTF air inlet size: 3/8 in. Commercial duty air motor for general commercial applications where variable speed pneumatic power is preferable Positive action, heavy-duty shoe type brake that holds the load Multi-vane rotary air motor for high torque, smooth operation Inlet air swivel with built-in strainer provides free hoist movement Limit stops prevent over-travel in upper and lowering directions Equa-torque gearing of alloy steel, heat treated spur gears are accurately machined to provide a close meshed, compact gear reduction Tapped exhaust port for cleanroom applications or to add a supplemental muffler in addition to the built-in muffler for even quieter operation Each hoist is thoroughly inspected and tested to over 125% of rated load prior to shipment
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
