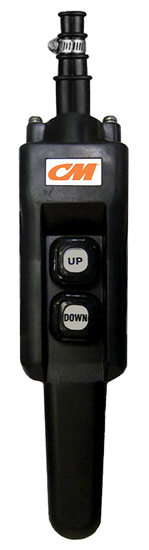

CM LodeStar 2-Button Pendant, Two-Speed 58273

Manufacturer: CM (Columbus McKinnon)

SKU: 58273

Manufacturer part number: 58273

Lead Time (subject to change, call to verify): typically ships in 2-3 business days

Prewired Cable/Internal Strain Relief *

$616.00

Qty:

Documents, Drawings, and Manuals

Specs

CM LodeStar Hoist Pistol Grip Control Station Specs

Product Specifications

Attribute name	Attribute value
Features	CM Part Number: 58273 Approximate Shipping Weight: 0.71 lbs. Overall Dimensions: (L x W x H): 12.5 in. (318 mm) x 2.5 in. (64.4 mm) x 2.4 in. (62.2 mm) Enclosure Material: High impact, black ABS enclosure Enclosure Rating: NEMA 4X (IP65); indoor or outdoor use Electrical Certifications: UL/cUL Listed for indoor use only Temperature Range: 5 to 160 degrees F (-15 to 70 degrees C) Shock Resistant: Up to 100 g. Conductix-Wampfler Part No: XA-COB81P Strain Relief: Equipped to accommodate internal strain relief cable. Electrical Contacts Specifications: 5A @ 120VAC and 240VAC, 2A @ 24VDC and 12VDC, and 0.4A @ 120VDC Double-insulated to withstand 2500V. Two-piece design to simplify field wiring. Multi-diameter cable bushing inlet. Black silicone rubber booted buttons. Seals out dirt and moisture. Fasteners are a self-captive stainless steel with threaded inserts in the housing to prevent thread stripping.
