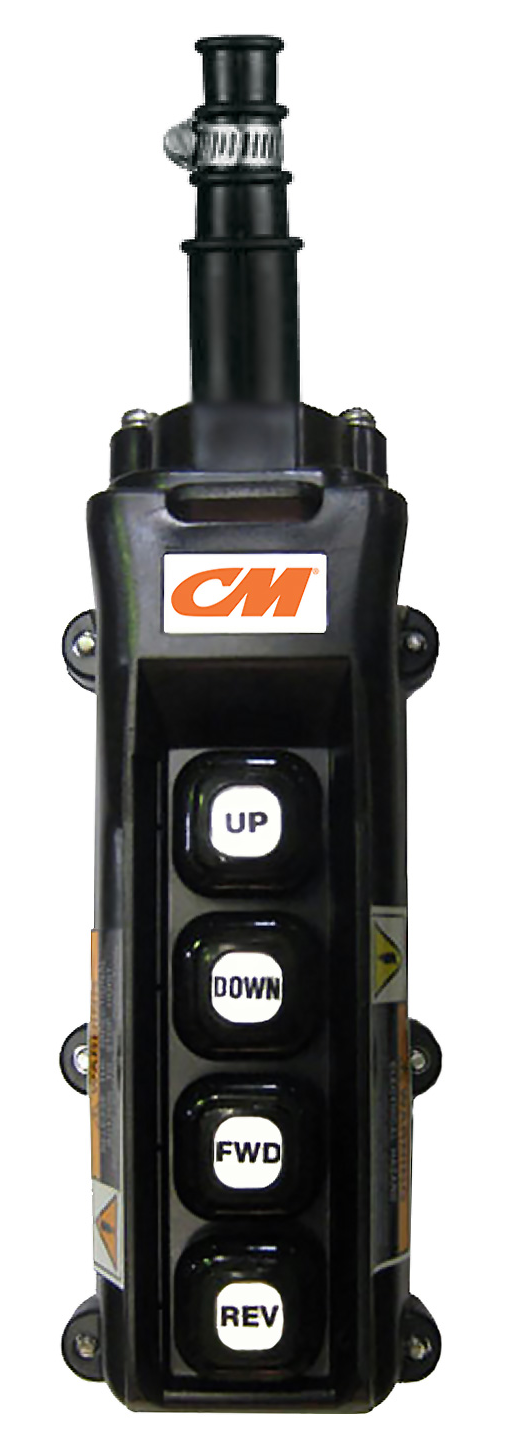

CM LodeStar 4-Button Pendant, All Single-Speed 58219CM

SKU: 58219CM

Manufacturer part number: 58219CM

Lead Time (subject to change, call to verify): typically ships in 2-3 business days

$927.70

Qty:

Documents, Drawings, and Manuals

Specs

CM 4-Button LodeStar Hoist Control Station Specs

Product Specifications

Attribute name	Attribute value
Features	CM Part Number: 58219CM Approximate Shipping Weight: 0.88 lbs. Overall Dimensions: (L x W x H): 10.6 in. (269 mm) x 3 in. (78 mm) x 2.4 in. (62 mm) Enclosure Material: High impact, black ABS enclosure Enclosure Rating: NEMA 4X (IP65); indoor or outdoor use Electrical Certifications: UL/cUL Listed for indoor use only Temperature Range: 5 to 160 degrees F (-15 to 70 degrees C) Shock Resistant: Up to 100 g. Conductix-Wampfler Part No: XA-34223 Strain Relief: Equipped to accommodate internal strain relief cable. Electrical Contacts Specifications: 5A @ 120VAC and 240VAC, 2A @ 24VDC and 12VDC, and 0.4A @ 120VDC Double-insulated to withstand 2500V. Two-piece design to simplify field wiring. Multi-diameter cable bushing inlet. Black silicone rubber booted buttons. Seals out dirt and moisture. Fasteners are a self-captive stainless steel with threaded inserts in the housing to prevent thread stripping.
