Crane Anti-Collision System, Two Event, Optical Laser, CAS-2L100

Manufacturer: Duct-O-Wire

SKU: CAS-2L100

Manufacturer part number: CAS-2L100

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Crane Application *

Two-Event, Slow Down / Stop Control Only, (Crane to Crane Separation [requires 2-systems], or End Stop Collision Avoidance). System unaffected in close reflective proximity to Metal Halide or Energy Efficient Fluorescent Lighting.

System Includes *

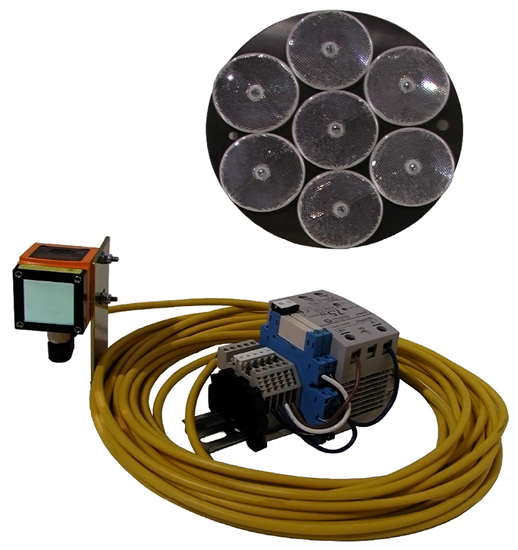

Pre-Assembled DIN Mounted Power Pack, Relays and Interface, Reflector, 10 Meter Data Cable, Mounting Bracket, Hardware and Instructions.

$1,317.12

Qty:

Documents, Drawings, and Manuals

Spec Sheet

Duct-O-Wire Crane Collision Avoidance System Catalog

Manual

Duct-O-Wire Crane Collision Avoidance Systems Manual

Product Specifications

Attribute name	Attribute value
Features	Sensor: Laser Optic with Two Programmable Trigger Events (Laser Class 2, Max Power 4.1 mW, Time Base 100 sec., Pulse Duration 1.3 ms, Wave Length 650 mm, Compliance: 21 CFR PART 1040, EN60825-1:2003-10) Range: 3 ft. to 100 ft. Power: 120 VAC, 1 AMP Max per Contact Approximate Ship Weight: 8 lbs.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
