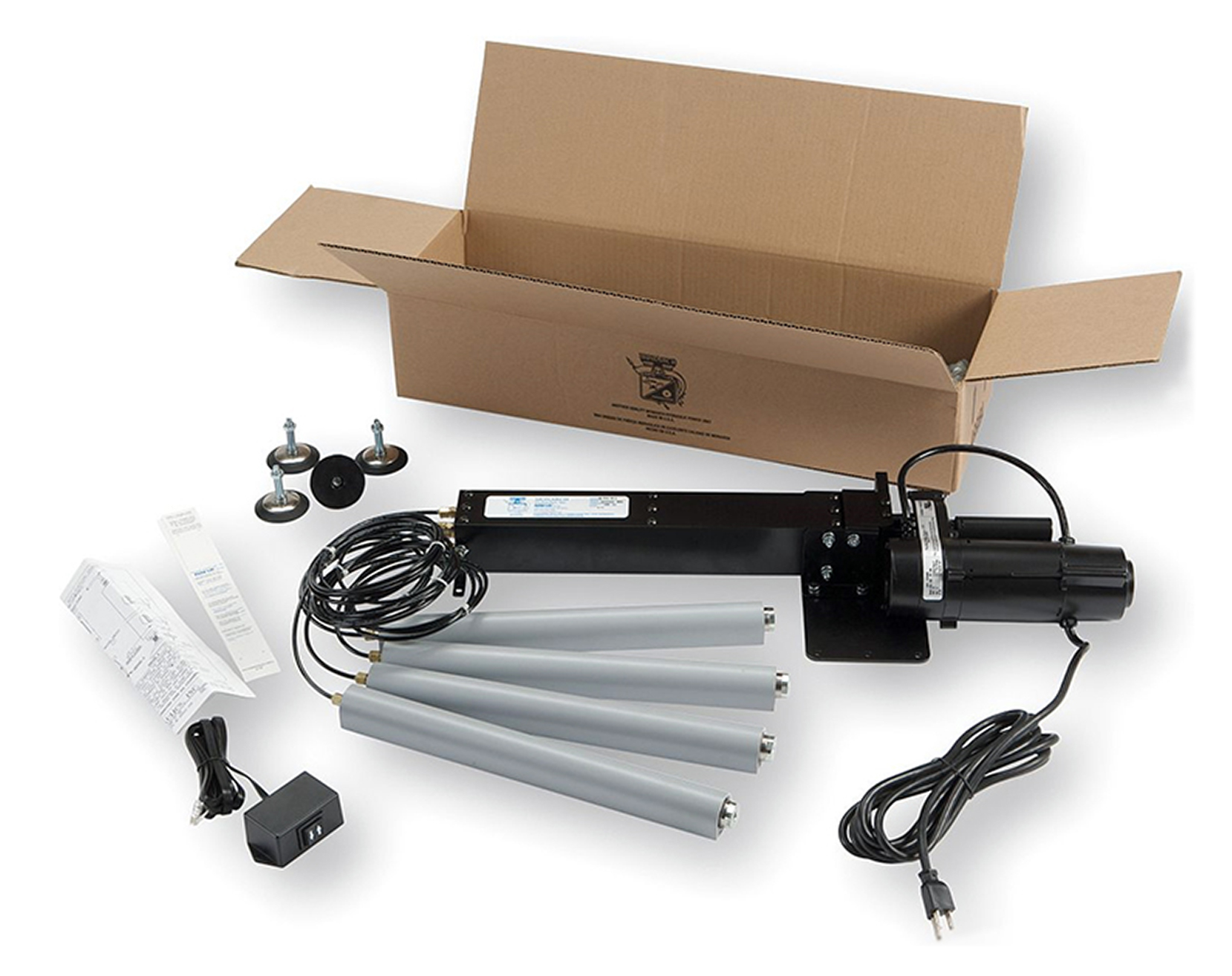

Dyna-Lift Electric Height Adjustable System, 6 in Travel, 1000 lb Capacity, 4E-D1A-06-S

Manufacturer: Bucher Hydraulics
SKU: 4E-D1A-06-S
Manufacturer part number: 4E-D1A-06-S
Lead Time: typically ships in 25-30 business days
Product Specifications
  • Quickly convert a fixed height industrial machine, table or workbench to adjustable height; providing ergonomic workstations for worker safety and comfort.
  • All kits are shipped fully charged ready to install. (Mounting hardware not included.)
  • 250 pound capacity per leg on 4-post systems.
  • 12VDC, 30mA Rocker switch with 81 inches of control cord provides smooth quiet up/down control; 17.4 inches per minute of travel.
  • Flexible Tubing: 3/16 in. OD with 1 inch minimum bend radius.
  • No reservoir. Fluid is maintained in the pump and piston areas. System pressure is 625 psi nominal -2,500 psi burst/max.

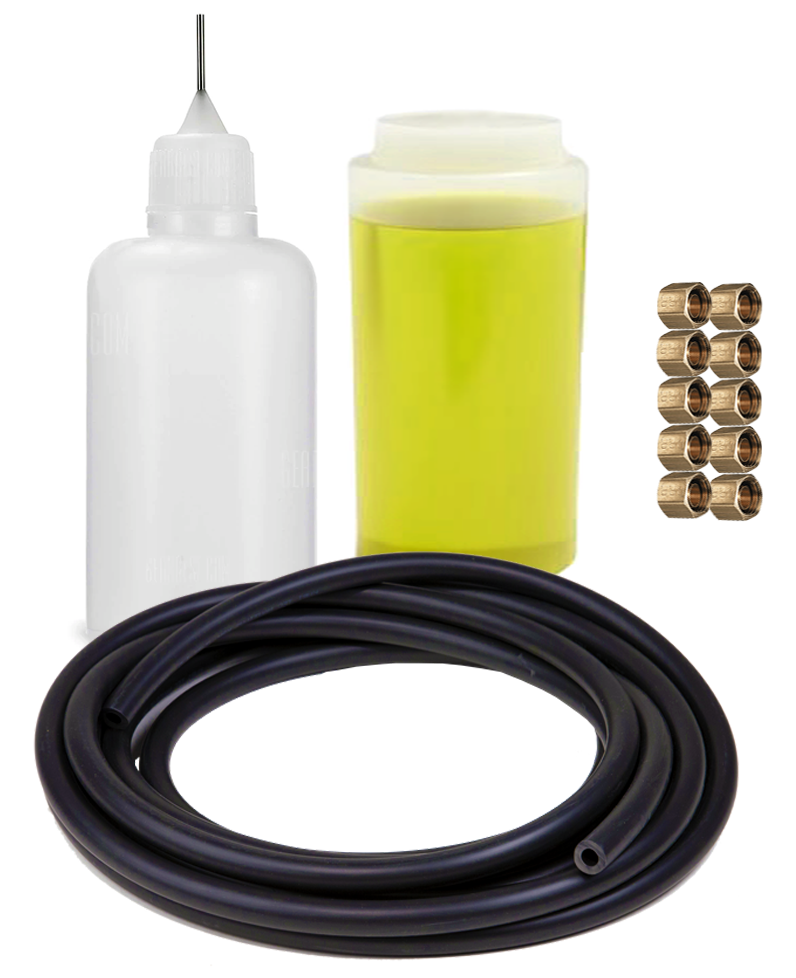

  • Uses colorless, odorless, non-staining, non-toxic hydraulic fluid. See MSDS above.
  • Powder coated finish on pump and cylinder D-housing. Exposed cylinder rod-ends are steel with zinc plating.
  • Electric Pump Motor: 115VAC, 60Hz, single-phase, 87 rpm, 2.4 fla, Regular amperage draw 1.6 amps, UL Recognized CSA Certified, standard 3-pin plug with 6 foot power cord.
  • NOTE: Single acting cylinders, power up and gravity down. Approximately 20 pounds of weight per cylinder to retract properly.
Lift Table/Kit Type4 leg / 4 post
Height Adj. / Vert. Travel6 in / 15.2 cm
Capacity1/2-ton / 453.5 kg
Voltage115-1-60 (single phase)
Shipping Specs48 lbs.
Country of OriginMade in the USA
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
