Dyna-Lift Manual Height Adjustable System, 12 in Travel, 1000 lb Capacity, 4M-D1A-12-S

Availability: In stock

SKU: 4M-D1A-12-S

Lead Time (subject to change, call to verify): typically ships in 50-60 business days

Dyna-Lift Options

Includes *

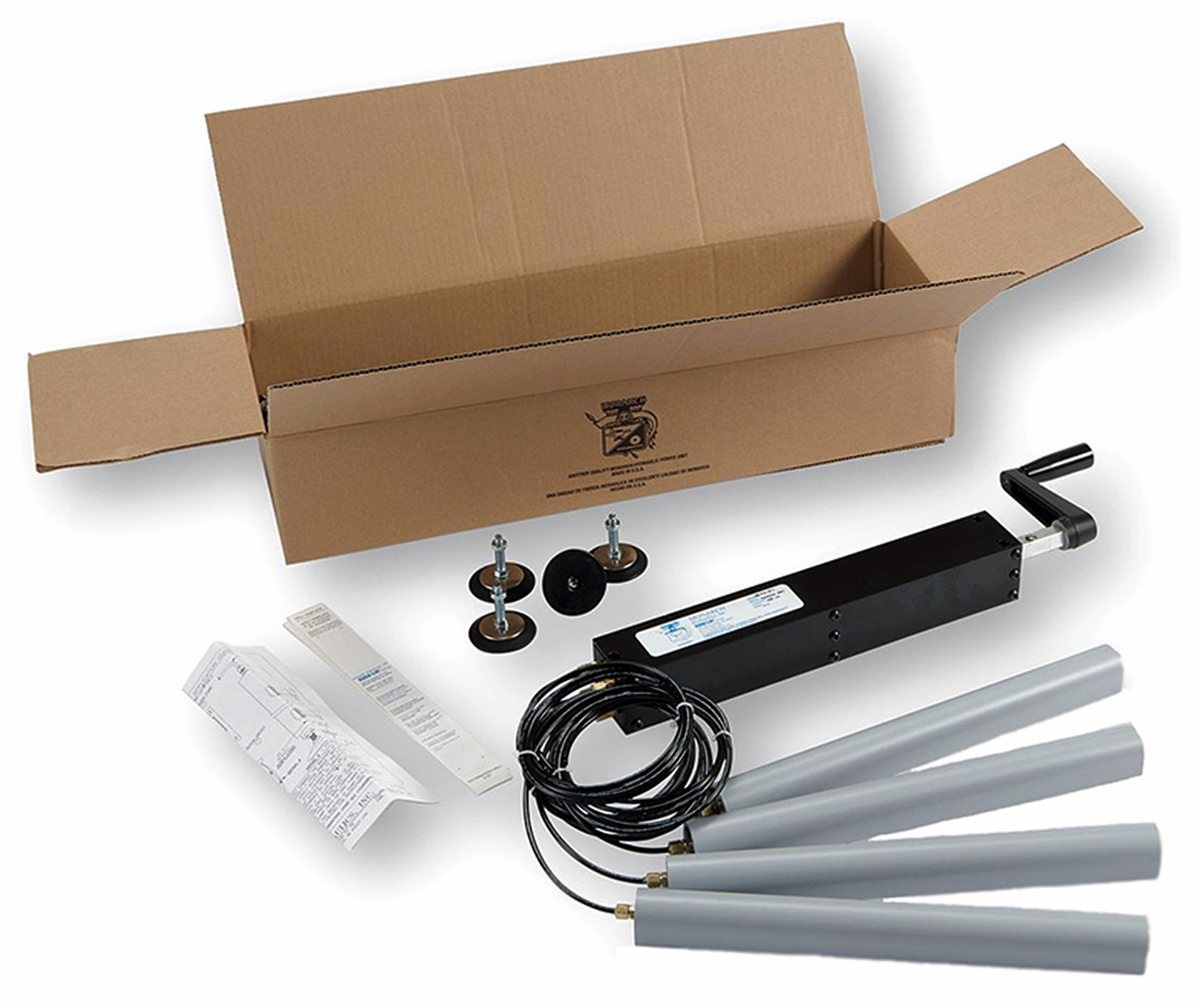

Four Cylinders, Manual Pump, Fold-Away Handle, D-Housing (4, 1/4-20 Mount Holes) w/ A-Cylinder Mounted Inside, Straight Fittings, 4ea-3/8in Adapters/Foot Glides, 12-in Vert. Travel, Hose Lengths: (2)-60in, (2)-96in, Factory Pre-Charged with Instructions.

$897.60

Qty:

Documents, Drawings, and Manuals

Guide

Dyna-Lift Catalog and Selection Guide

Guide

Dyna-Lift System Mounting Guide

Instructions

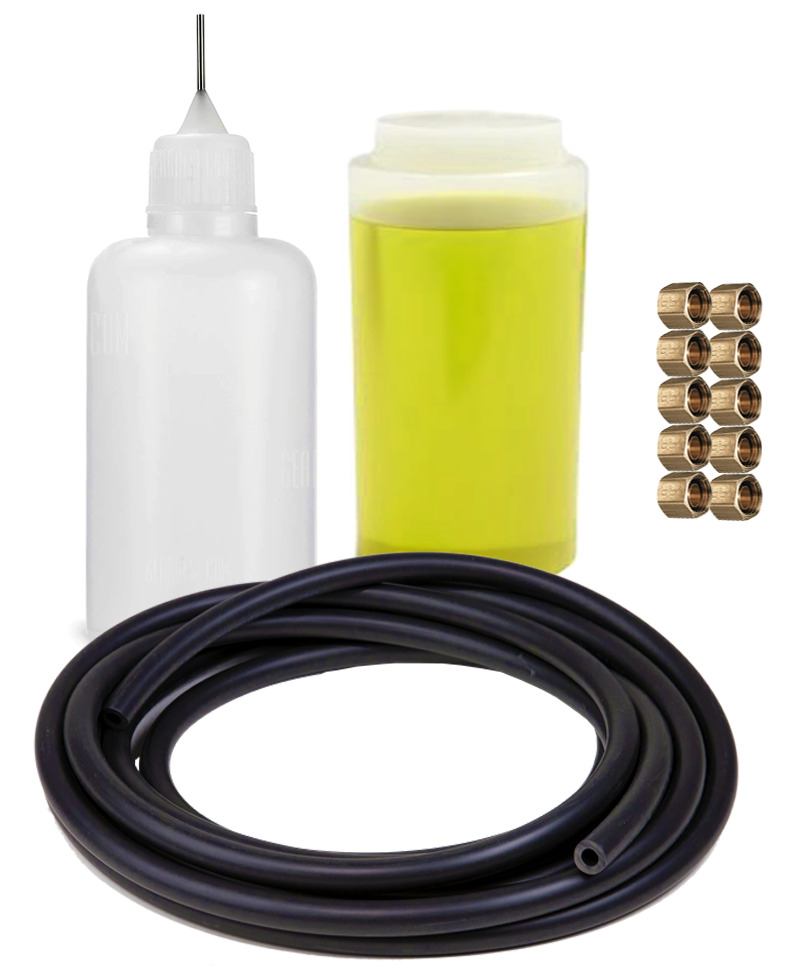

Dyna-Lift System Recharge Instructions

MSDS

Dyna-Lift MSDS Multi-Purpose Oil

Instructions

Dyna-Lift Tube Shortening Instructions

Drawing

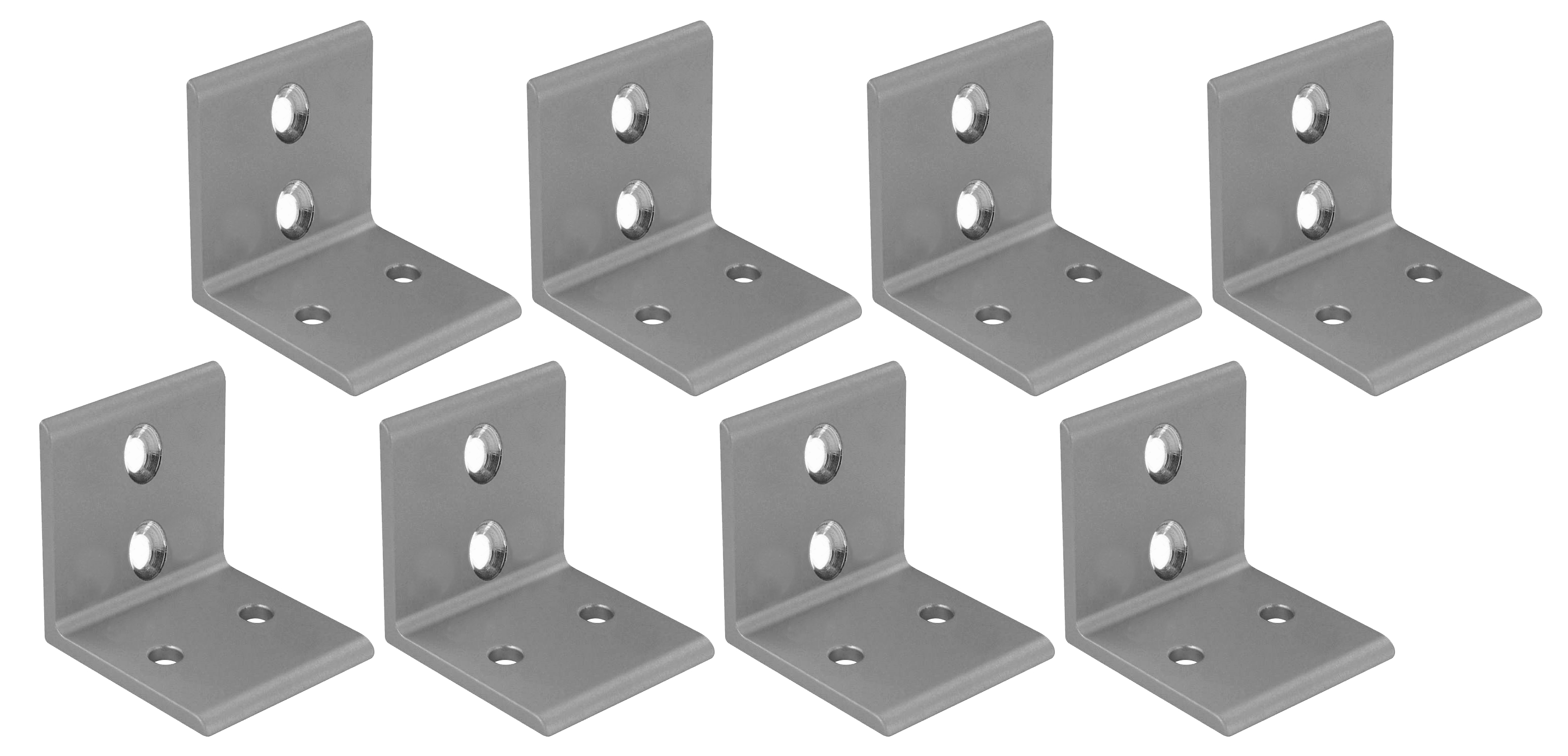

Dyna-Lift L-Bracket Drawing P/N DH-08000

Drawing

Dyna-Lift Handle Assembly Drawing DH-17100

Instructions

Dyna-Lift Repacking Seal Kit Instructions

Product Specifications

Attribute name	Attribute value
Features	Quickly convert a fixed height industrial machine, table or workbench to adjustable height; providing ergonomic workstations for worker safety and comfort. All kits are shipped fully charged ready to install. (Mounting hardware not included.) 250 pound capacity per leg on 4-post systems. Smooth quiet operation. Manual fold-away handle requires 5 handle rotations per inch of travel. Flexible Tubing: 3/16 in. OD with 1 inch minimum bend radius. No reservoir. Fluid is maintained in the pump and piston areas. System pressure is 625 psi nominal -2,500 psi burst/max. Uses colorless, odorless, non-staining, non-toxic hydraulic fluid. See MSDS above. Powder coated finish on pump and cylinder D-housing. Exposed cylinder rod-ends are steel with zinc plating. NOTE: Single acting cylinders, power up and gravity down. Approximately 20 pounds of weight per cylinder to retract properly.
Lift Table/Kit Type	4 leg / 4 post
Height Adj. / Vert. Travel	12 in / 20.4 cm
Capacity	1/2-ton / 453.5 kg
Shipping Specs	31 lbs., 37 in L x 9 in W x 8 in H
Country of Origin	Made in the USA
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
