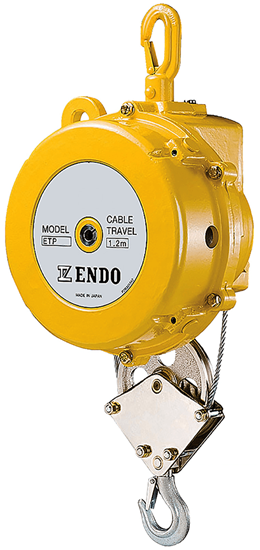

Endo ETP-16 Spring Balancer Capacity 374.7-440.9 lbs

Manufacturer: ENDO
Lead Time: typically ships in 40-50 business days
Documents, Drawings, and Manuals
Product Specifications
  • Capacity Range: 374.7 to 440.9 lbs. (170.0 to 200.0 kg)
  • Cable Travel: 3.9 ft. (1.2 m)
  • Cable Diameter: 0.236 in. (6.0 mm)
  • Unit Weight: 65.5 lbs. (29.7 kg)
  • Width: 10.86 in. (276 mm)
  • Depth: 10.86 in. (276 mm)
  • Length (hook to hook I.D.): 24.5 to 71.8 in. (623 to 1823 mm)
  • Color: Safety Yellow
  • Cable Material: Wire Rope (steel)
  • Top Hook: Aluminum forged swivel hook with safety latch.
  • Bottom Block: Steel hook with safety latch. Bottom sheave is double reeved.
  • Secondary Support: Includes top support eyelet to accommodate a safety chain.
  • Fully enclosed, high impact cast aluminum housing.
  • Fall-Arrest device prevents tool from dropping in the unlikely event that a spring breaks.
  • Easy and precise worm gear system spring adjustment.
  • Zero-Gravity tool holding with no drifting or strain.
  • Tapered drum, quality springs, and ball bearings provide smooth cable travel throughout the stroke.
  • CE mark available (European Conformity)
  • Worm Gear Spring Tension Adjustment:
    • Insert socket wrench in back of unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity).
    • Watch Video Here
  • Choosing the Right Spring Balancer:
    • Size the balancer to carry the total weight of the tool and all accessories to be balanced.
    • Use the upper end of the capacity range of the balancer when possible. For example, if the total tool weight is 10.5 lbs, a balancer with a capacity range of 5.5-11.0 lbs would be a better choice than one with a range of 9.9-19.8 lbs.
    • Choose the cable travel length that best suits your application.
Warranty 18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin Japan
