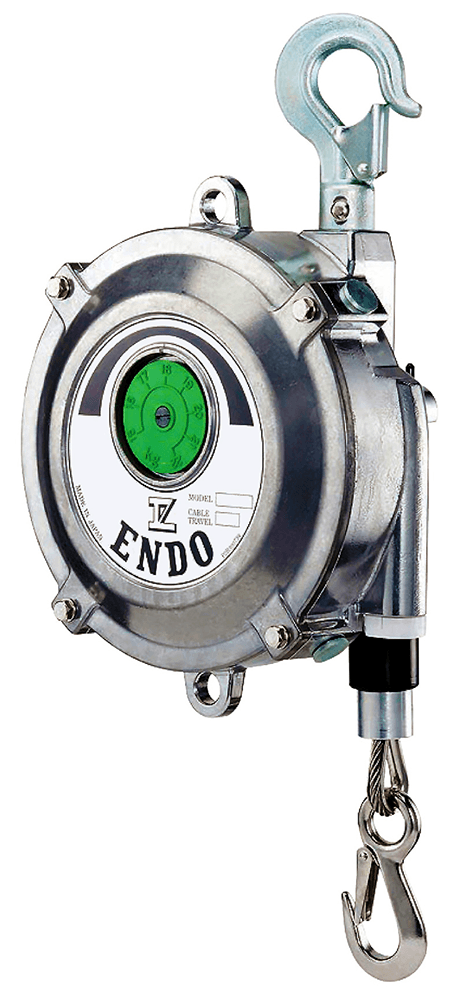

Endo EWF-15X Food Grade Spring Balancer Capacity 19.8-33.1 lbs

Manufacturer: ENDO
Manufacturer part number: XA-EWF-15X
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
Ship to
Shipping Method
Estimated Delivery
No shipping options
Product Specifications
Attribute nameAttribute value
  • Capacity Range: 19.8 to 33.1 lbs. (9.5 to 15.0 kg)
  • Cable Travel: 4.93 ft. (1.5 m)
  • Cable Diameter: 0.157 in. (4.0 mm)
  • Unit Weight: 8.4 lbs. (3.8 kg)
  • Width: 6.9 in. (175 mm)
  • Depth: 5.4 in. (137 mm)
  • Length (hook to hook I.D.): 13.4 to 64.6 in. (340 to 1640 mm)
  • Color: Unpainted Aluminum
  • Cable Material: Black Nylon
  • Top Hook: Zinc plated hook and pins.
  • Bottom Hook: Stainless steel hook, plug, rivet, bolts, and screws.
  • Secondary Support: Includes top support eyelet to accommodate a safety chain.

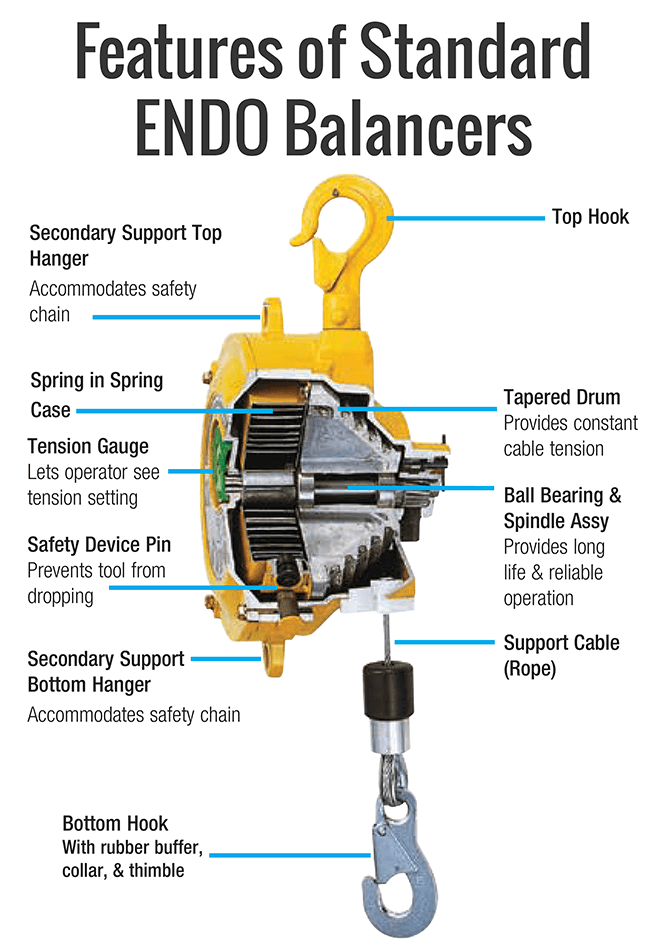

  • The ENDO Series X is an eco-friendly tool balancer.
  • The ultimate solution when particulates from the standard exterior balancer finish might contaminate food or sensitive assemblies.
  • Buffed and barrel-polished aluminum casing and cover.
  • Synthetic food-grade grease (H1 grade) on the spring.
  • Drum Lock mechanism available to lock the drum when replacing a tool.
  • Fall-Arrest device prevents tool from dropping in the unlikely event that a spring breaks.
  • Plug-Type cable set for easy cable replacement without dismantling the balancer.
  • Easy and precise worm gear system spring adjustment.
  • Zero-Gravity tool holding with no drifting or strain.
  • Tapered drum, quality springs, and ball bearings provide smooth cable travel throughout the stroke.
  • Worm Gear Spring Tension Adjustment:
    • Insert socket wrench in back of unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity).
    • Watch Video Here
  • Choosing the Right Spring Balancer:
    • Size the balancer to carry the total weight of the tool and all accessories to be balanced.
    • Use the upper end of the capacity range of the balancer when possible. For example, if the total tool weight is 10.5 lbs, a balancer with a capacity range of 5.5-11.0 lbs would be a better choice than one with a range of 9.9-19.8 lbs.
    • Choose the cable travel length that best suits your application.
Warranty18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginJapan
