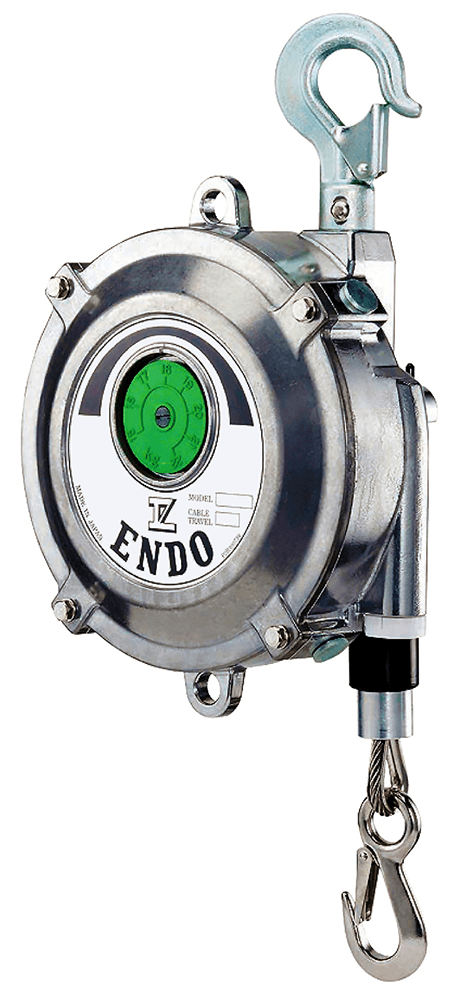

Endo EWF-40X Food Grade Spring Balancer Capacity 66.1-88.2 lbs

Manufacturer: ENDO
SKU: XA-EWF-40X
Lead Time: typically ships in 5-7 business days
*
$1,049.00
Product Specifications
Features
  • Capacity Range: 66.1 to 88.2 lbs. (30.0 to 40.0 kg)
  • Cable Travel: 4.93 ft. (1.5 m)
  • Cable Diameter: 0.188 in. (4.8 mm)
  • Unit Weight: 21.4 lbs. (9.7 kg)
  • Width: 8.7 in. (220 mm)
  • Depth: 7.4 in. (187 mm)
  • Length (hook to hook I.D.): 16.9 to 76.0 in. (429 to 1930 mm)
  • Color: Unpainted Aluminum
  • Cable Material: Stainless Steel Wire Rope
  • Top Hook: Zinc plated hook and pins.
  • Bottom Hook: Stainless steel hook, plug, rivet, bolts, and screws.
  • Secondary Support: Includes top and bottom support eyelets to accommodate safety chains.
  • The ENDO Series X is an eco-friendly tool balancer.
  • The ultimate solution when particulates from the standard exterior balancer finish might contaminate food or sensitive assemblies.
  • Buffed and barrel-polished aluminum casing and cover.
  • Synthetic food-grade grease (H1 grade) on the spring.
  • Drum Lock mechanism available to lock the drum when replacing a tool.
  • Fall-Arrest device prevents tool from dropping in the unlikely event that a spring breaks.
  • Plug-Type cable set for easy cable replacement without dismantling the balancer.
  • Easy and precise worm gear system spring adjustment.
  • Zero-Gravity tool holding with no drifting or strain.
  • Tapered drum, quality springs, and ball bearings provide smooth cable travel throughout the stroke.
  • Worm Gear Spring Tension Adjustment:
    • Insert socket wrench in back of unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity).
    • Watch Video Here
  • Choosing the Right Spring Balancer:
    • Size the balancer to carry the total weight of the tool and all accessories to be balanced.
    • Use the upper end of the capacity range of the balancer when possible. For example, if the total tool weight is 10.5 lbs, a balancer with a capacity range of 5.5-11.0 lbs would be a better choice than one with a range of 9.9-19.8 lbs.
    • Choose the cable travel length that best suits your application.
Warranty 18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin Japan
