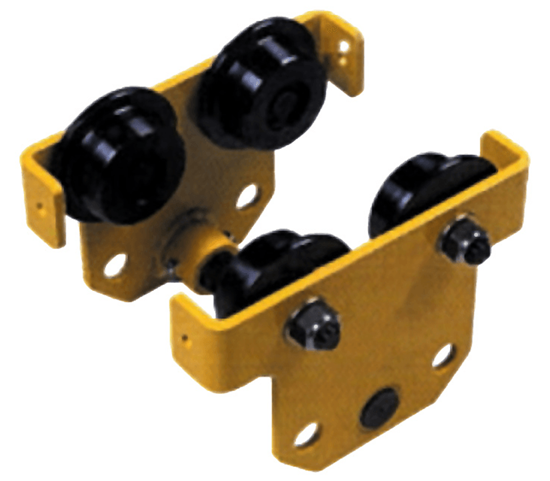

Endo PTF-125 I-Beam Trolley Capacity 276 lbs

Manufacturer: Conductix-Wampfler
Manufacturer part number: XA-PTF-125
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
Ship to
Shipping Method
Estimated Delivery
No shipping options
Documents, Drawings, and Manuals
Product Specifications
Attribute nameAttribute value
  • Capacity: 276 lbs. (125 kg)
  • I-Beam Flange Width: 2.0 in. or 2.95 in. (50 mm or 75 mm)
  • Minimum Radius Curve: 24 in. (600 mm)
  • Unit Weight: 3.5 lbs. (1.6 kg)
  • Length: 4.17 in. (106 mm)
  • Width: 5.27 in. (134 mm)
  • Depth: 5.0 in. (127 mm)
  • Material: Steel
  • Color: Safety Yellow
  • Used for suspending all types of ENDO tool balancers from I-beams, railways, or jib booms.
  • Easily adjustable for different size beams.
  • Frame is manufactured to protect the wheels from collisions with other trolleys. (Can also be fitted with rubber bumpers for further protection)
Warranty18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginJapan
