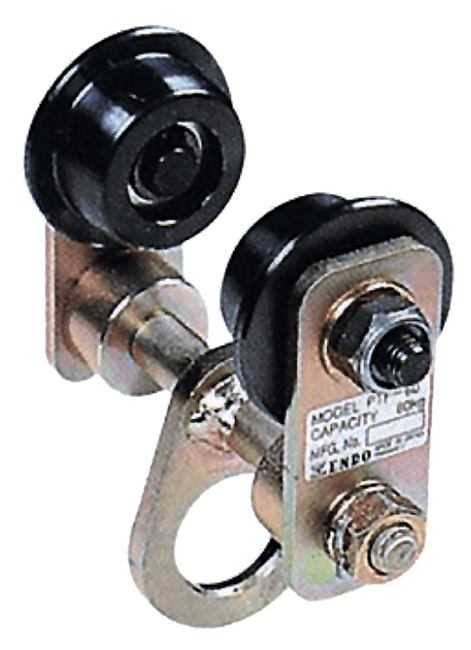

Endo PTF-60 I-Beam Trolley Capacity 132 lbs

Manufacturer: Conductix-Wampfler
Manufacturer part number: XA-PTF-60
Lead Time: typically ships in 5-7 business days
Documents, Drawings, and Manuals
Product Specifications
  • Capacity: 132 lbs. (60 kg)
  • I-Beam Flange Width: 2.95 in. (75 mm)
  • Minimum Radius Curve: (cannot be used on curved I-Beams)
  • Unit Weight: 1.8 lbs. (0.8 kg)
  • Length: 4.6 in. (117 mm)
  • Width: 5.0 in. (127 mm)
  • Depth: 1.25 in. (32 mm)
  • Material: Steel
  • Color: Metallic (anodized steel)
  • Used for suspending all types of ENDO tool balancers from I-beams, railways, or jib booms.
Warranty18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginJapan
