Flex Duo 9-36 VDC System with 1 One-Speed Transmitter and Horn Kit, FLEX-DUO-MRX-103-1T-1S-HK

Manufacturer: Magnetek

SKU: FLEX-DUO-MRX-103-1T-1S-HK

Manufacturer part number: FLEX-DUO-MRX-103-1T-1S-HK

Lead Time: typically ships in 2-3 business days

System Includes *

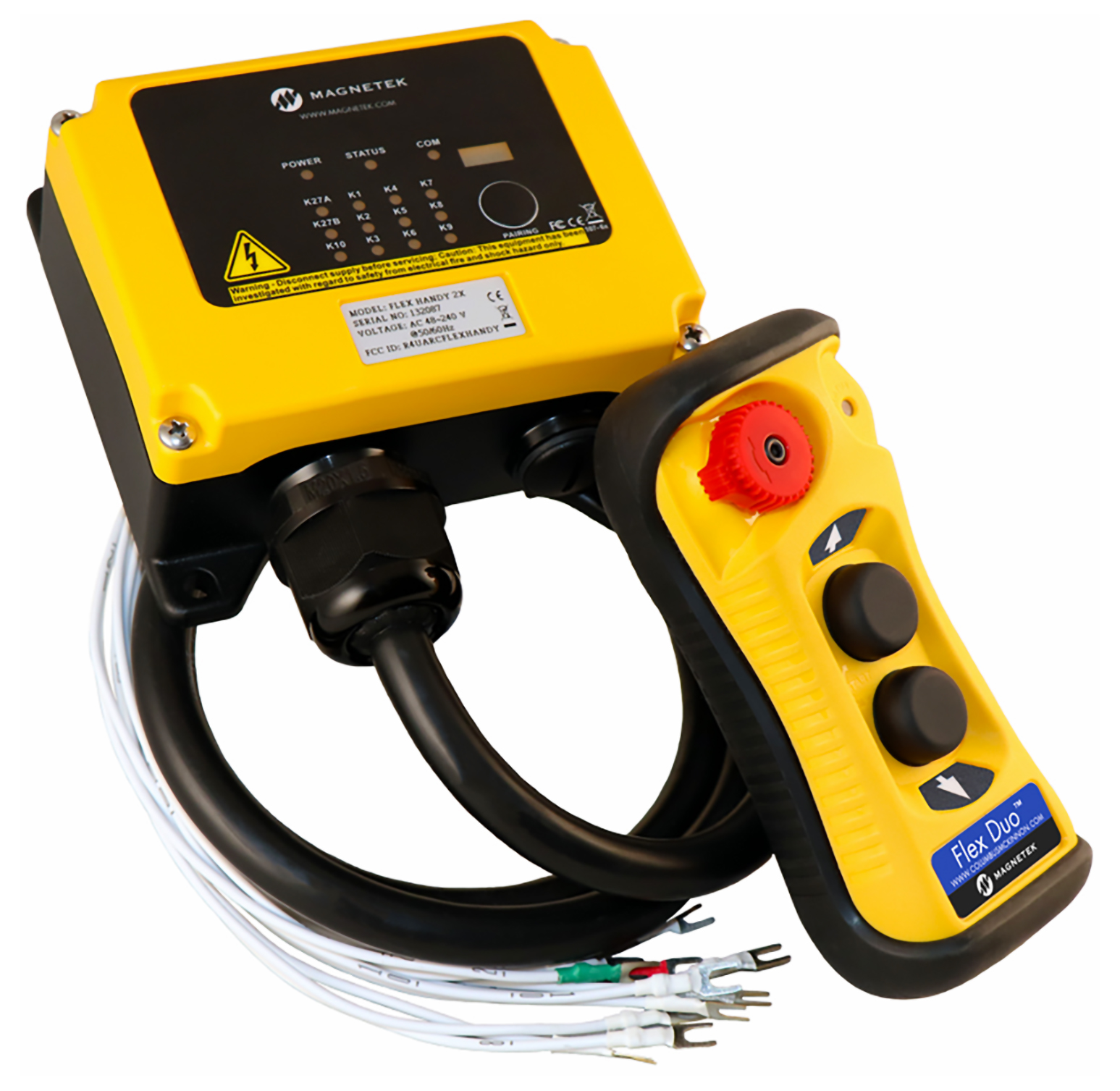

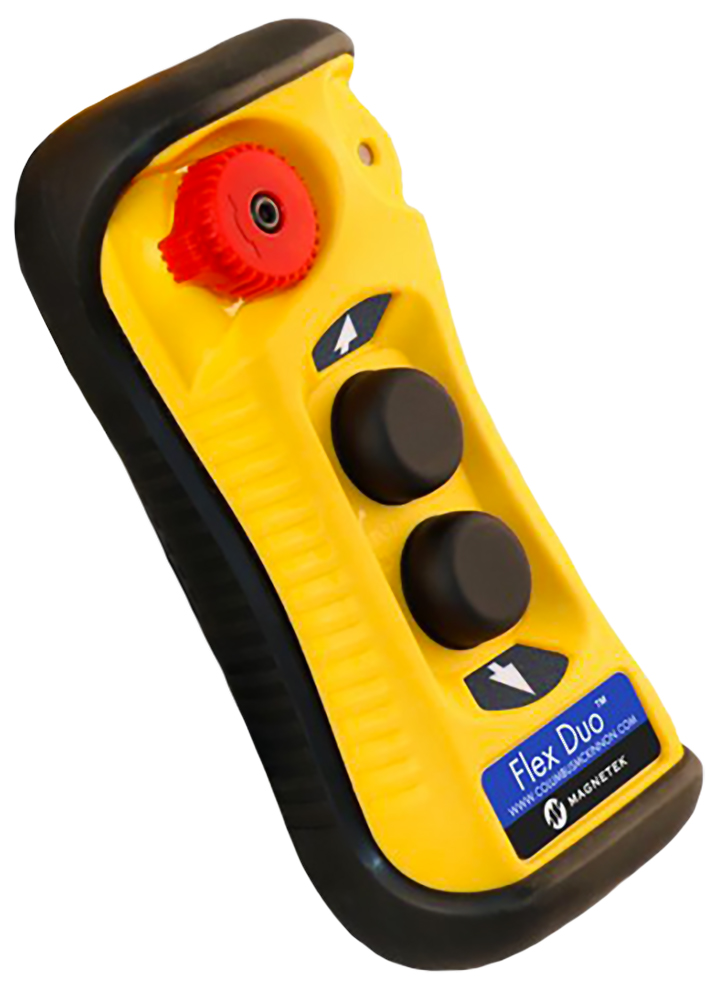

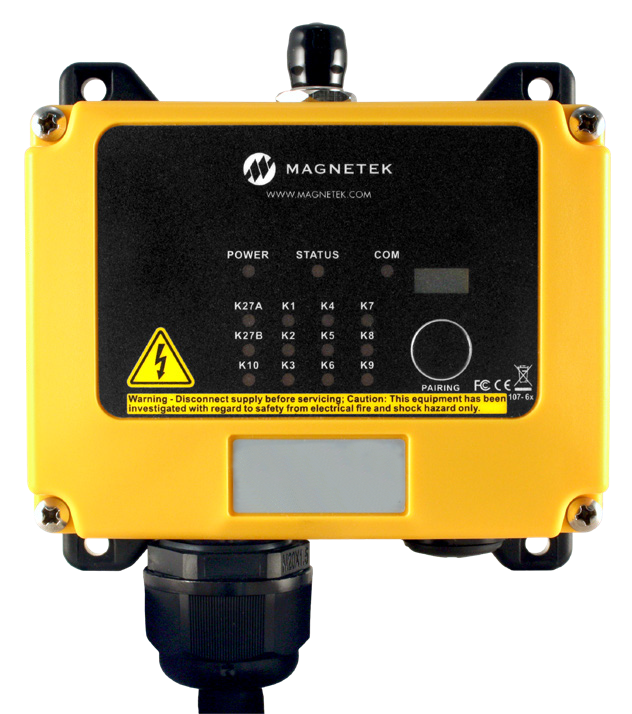

One transmitter with a pair of 1-speed pushbuttons & E-Stop button, Flex MRX receiver with pre-wired cable and horn kit, wrist strap, belt clip, pushbutton label sheet, keypad label sheet, and user manual on CD.

Receiver Power Supply *

9-36 VDC

Flex Duo Radio Accessories

Charging Station with AC wall adapters [+$238.00]
Transmitter Rubber Boot [+$26.00]
Transmitter Clear Vinyl Pouch [+$4.00]
Transmitter Ring Hook [+$7.00]

$625.00

Qty:

Documents, Drawings, and Manuals

Brochure

Flex Duo Wireless Radio Control Brochure

Manual

Flex Duo Wireless Radio Control Quick Reference Manual

Product Specifications

Features	System Applications: Built for single-motion applications and dual-direction motion such as up/down, forward/backward, or in/out. System Includes: One transmitter with a pair of 1-speed pushbuttons & E-Stop button, Flex MRX receiver with pre-wired cable and horn kit, wrist strap, belt clip, pushbutton label sheet, keypad label sheet, and user manual on CD. System Model No.: FLEX-DUO-MRX-103-1T-1S-HK Receiver Supply Voltage: 9-36 VDC Receiver Dimension: 4.72 in (L) x 5.54 in (W) x 2.17 in (H) / 120 mm (L) x 90 mm (W) x 55 mm (H) Receiver Weights: 0.91 kg / 2.0 lbs (includes output cable) Provides equipment operators with better positioning for job visibility and safety and extended lives for machines and hydraulic components. Improved Productivity - Allows operators to freely move throughout the facility and keep production running efficiently. Ergonomic Design - Lightweight and contoured to fit in the palm of an operator’s hand to reduce fatigue and allows for continued accurate control of equipment. Increased Safety - Allows operators to manage motions away from hazardous and dangerous situations with better vantage points. E-stop button puts the radio system into a safe state in emergency situations. Cost-Effective Solution - Designed specifically for two-button use so there is no need to modify a larger system that is intended to fit a broad application base, lowering engineering and manufacturing costs. Easy Integration - Can be easily combined with CM hoists to provide accuracy, precision, and ergonomic control for lifting and positioning applications. MRX Receiver - Lightweight receiver can be mounted on the control panel or the body of a hoist without causing any system imbalance. Voltage Select feature automatically adapts to the control voltage from three available power supplies.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
