Gorbel Adjustable Height Gantry Crane, 2-Ton, Ht. 9-12 ft, Span 20 ft

Manufacturer: Gorbel
SKU: AG-2-9/12-20
Lead Time: typically ships in 13-16 business days
*
$3,965.00
Product Specifications
Features
  • Capacity: 2-Ton
  • Span: 20 ft.
  • Height Under Boom (HUB): 9 to 12 ft. (adjustable)
  • Overall Height: 13 ft. 1/2 in. (max)
  • I-Beam Size: W12 @ 35 lbs/ft
  • I-Beam Depth: 12-1/2 in.
  • I-Beam Flange Width: 6-1/2 in.
  • Clear Span: 18 ft. 7-5/8 in.
  • Gantry Tread: 6 ft. 6 in.
  • Crane Material: Steel
  • Provides the most flexible lifting solution of any style gantry crane.
  • Easily adjusted to provide different lifting heights.
  • Bolted beam to upright connection ensures safety.

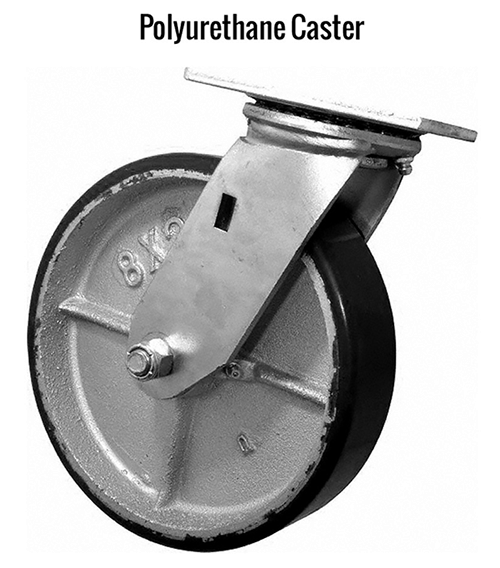

  • Molded phenolic casters are standard and allow for easy movement.
  • Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty 10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin Made in the USA
