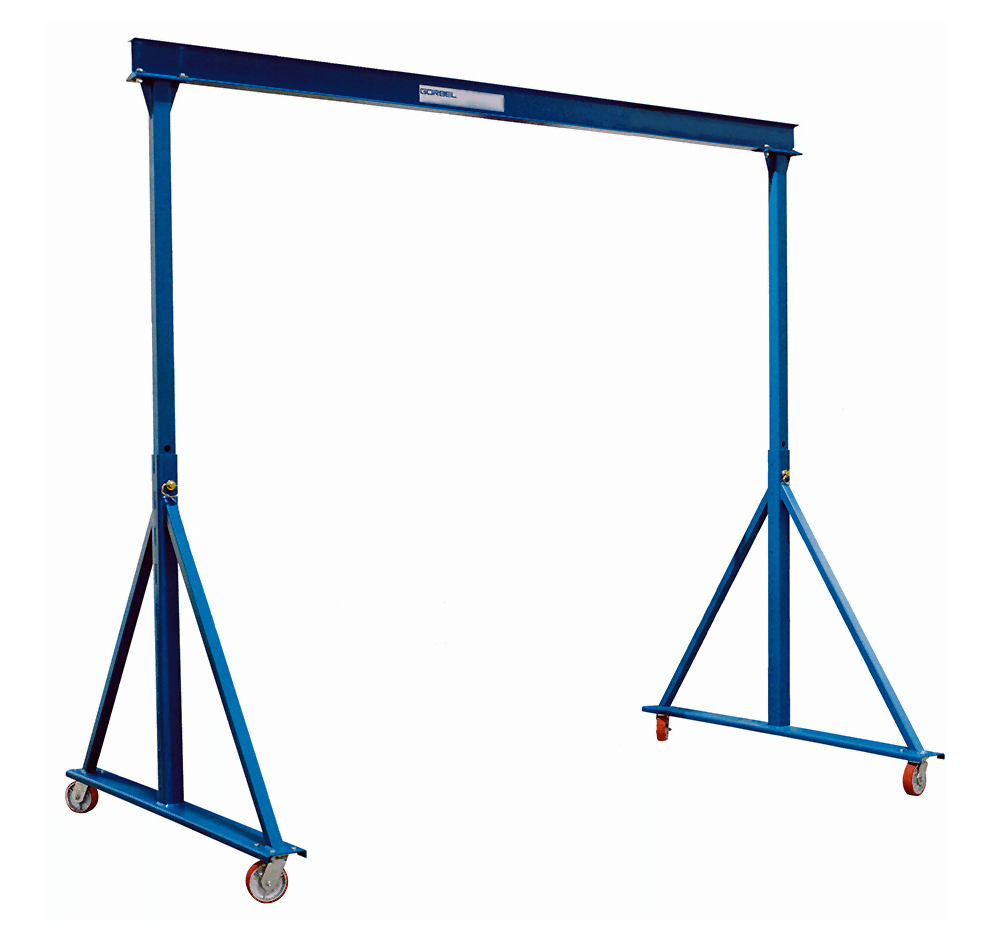

Gorbel Adjustable Height Gantry Crane, 5-Ton, Ht. 12-15 ft, Span 10 ft

Manufacturer: Gorbel
SKU: AG-5-12/15-10
Lead Time: typically ships in 13-16 business days
*
$5,760.00
Product Specifications
Features
  • Capacity: 5-Ton
  • Span: 10 ft.
  • Height Under Boom (HUB): 12 to 15 ft. (adjustable)
  • Overall Height: 16 ft. 4-1/8 in. (max)
  • I-Beam Size: W16 @ 45 lbs/ft
  • I-Beam Depth: 16-1/8 in.
  • I-Beam Flange Width: 7-1/16 in.
  • Clear Span: 8 ft. 1/2 in.
  • Gantry Tread: 6 ft. 6 in.
  • Crane Material: Steel
  • Provides the most flexible lifting solution of any style gantry crane.
  • Easily adjusted to provide different lifting heights.
  • Bolted beam to upright connection ensures safety.

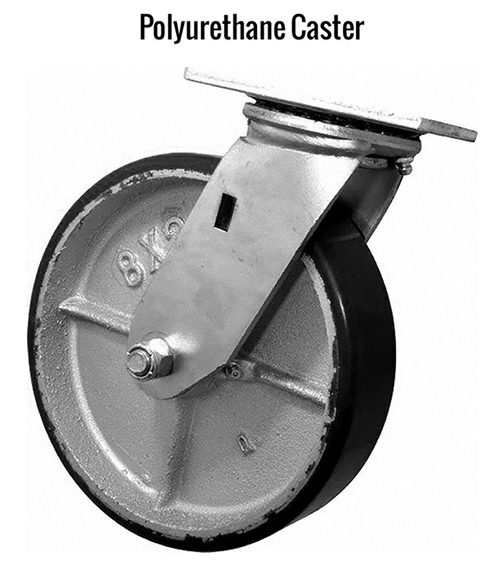

  • Molded phenolic casters are standard and allow for easy movement.
  • Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty 10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin Made in the USA
