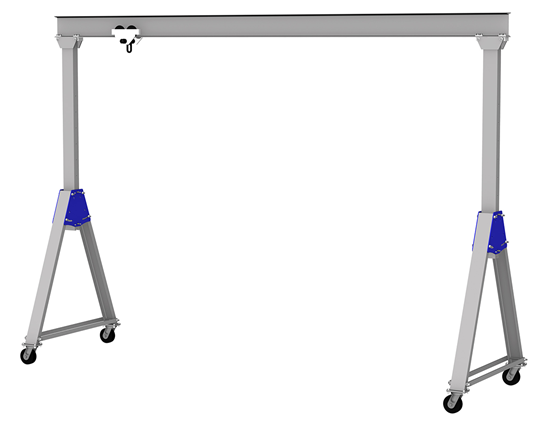

Gorbel Aluminum Gantry Crane, 1-Ton, Ht. 9-12 ft, Span 8 ft

Manufacturer: Gorbel
SKU: ALUG-2000-9/12-8
Manufacturer part number: ALUG-2000-9/12-8
Lead Time (subject to change, call to verify): typically ships in 13-16 business days
*
$5,799.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Capacity: 1-Ton
  • Span: 8 ft.
  • Height Under Boom (HUB): 9 to 12 ft. (adjustable)
  • Overall Height: 12 ft. 8 in. (max)
  • I-Beam Size: 8 X 4.001 X 0.271 in.
  • I-Beam Depth: 8 in.
  • I-Beam Flange Width: 4 in.
  • Clear Span: 6 ft. 7-7/8 in.
  • Gantry Tread: 4 ft. 3 in.
  • Crane Material: Aluminum
  • Shipping Weight (Overall Weight): 376 lbs.
  • Made from lightweight aluminum track making it easy to lift and transfer from location to location.
  • Easily adjusted to provide different lifting heights.
  • Simple set up and break down allows the gantry to be collapsed and stored when not in use.
  • Bolted beam to upright connection ensures safety.

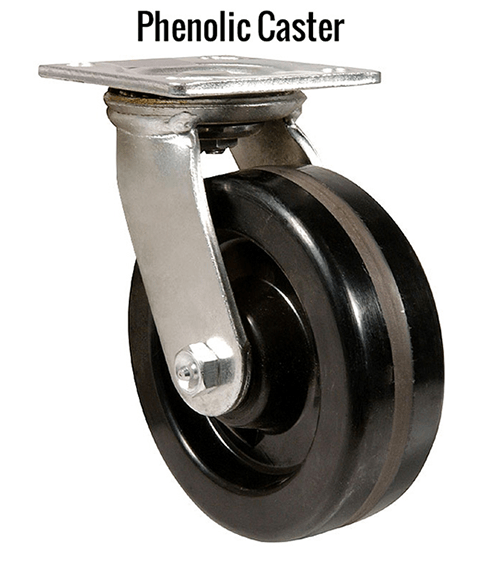

  • Molded phenolic casters are standard and allow for easy movement.
  • Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
