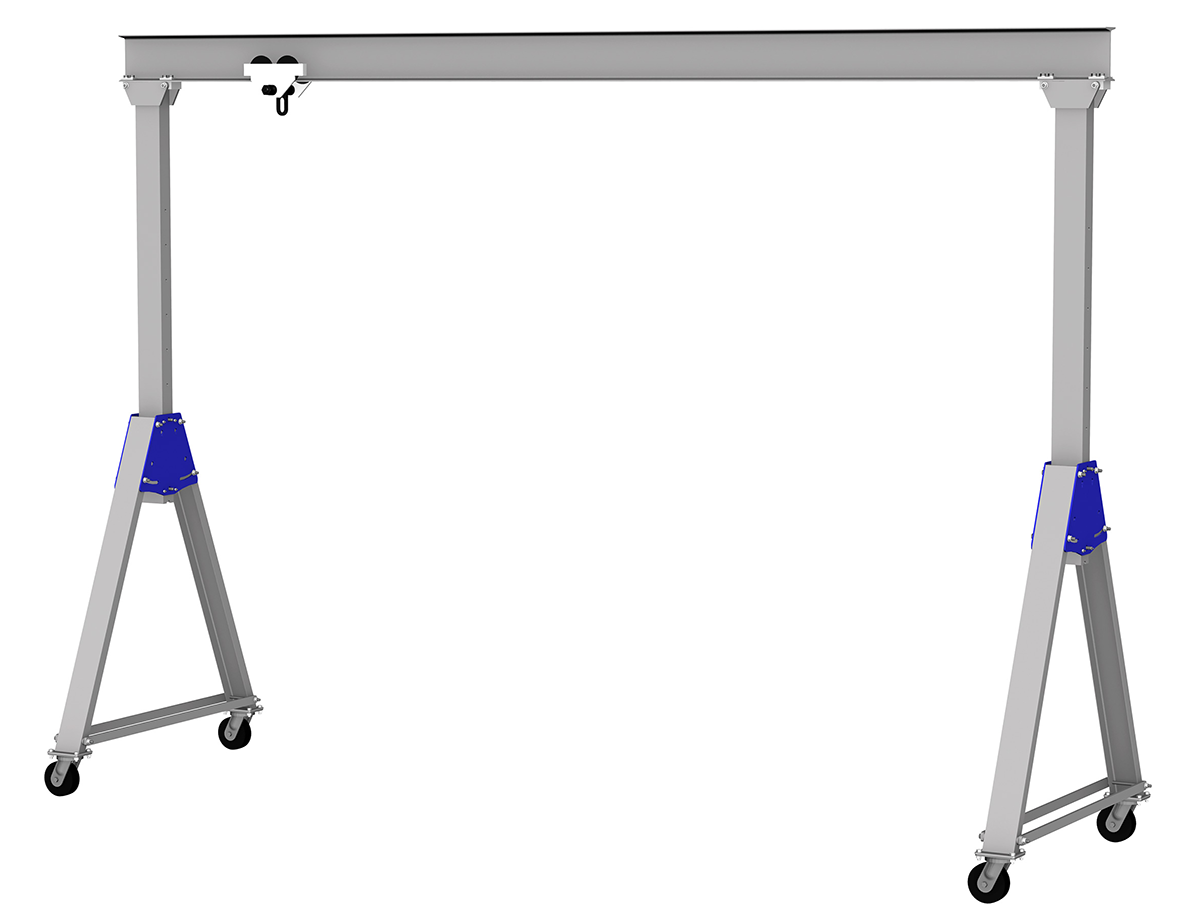

Gorbel Aluminum Gantry Crane, 2-Ton, Ht. 7.5-10.5 ft, Span 20 ft

Manufacturer: Gorbel
SKU: ALUG-4000-7.5/10.5-20
Manufacturer part number: ALUG-4000-7.5/10.5-20
Lead Time: typically ships in 13-16 business days
Product Specifications
  • Capacity: 2-Ton
  • Span: 20 ft.
  • Height Under Boom (HUB): 7.5 to 10.5 ft. (adjustable)
  • Overall Height: 11 ft. 6 in. (max)
  • I-Beam Size: 12 X 5 X 0.35┬áin.
  • I-Beam Depth: 12 in.
  • I-Beam Flange Width: 5 in.
  • Clear Span: 18 ft. 6-7/8 in.
  • Crane Material: Aluminum
  • Made from lightweight aluminum track making it easy to lift and transfer from location to location.
  • Easily adjusted to provide different lifting heights.
  • Simple set up and break down allows the gantry to be collapsed and stored when not in use.
  • Bolted beam to upright connection ensures safety.

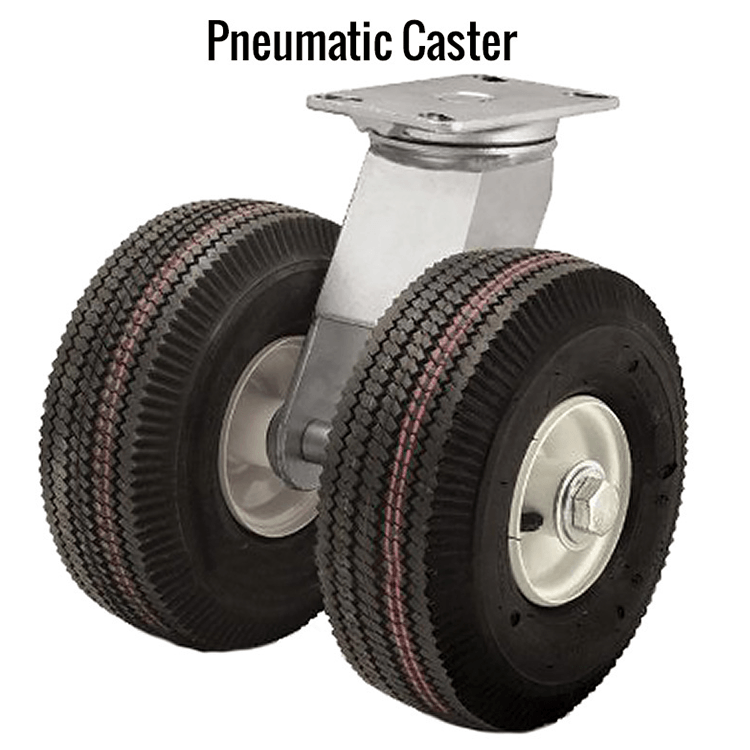

  • Molded phenolic casters are standard and allow for easy movement.
  • Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
