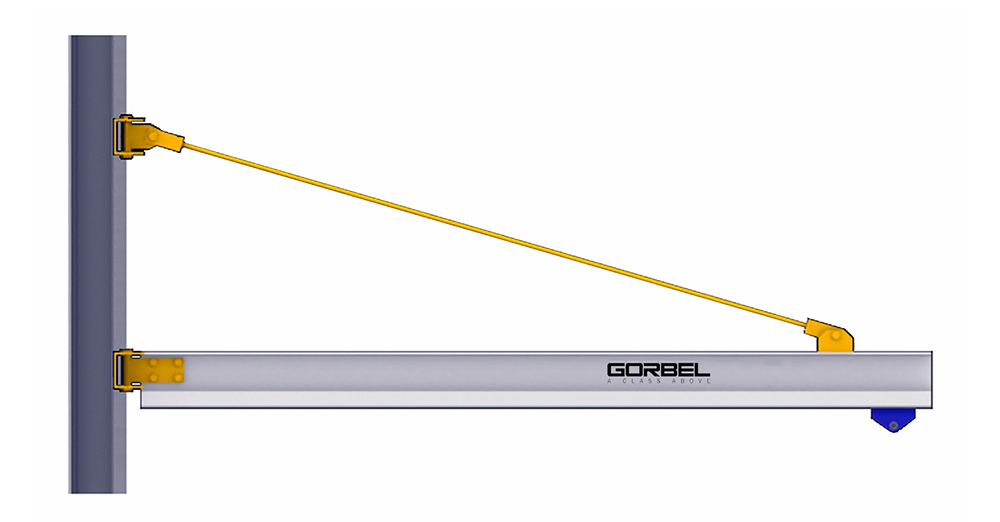

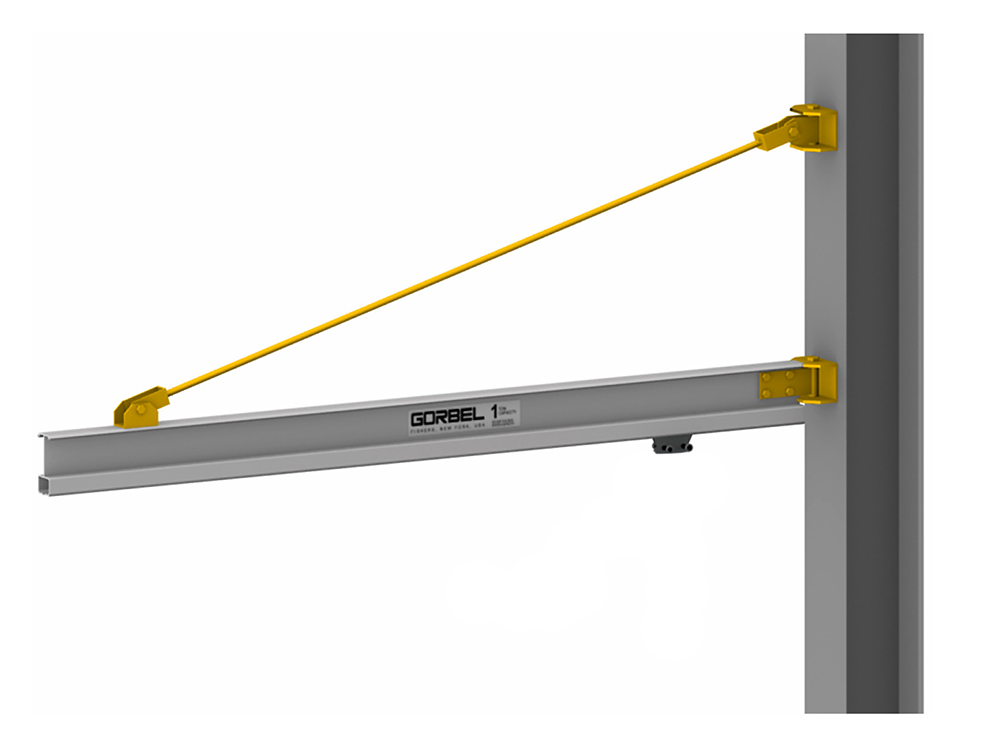

Gorbel Aluminum Wall Mounted Jib Crane, 150 lbs, Span 20 ft

Manufacturer: Gorbel

SKU: AL100-G1-150-20

Manufacturer part number: AL100-G1-150-20

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Hoist Trolley *

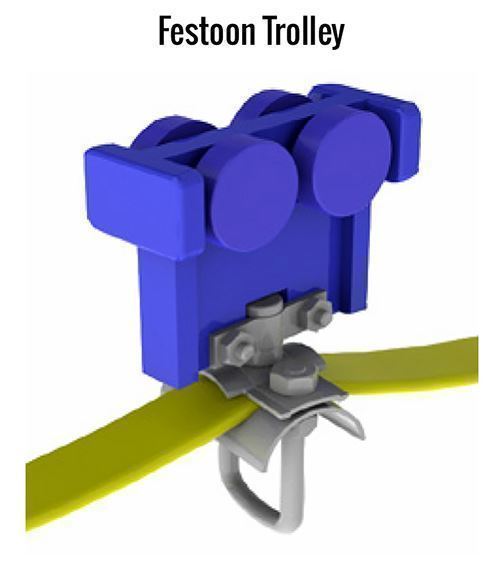

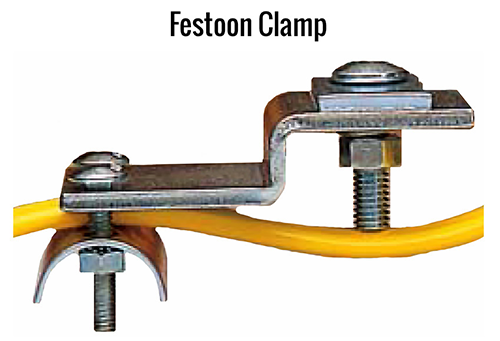

Festoon Conductor Type *

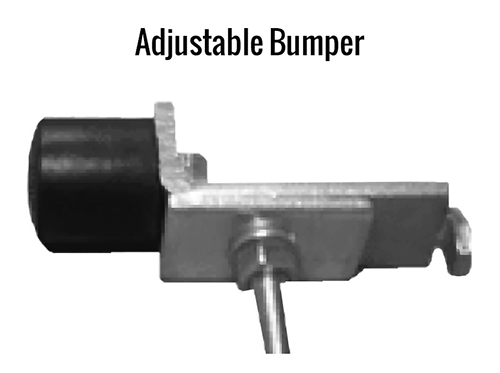

Crane Accessories

$2,693.66

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Wall Mounted Jib Crane Brochure

Manual

Gorbel Aluminum Jib Crane AL100 Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Product Specifications

Attribute name	Attribute value
Features	Capacity: 150 lbs. Span: 20 ft. Enclosed Track Series: 250 Fitting Size: G1 Bracket Centers: 3 ft. 6 in. Overturning Moment: 4.895 K-Ft Axial Load: 0.2879 Kips Thrust and Pull: 1.399 Kips Hoist Trolley Included: 1 ea. Hoist Allowance: 22.5 lbs. Tie Rod Diameter: 1 in. Tie Rod Pitch: 8 unc Tie Rod Length: 191 13/16 in. T1 Dimension: 2 3/4 in. Coverage: 200° Semi-Circular Rotation Shipping Weight (Overall Weight): 233 lbs. Utilizes Gorbel's patented lightweight aluminum track which rotates up to 40% easier than the traditional I-Beam jib. Reduced deadweight of boom assembly. Tie rod minimizes deflection for more precise positioning. Designed to support tool balancers, air balancers, vacuum lifters, and hoists. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
