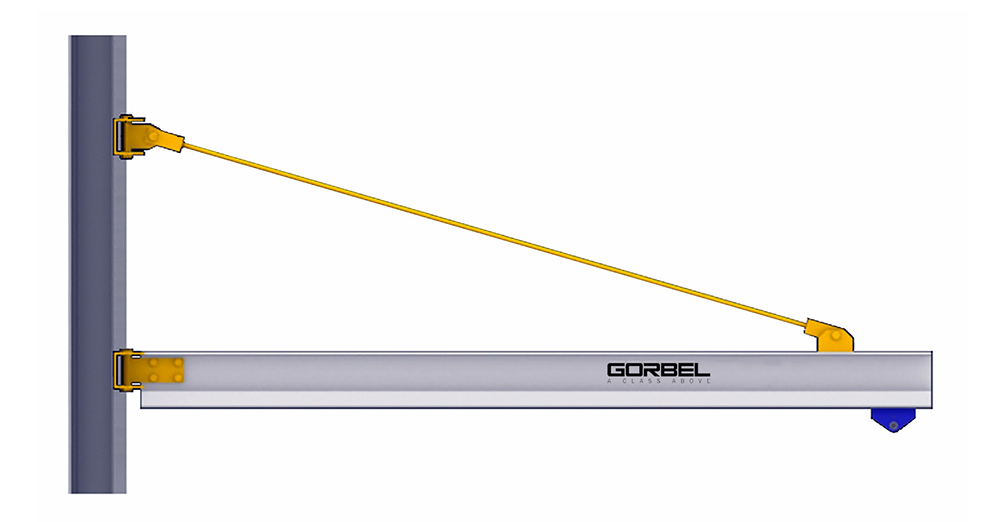

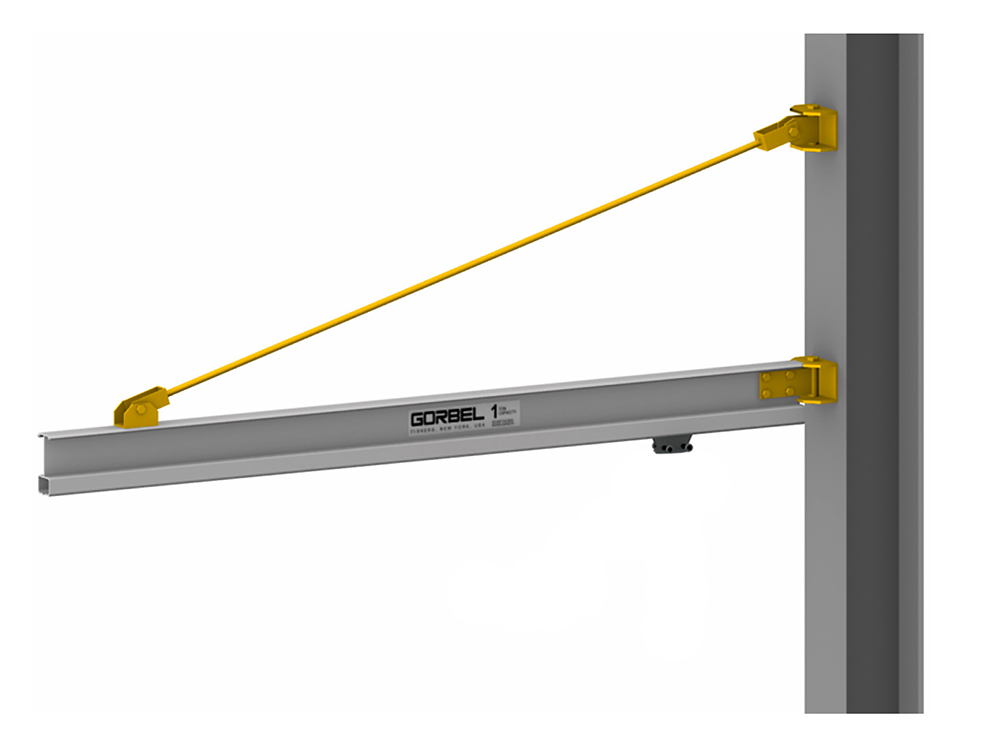

Gorbel Aluminum Wall Mounted Jib Crane, 500 lbs, Span 8 ft

Manufacturer: Gorbel
SKU: AL100-G1-500-8
Manufacturer part number: AL100-G1-500-8
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
$2,263.93
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Capacity: 500 lbs.
  • Span: 8 ft.
  • Enclosed Track Series: 500
  • Fitting Size: G1
  • Bracket Centers: 3 ft. 0 in.
  • Overturning Moment: 5.4004 K-Ft
  • Axial Load: 0.8308 Kips
  • Thrust and Pull: 1.8 Kips
  • Hoist Trolley Included: 1 ea.
  • Hoist Allowance: 75 lbs.
  • Tie Rod Diameter: 1 in.
  • Tie Rod Pitch: 8 unc
  • Tie Rod Length: 67 15/16 in.
  • T1 Dimension: 2 5/8 in.
  • Coverage: 200° Semi-Circular Rotation
  • Shipping Weight (Overall Weight): 175 lbs.
  • Utilizes Gorbel's patented lightweight aluminum track which rotates up to 40% easier than the traditional I-Beam jib.
  • Reduced deadweight of boom assembly.
  • Tie rod minimizes deflection for more precise positioning.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
