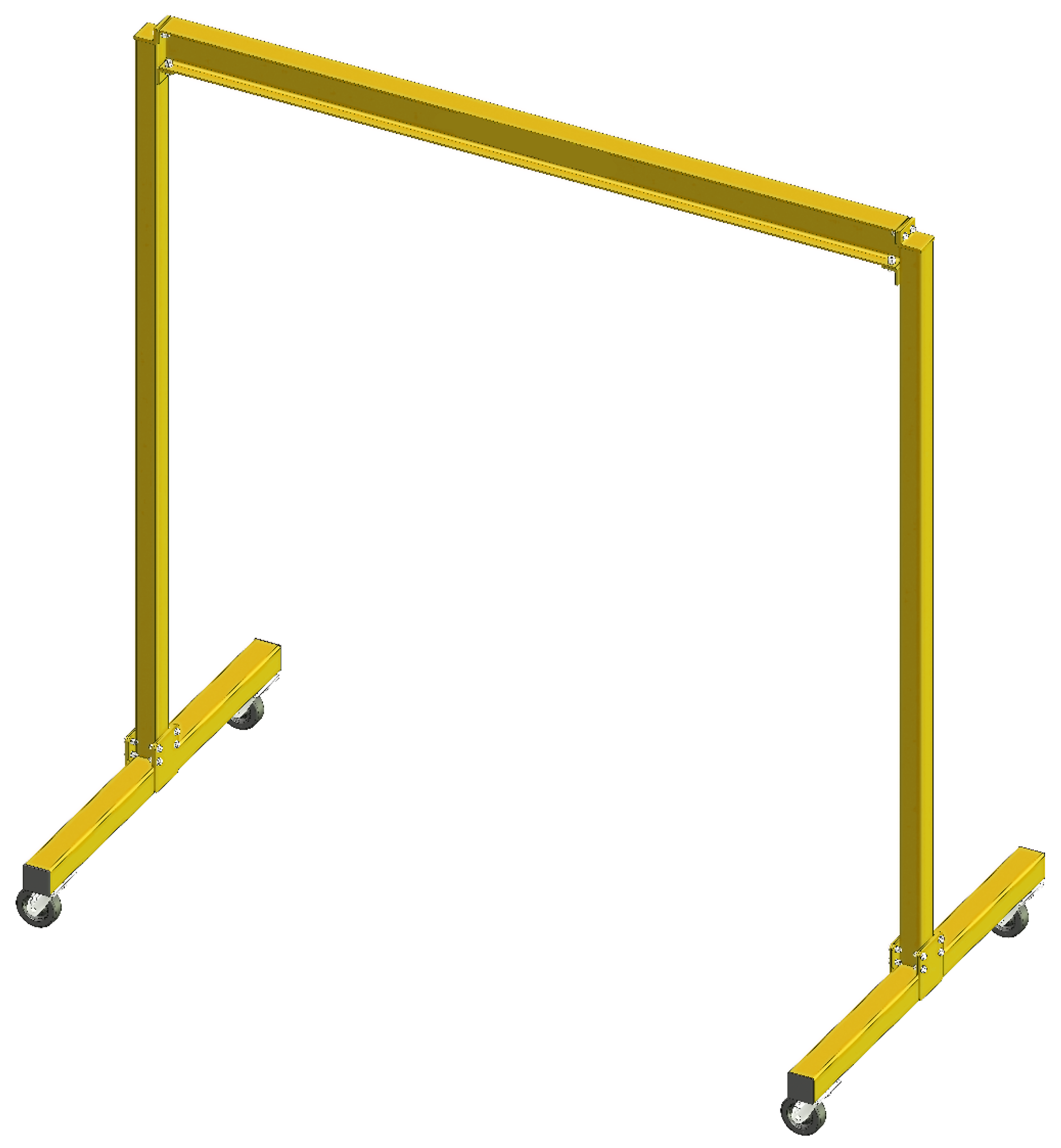

Gorbel Fixed Height Gantry Crane, 1-Ton, Ht. 10 ft, Span 12 ft

Manufacturer: Gorbel
SKU: FGM-1-10-12
Manufacturer part number: FGM-1-10-12
Lead Time: typically ships in 13-16 business days
*
*
*
$2,014.00
Product Specifications
Features
  • Capacity: 1-Ton
  • Span: 12 ft.
  • Height Under Boom (HUB): 10 ft.
  • Overall Height: 10 ft. 6 in.
  • I-Beam Size: W6 @ 12 lbs/ft
  • I-Beam Depth: 6 in.
  • I-Beam Flange Width: 4.0 in.
  • Clear Span: 11 ft. 2 in.
  • Gantry Tread: 4 ft. 11 in.
  • Crane Material: Steel
  • Movable under load.
  • Bolted beam to upright connection ensures safety.

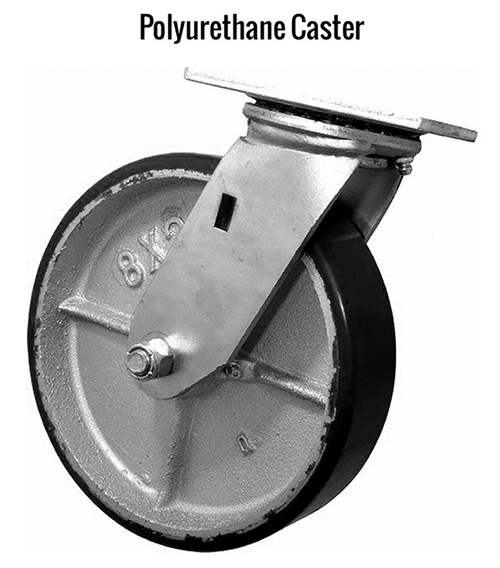

  • Molded phenolic casters are standard and allow for easy movement.
  • Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • All Gorbel Fixed Height Gantry Cranes ship Freight Class 250.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
