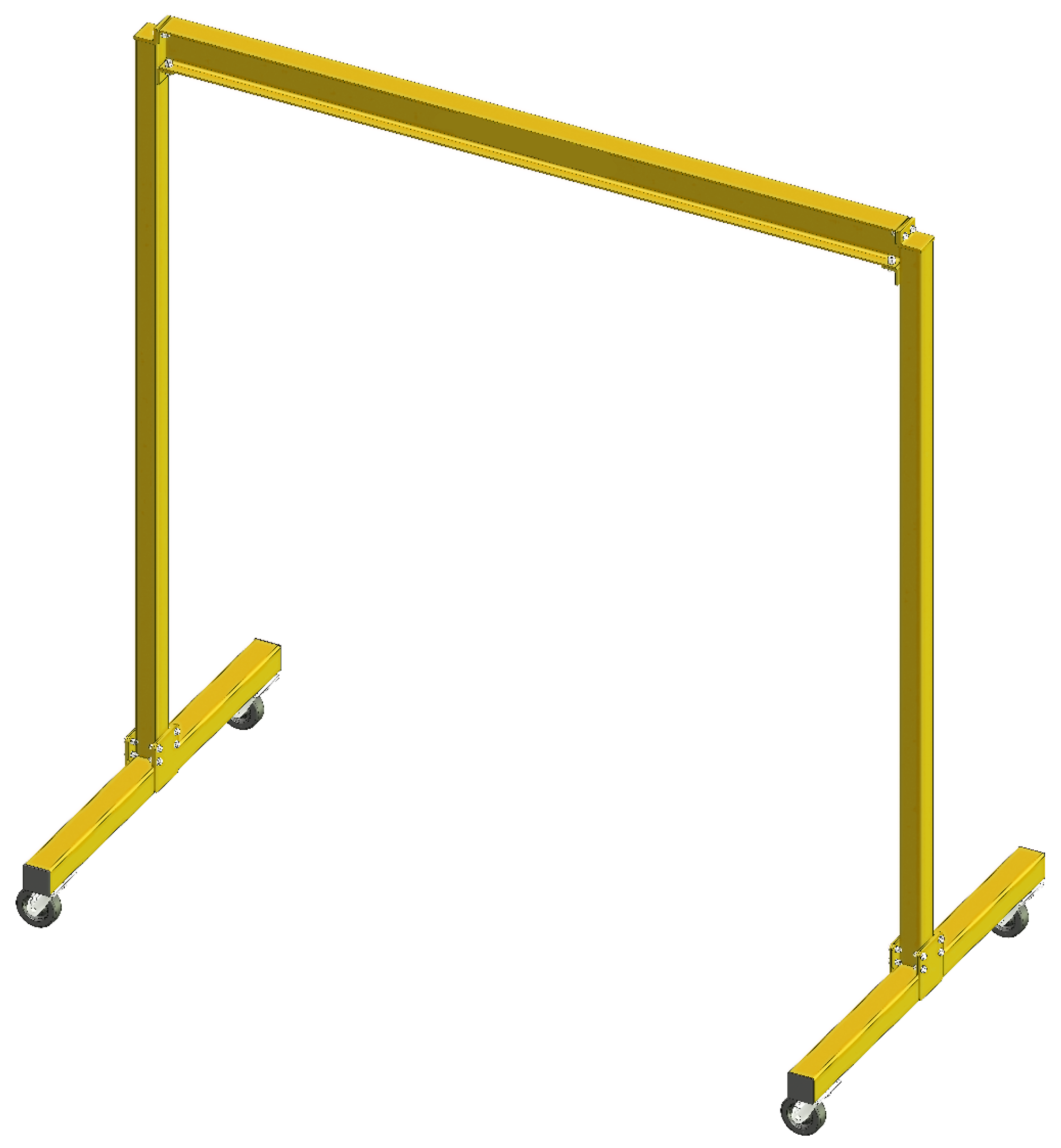

Gorbel Fixed Height Gantry Crane, 3-Ton, Ht. 10 ft, Span 8 ft

Manufacturer: Gorbel
SKU: FGM-3-10-8
Manufacturer part number: FGM-3-10-8
Lead Time (subject to change, call to verify): typically ships in 13-16 business days
*
*
*
$5,508.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Capacity: 3-Ton
  • Span: 8 ft.
  • Height Under Boom (HUB): 10 ft.
  • Overall Height: 10 ft. 10-9/16 in.
  • I-Beam Size: W10 @ 26 lbs/ft
  • I-Beam Depth: 10-5/16 in.
  • I-Beam Flange Width: 5-3/4 in.
  • Clear Span: 6 ft. 9-13/16 in.
  • Gantry Tread: 5 ft. 3 in.
  • Crane Material: Steel
  • Shipping Weight (Overall Weight): 814 lbs.
  • Movable under load.
  • Bolted beam to upright connection ensures safety.
  • Molded phenolic casters are standard and allow for easy movement.
  • Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • All Gorbel Fixed Height Gantry Cranes ship Freight Class 250.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
