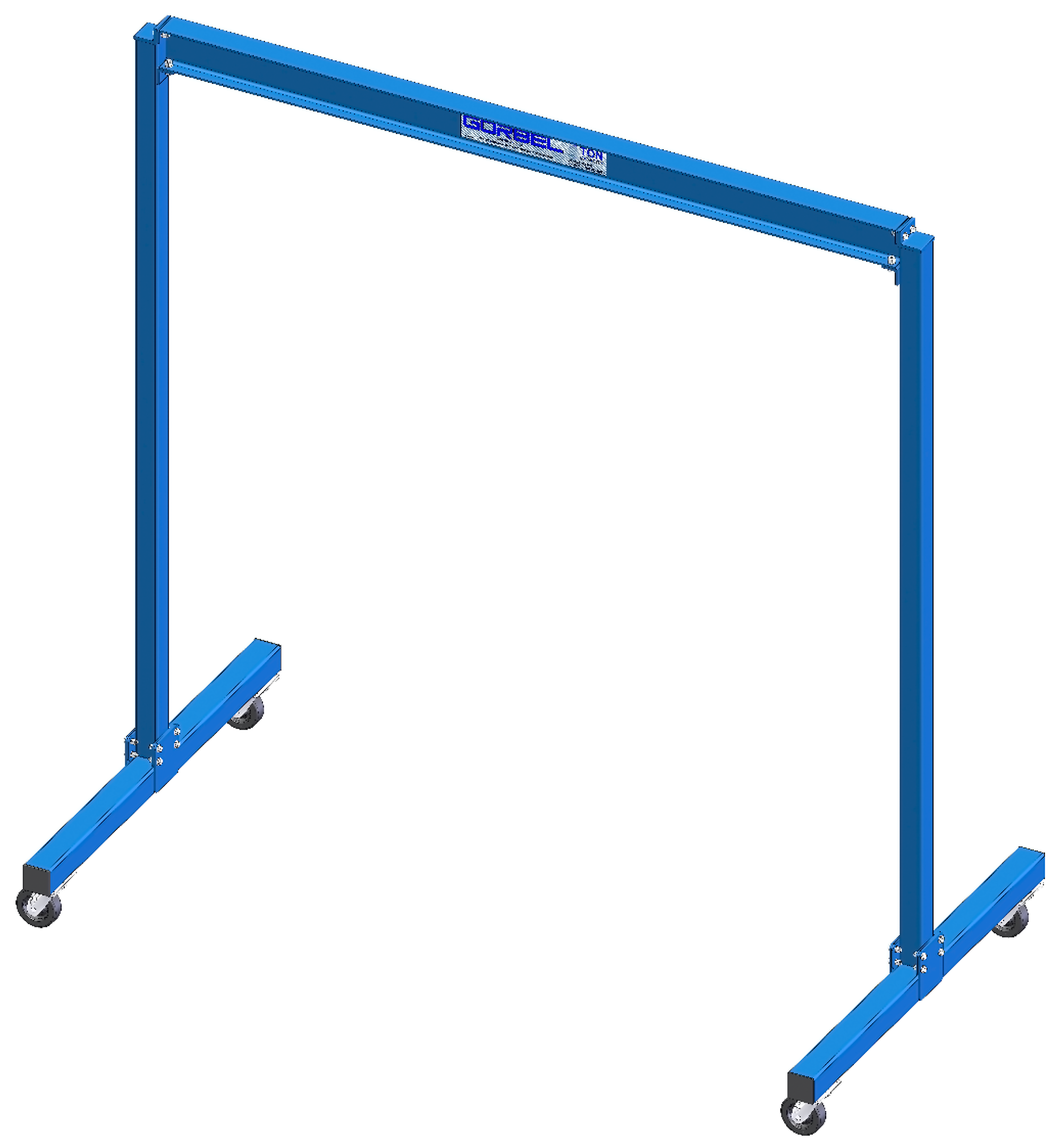

Gorbel Fixed Height Gantry Crane, 3-Ton, Ht. 15 ft, Span 30 ft

Manufacturer: Gorbel
SKU: FGM-3-15-30
Manufacturer part number: FGM-3-15-30
Lead Time: typically ships in 13-16 business days
*
*
*
$8,855.00
Product Specifications
Features
  • Capacity: 3-Ton
  • Span: 30 ft.
  • Height Under Boom (HUB): 15 ft.
  • Overall Height: 16 ft. 10 in.
  • I-Beam Size: W21 @ 62 lbs/ft
  • I-Beam Depth: 21 in.
  • I-Beam Flange Width: 8-1/4 in.
  • Clear Span: 28 ft. 5-5/16 in.
  • Gantry Tread: 6 ft. 7 in.
  • Crane Material: Steel
  • Shipping Weight (Overall Weight): 2,982 lbs.
  • Movable under load.
  • Bolted beam to upright connection ensures safety.
  • Molded phenolic casters are standard and allow for easy movement.
  • Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • All Gorbel Fixed Height Gantry Cranes ship Freight Class 250.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
