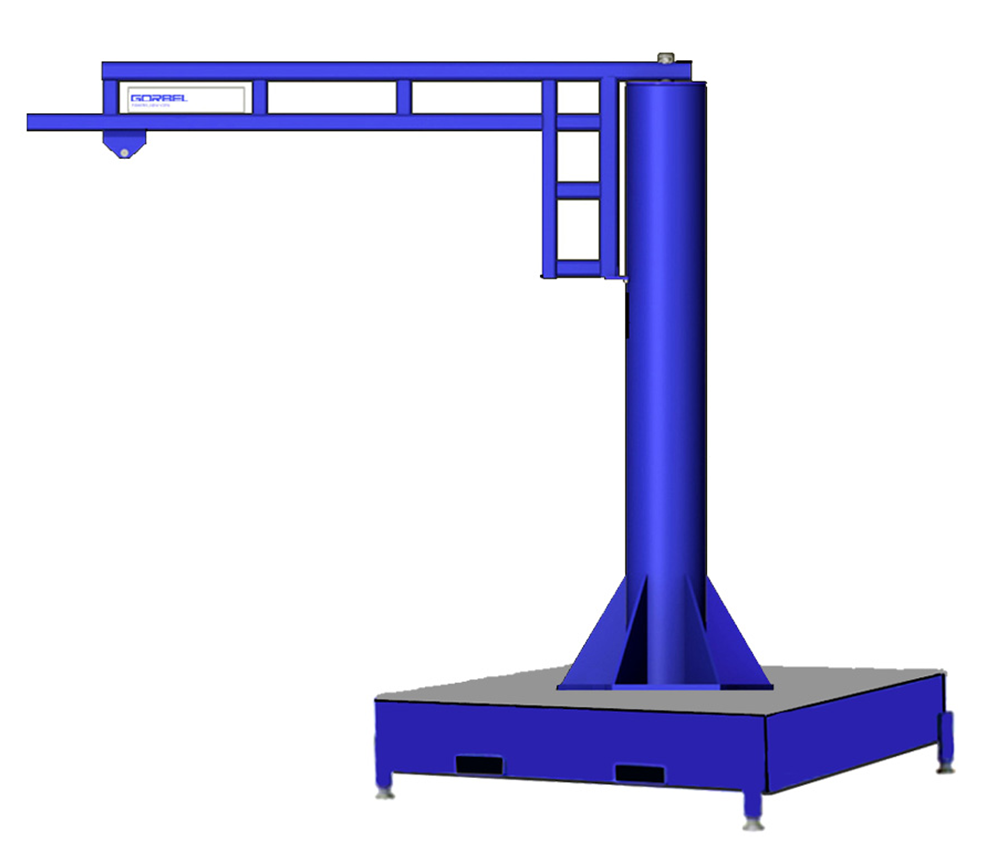

Gorbel Foundationless Free Standing Work Station Jib Crane, Capacity 250 lbs, Height 8 ft, Span 12 ft, Model WSJ360-NP6-250-8-12

Manufacturer: Gorbel
SKU: WSJ360-NP6-250-8-12
Manufacturer part number: WSJ360-NP6-250-8-12
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
*
*
$3,329.73
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Capacity: 250 lbs.
  • Overall Height (Crane Only): 9.55 ft.
  • Height Under Boom (HUB): 8 ft.
  • Span: 12 ft.
  • Pipe Size: 8.63 in.
  • Enclosed Track Series: 500
  • Overturning Moment: 4.72 K-Ft
  • Axial Load: 0.67 Kips
  • Anchor Bolt Load: 0.91 Kips
  • Thickness at Anchor Bolt: 1/2 in.
  • Hoist Trolley Included: 1 ea.
  • Hoist Allowance: 38 lbs.
  • Coverage: Circular 360 degree rotation
  • Shipping Weight (Overall Weight): 543 lbs.
  • NP6 Foundationless models are mounted to a 6 inch reinforced floor that require:
    • Centered placement on a square area that is free from cracks, seams, and walls.
    • Chemical anchor bolts that can withstand a minimum of 3,470 pounds of pull out force.
    • Concrete pressure of 3,000 psi that contains wire mesh reinforcement.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
  • Special foundations may be required; crane drawing will have foundation requirements.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
