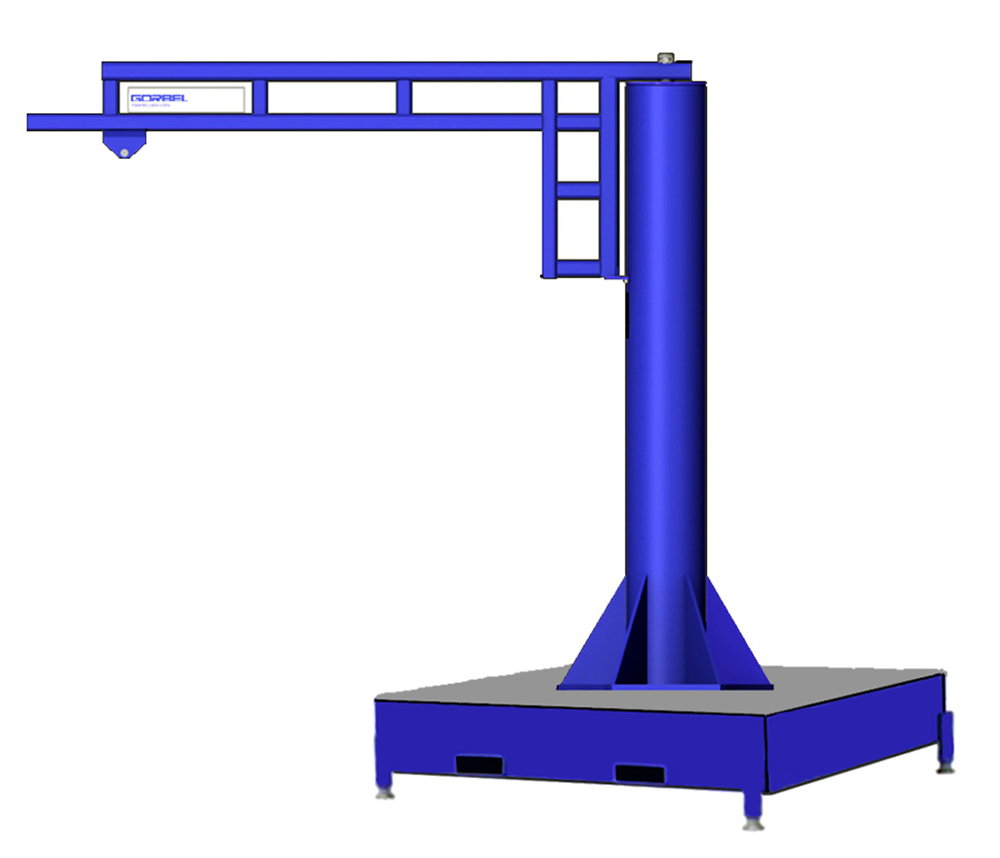

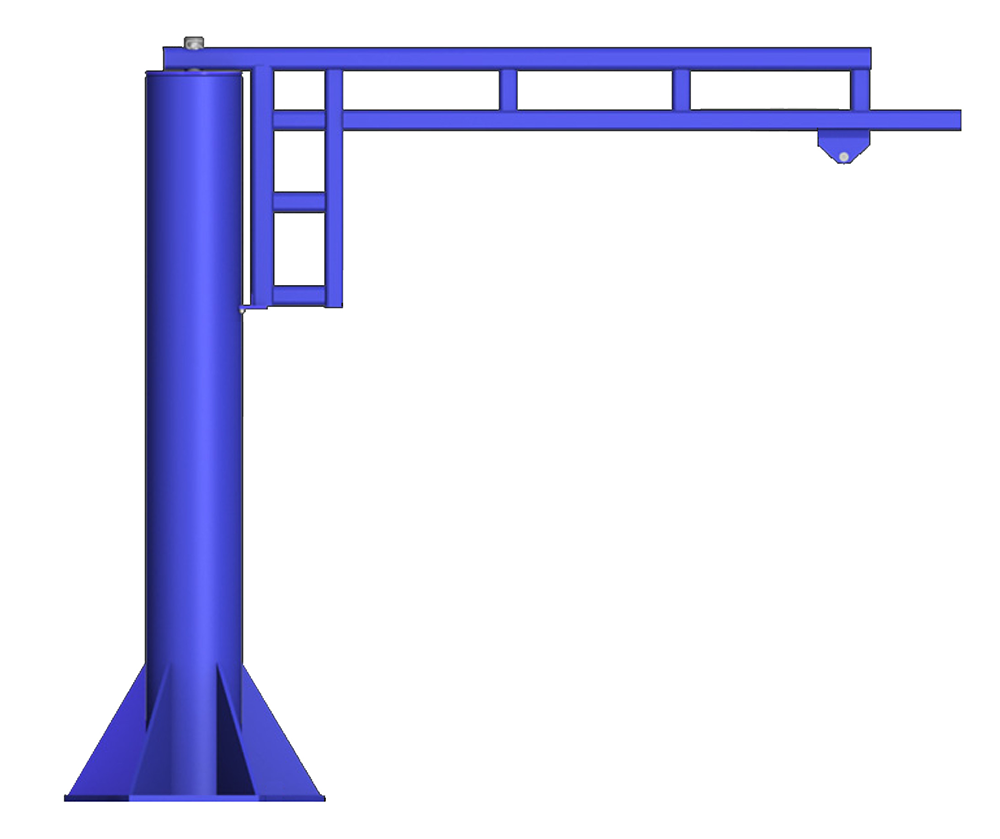

Gorbel Foundationless Free Standing Work Station Jib Crane, Capacity 500 lbs, Height 10 ft, Span 10 ft, Model WSJ360-NP6-500-10-10

Manufacturer: Gorbel

Availability: In stock

SKU: WSJ360-NP6-500-10-10

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Hoist Trolley *

Festoon Conductor Type *

Festoon Options - Electrical *

Festoon Options - Pneumatic *

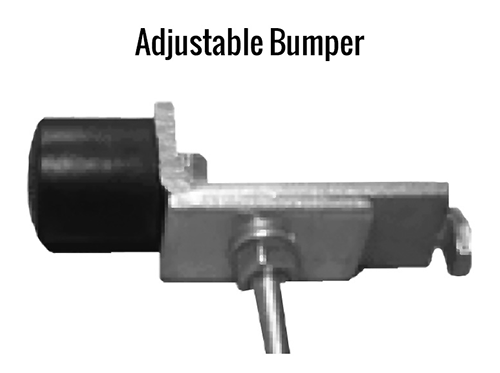

Crane Accessories

$3,747.81

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Work Station Jib Crane Brochure

Manual

Gorbel Work Station Jib Crane Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Product Specifications

Attribute name	Attribute value
Features	Capacity: 500 lbs. Overall Height (Crane Only): 11.30 ft. Height Under Boom (HUB): 10 ft. Span: 10 ft. Pipe Size: 12.75 in. Enclosed Track Series: 500 Overturning Moment: 7.14 K-Ft Axial Load: 1.15 Kips Anchor Bolt Load: 1.34 Kips Thickness at Anchor Bolt: 1 1/4 in. Hoist Trolley Included: 1 ea. Hoist Allowance: 75 lbs. Coverage: Circular 360 degree rotation Shipping Weight (Overall Weight): 654 lbs. NP6 Foundationless models are mounted to a 6 inch reinforced floor that require: Centered placement on a square area that is free from cracks, seams, and walls. Chemical anchor bolts that can withstand a minimum of 3,470 pounds of pull out force. Concrete pressure of 3,000 psi that contains wire mesh reinforcement. Designed to support tool balancers, air balancers, vacuum lifters, and hoists. Special foundations may be required; crane drawing will have foundation requirements. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
