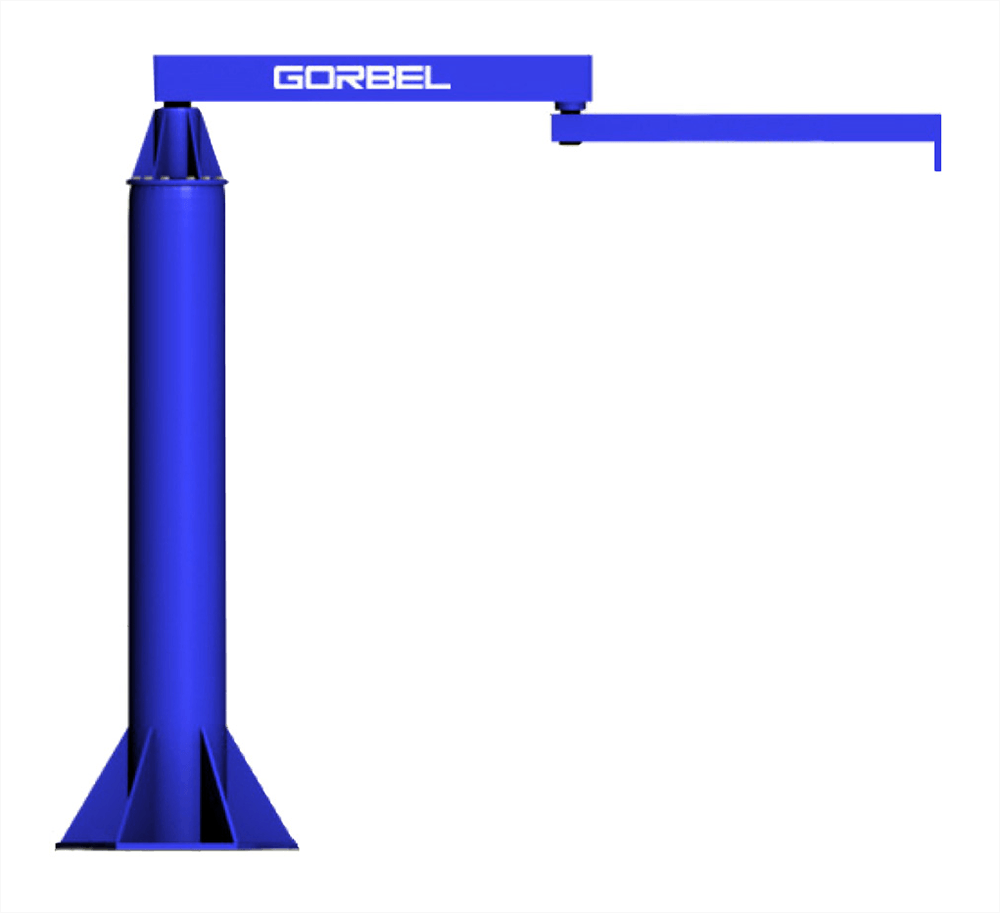

Gorbel Free Standing Articulating Jib Crane, 1/8-Ton, Ht. 14 ft, Span 14 ft

Manufacturer: Gorbel
SKU: AJ360-F-250-14-14
Manufacturer part number: AJ360-F-250-14-14
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
    $14,026.12
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Specifications
    Attribute nameAttribute value
    Features
    • Capacity: 250 lbs.
    • Span: 14 ft.
    • Height Under Boom (HUB): 14 ft.
    • Overall Height (Crane Only): 15.3854 ft.
    • Trolley Saddle Height: 13.7917 ft.
    • Pipe Size: 14 in.
    • Overturning Moment: 6.84 K-Ft
    • Axial Load: 1.8 Kips
    • Anchor Bolt Load: 0.82 Kips
    • Overall Deflection Criteria: Span / 150 = 1.12 in.
    • Bolt Circle Diameter: 30 in.
    • Hoist Allowance: 37.5 lbs.
    • Coverage: 360° Circular Rotation @ Pivot Points
    • Shipping Weight (Overall Weight): 1,447 lbs.
    • Offers effortless rotation and a consistent responsiveness when positioning loads in a work cell, into machines, through open doorways, around corners, or under obstructions.
    • Easy to rotate when load is on inner half of the boom near the mast.
    • Can be used with hook mounted lifting devices (electric, air, or vacuum).
    • Special foundations may be required; crane drawing will have foundation requirements.
    • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
    • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
    Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
    Country of OriginMade in the USA
