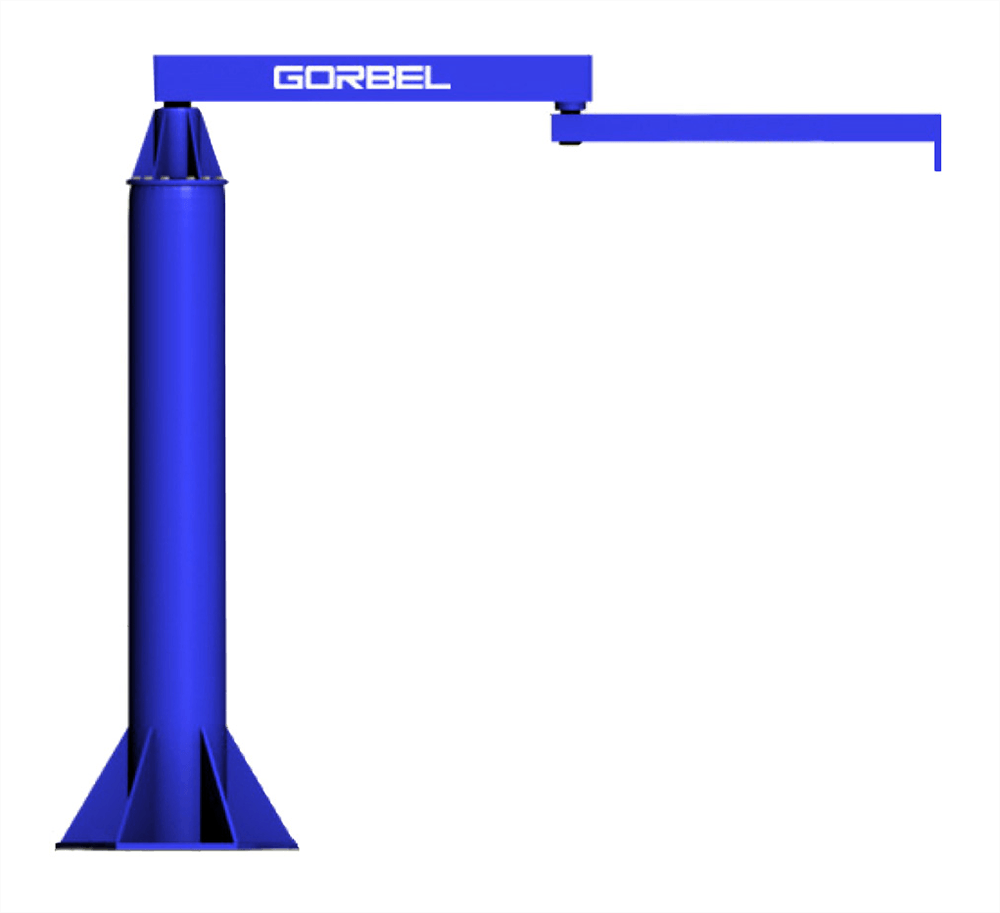

Gorbel Free Standing Articulating Jib Crane, 1/8-Ton, Ht. 8 ft, Span 10 ft

Manufacturer: Gorbel
SKU: AJ360-F-250-8-10
Manufacturer part number: AJ360-F-250-8-10
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
    $11,733.73
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Specifications
    Attribute nameAttribute value
    Features
    • Capacity: 250 lbs.
    • Span: 10 ft.
    • Height Under Boom (HUB): 8 ft.
    • Overall Height (Crane Only): 9.3854 ft.
    • Trolley Saddle Height: 7.7917 ft.
    • Pipe Size: 12.75 in.
    • Overturning Moment: 4.61 K-Ft
    • Axial Load: 1.11 Kips
    • Anchor Bolt Load: 0.78 Kips
    • Overall Deflection Criteria: Span / 150 = 0.8 in.
    • Bolt Circle Diameter: 24 in.
    • Hoist Allowance: 37.5 lbs.
    • Coverage: 360° Circular Rotation @ Pivot Points
    • Shipping Weight (Overall Weight): 757 lbs.
    • Offers effortless rotation and a consistent responsiveness when positioning loads in a work cell, into machines, through open doorways, around corners, or under obstructions.
    • Easy to rotate when load is on inner half of the boom near the mast.
    • Can be used with hook mounted lifting devices (electric, air, or vacuum).
    • Special foundations may be required; crane drawing will have foundation requirements.
    • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
    • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
    Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
    Country of OriginMade in the USA
