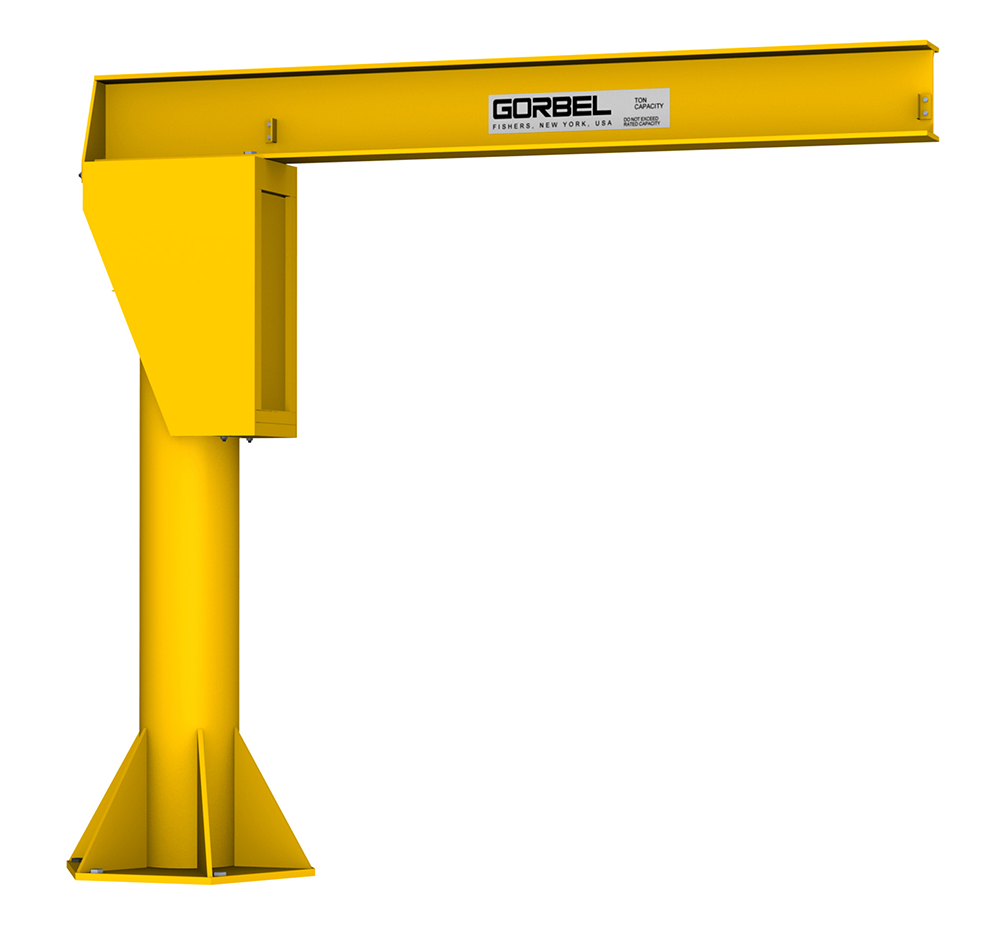

Gorbel Free Standing Jib Crane, 2-Ton, Ht. 12 ft, Span 14 ft

Manufacturer: Gorbel
SKU: FS300-16-W16-4000-12-14
Manufacturer part number: FS300-16-W16-4000-12-14
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
*
$10,019.06
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Capacity: 4,000 lbs.
  • Span: 14 ft.
  • Height Under Boom (HUB): 12 ft.
  • Overall Height (Crane Only): 13 ft. 4 1/8 in.
  • Foundation Width: 7 sq. ft.
  • Foundation Depth: 4 ft.
  • Pipe Size: 16 in. @ 62.58 lbs/ft.
  • Beam Size: W16 @ 45 lbs/ft.
  • Beam Flange Width: 7 1/6 in.
  • Overturning Moment: 77.21 K-Ft
  • Axial Load: 7.39 Kips
  • Hoist & Trolley Allowance: 600 lbs.
  • Anchor Bolt Load: 4.9 Kips/Bolt
  • Baseplate Thickness at Anchor Bolt: 1 1/4 in.
  • Coverage: 360° Circular Rotation
  • Shipping Weight (Overall Weight): 2,091 lbs.
  • Allows operators to position loads precisely, effortlessly, and efficiently.
  • Precision tapered roller bearings in top pivot and trunnion assemblies provide smooth operation and long life.
  • Full supporting triangular baseplate gussets are used instead of struts to minimize crane deflection and make positioning loads easier.
  • Independent head assembly installs separately for ease of installation.
  • In-head totally enclosed, bottom entry collector assembly allows the option of easily adding power to the hoist for 360° rotation at the time of or after purchase.

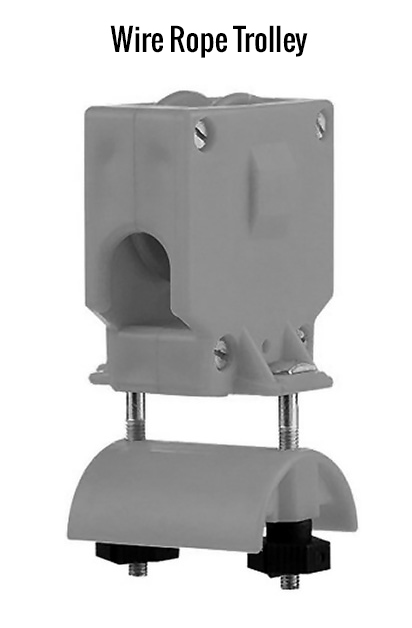

  • Festoon Options includes: Entry Collector or Air Swivel, Cable or Air Hose, Tagline Kit, and Wire Rope Trolleys.
  • Special foundations may be required; crane drawing will have foundation requirements.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
