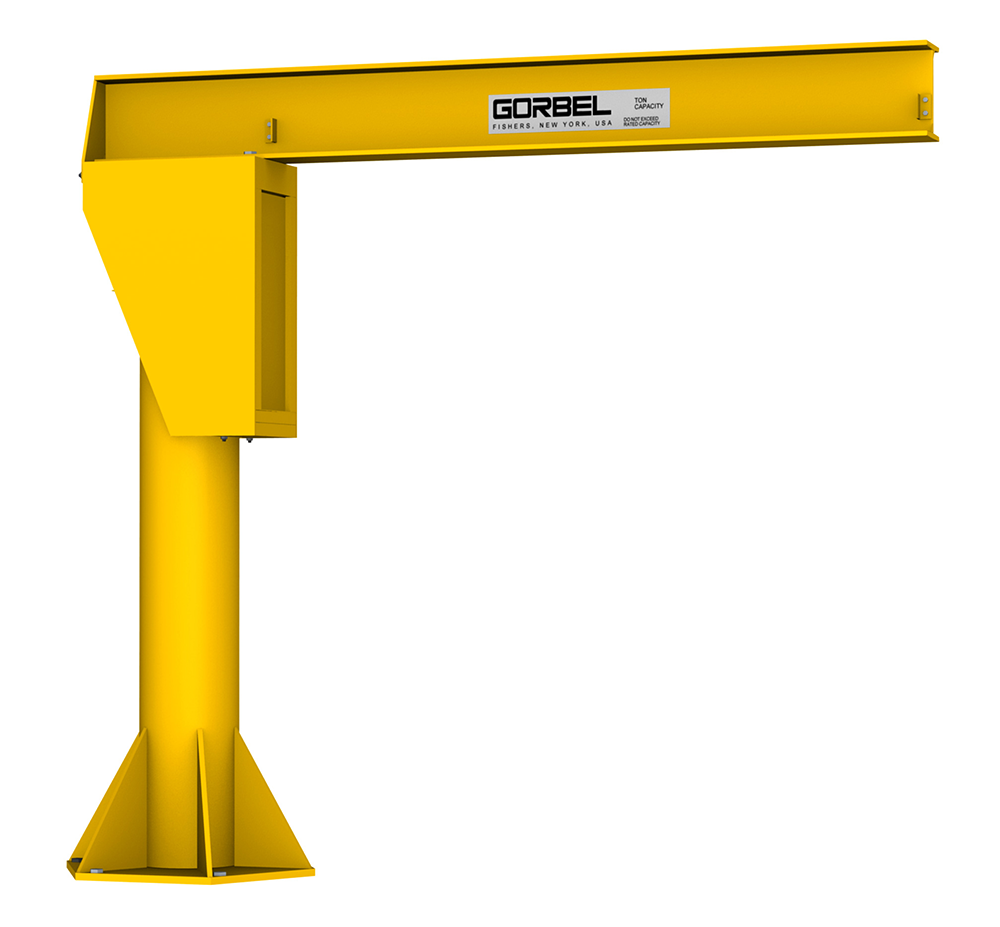

Gorbel Free Standing Jib Crane, 5-Ton, Ht. 14 ft, Span 18 ft

Manufacturer: Gorbel
SKU: FS300-30-W24-10000-14-18
Manufacturer part number: FS300-30-W24-10000-14-18
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
*
$32,194.47
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Capacity: 10,000 lbs.
  • Span: 18 ft.
  • Height Under Boom (HUB): 14 ft.
  • Overall Height (Crane Only): 16 ft. 1/8 in.
  • Foundation Width: 10 sq. ft.
  • Foundation Depth: 4 ft.
  • Pipe Size: 30 in. @ 157.53 lbs/ft.
  • Beam Size: W24 @ 84 lbs/ft
  • Beam Flange Width: 9 in.
  • Overturning Moment: 251.608 K-Ft
  • Axial Load: 18.76 Kips
  • Hoist & Trolley Allowance: 1,500 lbs.
  • Anchor Bolt Load: 9.1 Kips/Bolt
  • Baseplate Thickness at Anchor Bolt: 1 1/4 in.
  • Coverage: 360° Circular Rotation
  • Shipping Weight (Overall Weight): 5,491 lbs.
  • Allows operators to position loads precisely, effortlessly, and efficiently.
  • Precision tapered roller bearings in top pivot and trunnion assemblies provide smooth operation and long life.
  • Full supporting triangular baseplate gussets are used instead of struts to minimize crane deflection and make positioning loads easier.
  • Independent head assembly installs separately for ease of installation.
  • In-head totally enclosed, bottom entry collector assembly allows the option of easily adding power to the hoist for 360° rotation at the time of or after purchase.

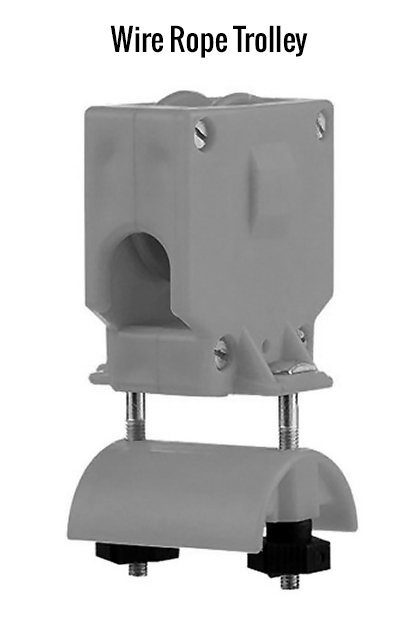

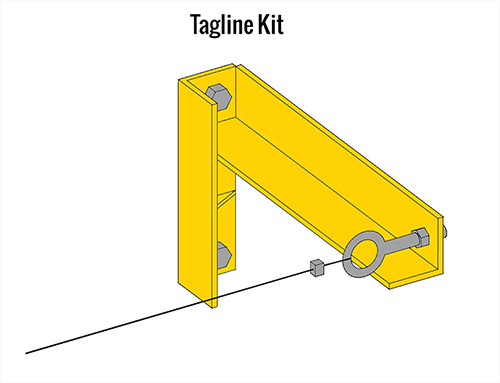

  • Festoon Options includes: Entry Collector or Air Swivel, Cable or Air Hose, Tagline Kit, and Wire Rope Trolleys.
  • Special foundations may be required; crane drawing will have foundation requirements.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
