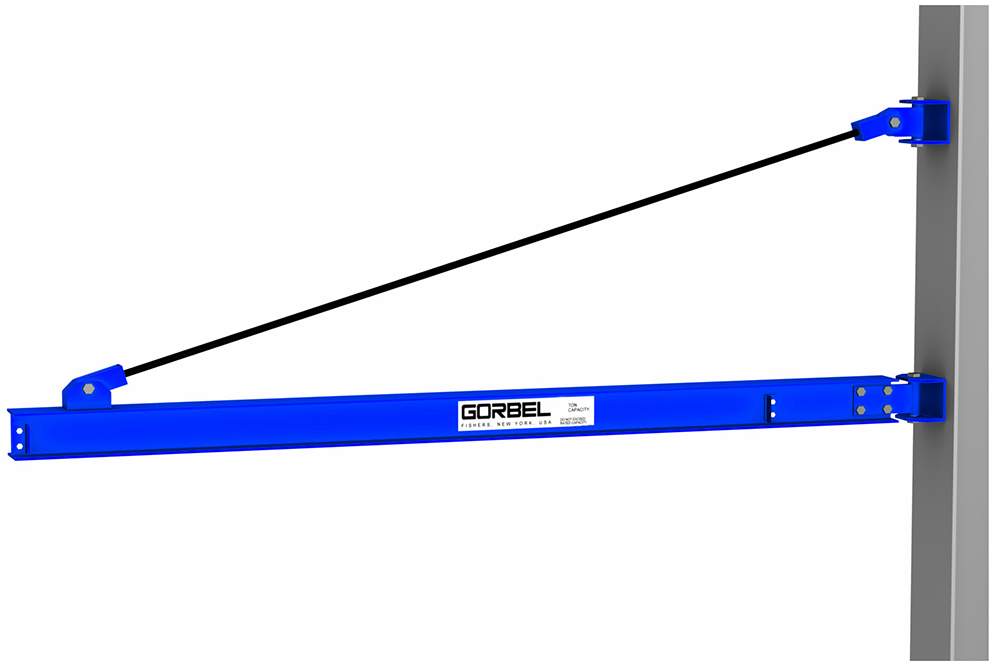

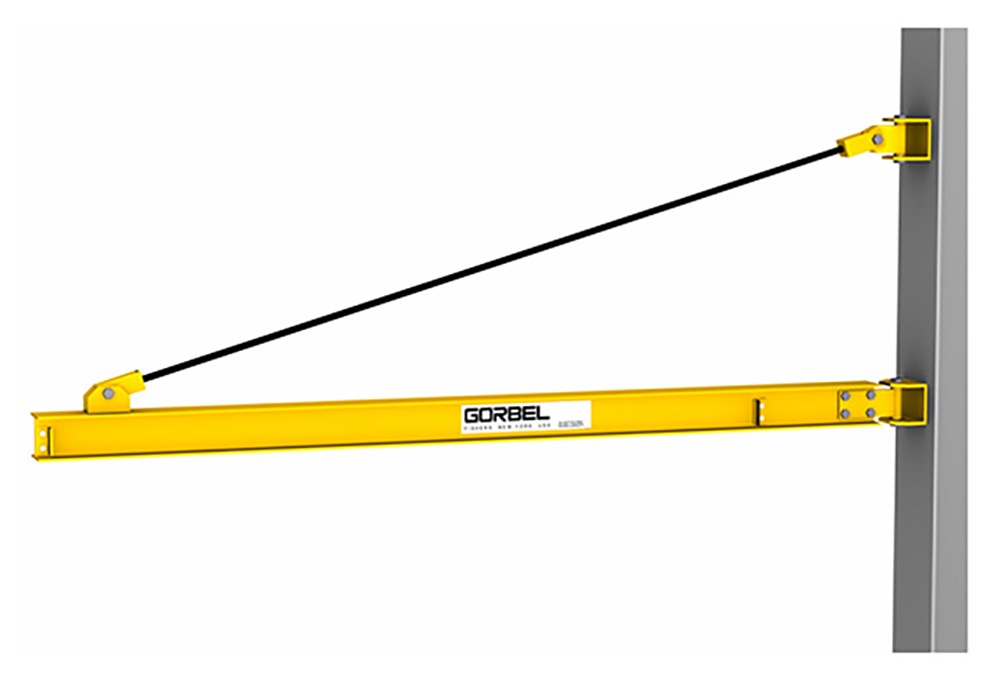

Gorbel Wall Bracket I-Beam Jib Crane, 2,000 lbs, Span 10 ft

Manufacturer: Gorbel
SKU: WB100-G1-10-W6
Manufacturer part number: WB100-G1-10-W6
Lead Time: typically ships in 10-13 business days
*
*
$860.00
Product Specifications
Features
  • Capacity: 2,000 lbs.
  • Span: 10 ft.
  • Beam Size: W6
  • Fitting Size: G1
  • Flange Width: 4 in.
  • Bracket Centers: 3 ft.
  • Overturning Moment: 25.8 K-Ft
  • Axial Load: 3.0353 Kips
  • Thrust and Pull: 8.6 Kips
  • Hoist Allowance: 300 lbs.
  • Tie Rod Diameter: 1 in.
  • Tie Rod Pitch: 8 unc
  • Tie Rod Length: 7 ft. 7.25 in.
  • Coverage: 200° Semi-Circular Rotation
  • The most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system.
  • Low dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioning.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of OriginMade in the USA
